مرشح تمرير النطاق 5G نطاق C من Norsat، BPF-C-1

  • Features a broad passband with low insertion loss, steep skirts that roll off quickly, and high stopband rejection.• Easily installed between the feed and LNB
  • Suitable for use with Norsat’s C-Band LNBs
  • Environmentally sealed and moisture resistant
    (IP66)

Norsat BPF-C-1C Band Pass Filter in Dubai, C Band Pass Filter Norsat BPF-C-1 in Dubai, Norsat BPF-C-1 Band Pass Filter Shop in Dubai, Norsat BPF-C-1 C-Band Pass Filter Seller in Dubai, Norsat BPF-C-1 Supplier, Norsat BPF-C-1C Band Pass Filter Supplier, C Band Pass Filter Norsat BPF-C-1 Supplier, C Band Pass Filter Norsat BPF-C-1 Price, Norsat BPF-C-1 Price, Norsat BPF-C-1C Band Pass Filter Price, Norsat BPF-C-1 For Sale, Norsat BPF-C-1C Band Pass Filter For Sale, C Band Pass Filter Norsat BPF-C-1 For Sale,

التصنيفات: , الوسوم: , , , , ,

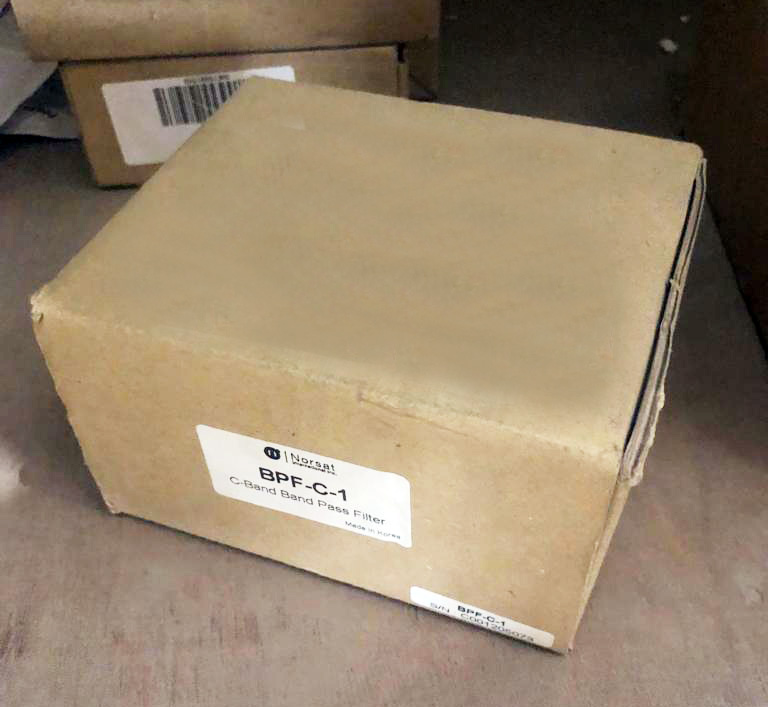

Norsat BPF C 1

Norsat C Band BPF C 1 Graph



Specification Value
Frequency Range 3.70 to 4.20 GHz
VSWR 1.4 : 1 max.
Insertion Loss in Band 0.5 dB max.
Rejection 25 dB min at 3.650 GHz and 4.250 GHz <br> 60 dB min at 3.550 GHz and 4.350 GHz <br> 70 dB min at 3.500 GHz and 4.400 GHz
Group Delay Variation within +/-0.5MHz 0.6 nsec
Waveguide Flange CPR-229G (input), CPR-229F (output)
Dimensions (L x W x H) 120 mm x 100 mm x 70 mm
Weight < 650 g
