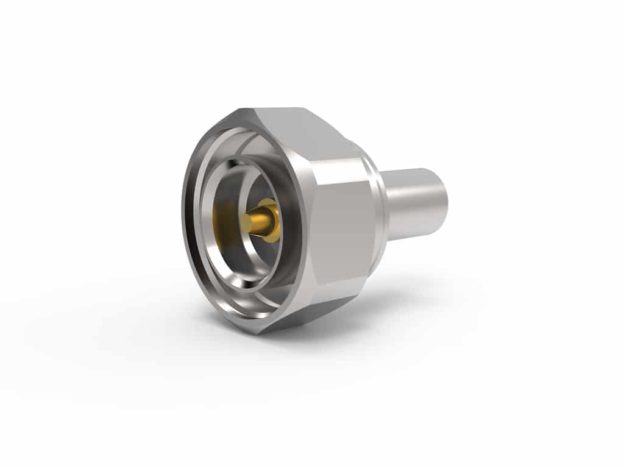

‏EZ‑400‑716M‑X، موصل 7/16 DIN‑ذكر (قابس)، مستقيم، إصبع نابض، انضغاط، نوع موصل لكابل LMR 400 متحد المحور

‏EZ‑400‑716M‑X، موصل 7/16 DIN‑ذكر (قابس)، مستقيم، إصبع نابض، انضغاط، نوع موصل لكابل LMR 400 متحد المحور

7/16 DIN male (plug) straight EZ connector for LMR-400, TCOM-400, and T-RAD-400-FR type cables. The EZ-400-716M-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts.

التصنيفات: , الوسوم: , ,

Its optimal and consistent termination is guaranteed by its no-braid trim design, which also prevents FOD. Surface contact is optimized, and current density is kept to a minimum, thanks to the BeCu pins’ design.

The EZ connectors are ideal for use in environments with extreme cold and high vibration, where the center conductor could potentially contract due to the strong spring force they provide.

The 7/16 DIN connectors are a threaded radio frequency (RF) connector frequently used in water-prone environments like broadcast and base stations. The 400 size cables can be connected directly to this male plug.

الوزن 0.126 كيلوجرام
الأبعاد 3.95 × 3.5 × 3.5 سنتيميتر
Brand

Times Microwave System
Interface

7/16 DIN
Gender

male (plug)
Orientation

straight
PIM Rating

N/A
Max Frequency (GHz)

3
VSWR Freq

<1.15:1
VSWR Frequency (GHz)

2.5
Inner Contact Attach

Spring Finger
Outer Contact Attach

Crimp
Body Finish

Alballoy
Pin Finish

Gold
