‏EZ‑400‑SM‑X، موصل SMA‑ذكر (قابس)، مستقيم، إصبع نابض، انضغاط، نوع موصل لكابل LMR 400 متحد المحور

‏EZ‑400‑SM‑X، موصل SMA‑ذكر (قابس)، مستقيم، إصبع نابض، انضغاط، نوع موصل لكابل LMR 400 متحد المحور

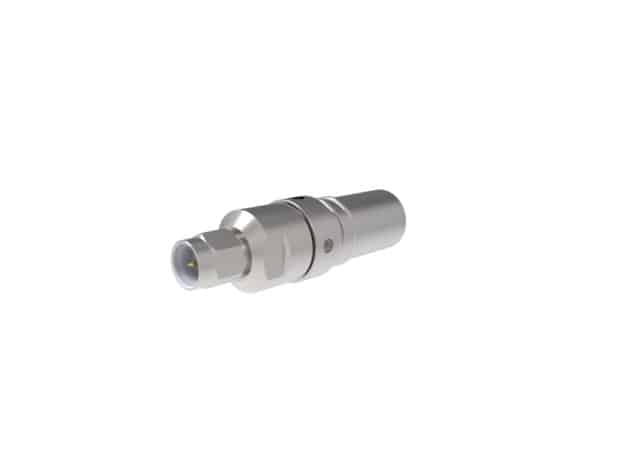

Type SMA, male (plug), straight, EZ style connector for LMR-400, TCOM-400, and T-RAD-400-FR type cables. The EZ-400-SM-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts.

التصنيفات: , الوسوم: , ,

Its optimal and consistent termination is guaranteed by its no-braid trim design, which also prevents FOD. Surface contact is optimized, and current density is kept to a minimum, thanks to the BeCu pins’ design.

The EZ connectors are ideal for use in environments with extreme cold and high-vibration, where the center conductor may contract due to the strong spring force provided by the connectors. The SMA connector is a low-profile, high-performance, threaded coaxial RF connection.

الوزن 0.02884 كيلوجرام
الأبعاد 4.685 × 1.5 × 1.5 سنتيميتر
Brand

Times Microwave System
Interface

SMA
Gender

male (plug)
Orientation

straight
Max Frequency (GHz)

8
VSWR Freq

<1.35:1
VSWR Frequency (GHz)

2.5
Inner Contact Attach

Spring Finger
Outer Contact Attach

Crimp
Body Finish

Bi-Metal
Pin Finish

Gold
