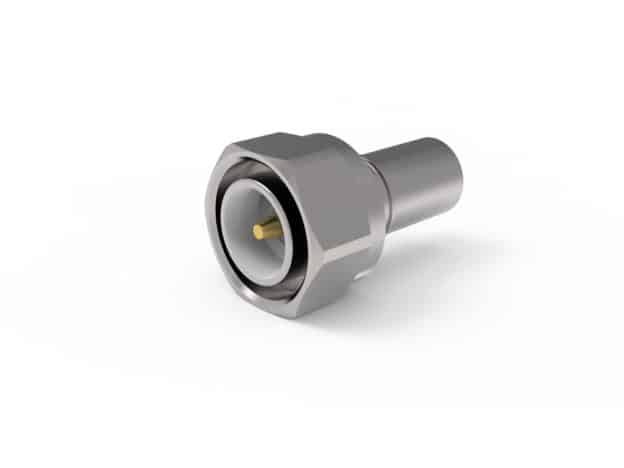

‏TC‑400‑4310M‑X، موصل 4.3/10 mini DIN‑ذكر (قابس)، مستقيم، لحام، انضغاط، نوع موصل لكابل LMR 400 متحد المحور

‏TC‑400‑4310M‑X، موصل 4.3/10 mini DIN‑ذكر (قابس)، مستقيم، لحام، انضغاط، نوع موصل لكابل LMR 400 متحد المحور

Type 4.3/10 mini DIN, male (plug), straight, TC style connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables.

التصنيفات: , الوسوم: , ,

The TC-400-4310M-X is ideal for use with stranded center conductors due to its solder-pin connector. Connectors with a 4.3/10 DIN offer the same rugged design as 7/16 connectors while taking up much less space and weighing less, enabling more compact and lightweight designs.

These layouts facilitate an easier installation and a very stable PIM performance. High conductivity, corrosion resistance, and durability are provided by the combination of silver-plated contacts and White Bronze-plated bodies.

الأبعاد 5.33 × 2.45 × 2.45 سنتيميتر
Brand

Times Microwave System
Interface

4.3/10 mini DIN
Gender

male (plug)
Orientation

straight
Max Frequency (GHz)

6
VSWR Freq

<1.30:1
VSWR Frequency (GHz)

2.5
Inner Contact Attach

Solder
Outer Contact Attach

Crimp
Body Finish

Alballoy
Pin Finish

Alballoy
