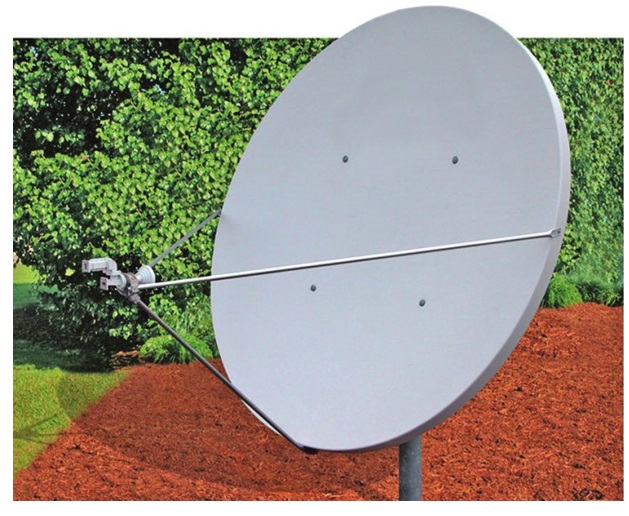

1.8m Rx/Tx Class I Antenna System

Skyware Global 1.8m Rx/Tx Class I Antenna, a robust commercial-grade solution designed to meet the highest performance standards. Here are the key features:

Key Features:

1. Rugged Construction:
   • Built for demanding applications, this antenna is crafted with durability in mind.
2. Thermoset-Molded Reflector:
   • The reflector is thermoset-molded, ensuring both strength and precise surface accuracy.
   • Integrated into the rear of the reflector is a network of support ribs, enhancing structural integrity and maintaining the crucial parabolic shape required for optimal transmit performance.
3. Heavy-Gauge Steel Az/El Mount:
   • The Az/El mount is constructed from heavy-gauge steel, providing a sturdy support for the reflector.
4. Secure Mast Attachment:
   • The Az/El mount securely attaches the antenna to any 114 mm (4.50”) O.D. mast, preventing slippage even in high winds.
5. Hot-Dip Galvanizing:
   • Standard hot-dip galvanizing is implemented to withstand extreme environmental conditions, ensuring longevity and resilience.





Effective Aperture:

• C-Band: 1.8m (71in)
• Ku-Band: 1.8m (71in)
• Extended Band: 1.8m (71in)

Operating Frequency:

• C-Band: TX – 5.85-6.725 GHz, RX – 3.4 GHz-4.2 GHz
• Ku-Band: TX – 13.75-14.5 GHz, RX – 10.7 GHz-12.75 GHz
• Extended-Band: TX – 12.75-14.5 GHz, RX – 10.7 GHz-11.7 GHz

Polarization:

• C-Band: Linear or Orthogonal
• Ku-Band: Linear or Orthogonal
• Extended-Band: Linear or Orthogonal

Gain (±0.2 dBi):

• C-Band: TX – 39.3 [email protected] GHz, RX – 35.4 [email protected] GHz
• Ku-Band: TX – 46.8 [email protected] GHz, RX – 45.3 dBi@12 GHz
• Extended-Band: TX – 46.8 [email protected] GHz, RX – 45.3 dBi@12 GHz

3dB Beamwidth:

• C-Band: TX – [email protected] GHz, RX – [email protected] GHz
• Ku-Band: TX – [email protected] GHz, RX – 1.0@12 GHz
• Extended-Band: TX – [email protected] GHz, RX – 1.0@12 GHz

Sidelobe Envelope (Tx, Co-Pol dBi):

• Mainbeam< q < 20°: 29-25 log q dBi
• 20° < q < 26.3°: -3.5 dBi
• 26.3° < q < 48°: 32-25 log q dBi
• 48° < q < 180°: -10

Antenna Cross-Polarization:

• 30 dB on Axis

Antenna Noise Temperature:

• C-Band: 10°EL@41K; 20°@36K; 30°@33K
• Ku-Band: 10°EL@43K; 20°@28K; 30°@23K
• Extended-Band: 10°EL@43K; 20°@28K; 30°@23K

VSWR:

• C-Band: TX – 1.3:1, RX – 1.4:1
• Ku-Band: TX – 1.3:1, RX – 1.5:1
• Extended Band: TX – 1.3:1, RX – 1.5:1

Isolation Port to Port:

• C-Band: TX – 60 dB, RX – 60 dB
• Ku-Band: TX – 80 dB, RX – 35 dB
• Extended-Band: TX – 80 dB, RX – 35 dB

Feed Interface:

• C-Band: TX – CPR-137 or Type N, RX – CPR-229
• Ku-Band: TX – WR75 Flat Flange, RX – WR75 Flat Flange
• Extended-Band: TX – WR75 Flat Flange, RX – WR75 Flat Flange



Mechanical Performance:

• Reflector Material:
  • Glass Fiber Reinforced Composite
• Antenna Optics:
  • One-Piece Offset Feed Prime Focus
• Mount Type:
  • Elevation Over Azimuth
• Elevation Adjustment Range:
  • 8°-90° Continuous Fine Adjustment (Screw)
• Azimuth Adjustment Range:
  • 360° Continuous ± 10° Fine Adjustment (Cam)
• Mast Pipe Interface:
  • 4.5” (114mm) Diameter

Environmental Performance:

• Wind Loading:
  • Operational: 45mph (72km/h)
  • Functional Survival: 80mph (128km/h)
  • Ultimate Survival: 125mph (200km/h)
• Operational Temperature:
  • -40°C to +60°C
• Survival Temperature:
  • -50°C to +80°C
• Humidity:
  • 0 to 100% (Condensing)
• Atmosphere:
  • Standard Hardware 720 Hrs SST Requirements (ASTM B-117)
• Solar Radiation:
  • 360 BTU/h/ft2
• Shock and Vibration:
  • As Encountered during Shipping and handling
