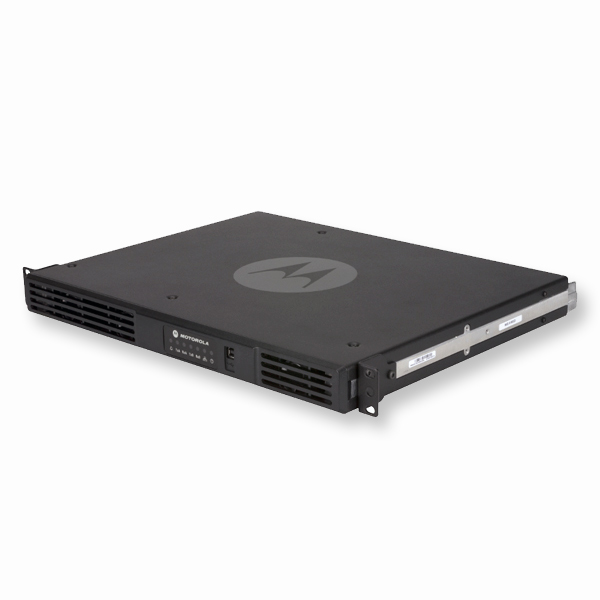

motorola slr5000 repeater (1)

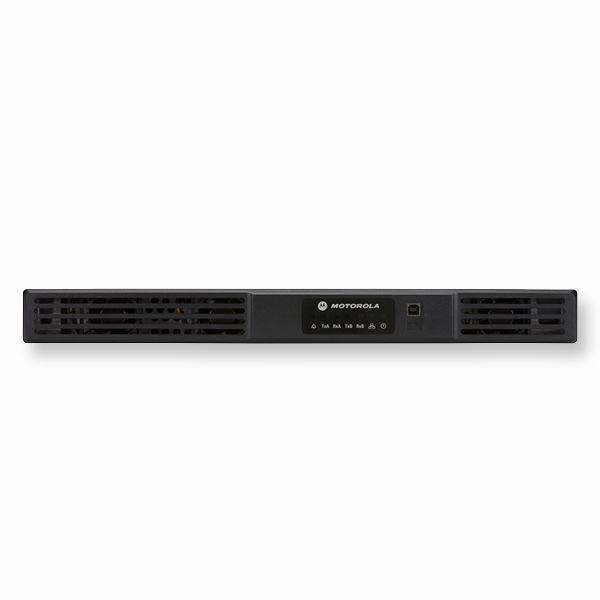

SLR 5500 Two-Way Radio Repeater, Motorola

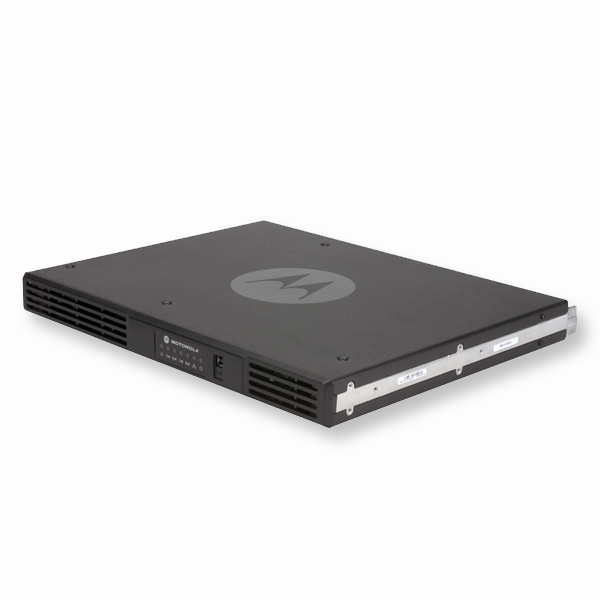

SLR 5500 Two-Way Radio Repeater, Motorola
SLR 5500 Two-Way Radio Repeater, Motorola
SLR 5500 Two-Way Radio Repeater, Motorola
SLR 5500 Two-Way Radio Repeater, Motorola
  1. motorola slr5000 repeater (1)
  2. SLR 5500 Two-Way Radio Repeater, Motorola
  3. SLR 5500 Two-Way Radio Repeater, Motorola
  4. SLR 5500 Two-Way Radio Repeater, Motorola
  5. SLR 5500 Two-Way Radio Repeater, Motorola
  6. SLR 5500 Two-Way Radio Repeater, Motorola

SLR 5500 Two-Way Radio Repeater, Motorola

  • The Motorola SLR 5000 is a high-performance radio repeater designed to enhance communication range and coverage in professional two-way radio systems.
  • It offers a wide frequency range and channel spacing options, allowing for flexible configuration to meet specific communication needs in various frequency bands.
  • With features like advanced selectivity, intermodulation rejection, and low audio distortion, the SLR 5000 ensures excellent audio quality and reliable performance in challenging RF environments, making it an ideal choice for businesses and organizations that require robust and efficient communication solutions.
Categories: , , ,

Two-Way Radio Repeater SLR 5500 – Motorola Solutions

The Two-Way Radio Repeater SLR 5500 from Motorola Solutions is a powerful and versatile solution designed to extend the coverage of your two-way radio communication system. With its advanced features and robust construction, it ensures reliable communication in various industries.

Key Features:

  1. Enhanced Coverage: Extend communication range and fill coverage gaps.
  2. Digital Technology: Supports both digital and analog communications.
  3. Flexible Configuration: Operates in multiple modes to adapt to your needs.
  4. Intuitive Operation: User-friendly interface with a color display and programmable buttons.
  5. Robust and Reliable: Rugged construction with IP65-rated protection against dust and water.

Technical Specifications:

Feature Specification
Frequency Range VHF (136-174 MHz) or UHF (403-527 MHz)
Power Output 1-50W (adjustable)
Channel Capacity Up to 64 channels
Dimensions 44mm (H) x 483mm (W) x 369mm (D)
Weight 10.9 kg



Applications:

  • Public Safety
  • Transportation and Logistics
  • Manufacturing and Industrial
  • Hospitality and Retail



The Two-Way Radio Repeater SLR 5500 is an ideal choice to enhance communication within your organization. It provides extended coverage, supports digital technology, offers flexible configuration options, and ensures reliable performance in demanding environments.



General Specifications

VHF UHF UHF2
Frequency Range 136-174 MHz 400-470 MHz 450-512 MHz
Channel Capacity 64 64 64
RF Output Power 1-50 W 1-50 W 1-50 W
Dimensions (H x W x D) 1.75 x 19 x 14.6 in (44 x 483 x 370 mm) 1.75 x 19 x 14.6 in (44 x 483 x 370 mm) 1.75 x 19 x 14.6 in (44 x 483 x 370 mm)
Weight 19 lbs (8.6 kg) 19 lbs (8.6 kg) 19 lbs (8.6 kg)
Input Voltage (AC) 100-240 Vac, 47-63 Hz 100-240 Vac, 47-63 Hz 100-240 Vac, 47-63 Hz
Current (standby), 110 / 240 V 0.25 A / 0.18 A 0.25 A / 0.18 A 0.25 A / 0.18 A
Current (transmitting), 110 / 240 V 1.5 A / 0.9 A 1.5 A / 0.9 A 1.5 A / 0.9 A
Input Voltage (DC) 11.0-14.4 Vdc 11.0-14.4 Vdc 11.0-14.4 Vdc
Current (standby) 0.7 A 0.7 A 0.7 A
Current (transmitting) 9.5 A 9.5 A 9.5 A
Operating Temperature Range -22 to +140 °F (-30 to +60 °C) -22 to +140 °F (-30 to +60 °C) -22 to +140 °F (-30 to +60 °C)
Humidity RH of 90%, non-condensing at 50 °C (122 °F) RH of 90%, non-condensing at 50 °C (122 °F) RH of 90%, non-condensing at 50 °C (122 °F)
Max Duty Cycle 100% 100% 100%



RECEIVER

VHF UHF UHF2
Frequency Range 136-174 MHz 400-470 MHz 450-512 MHz
Channel Spacing 25*/12.5 kHz 25*/12.5 kHz 25*/12.5 kHz
Frequency Stability ±0.5 ppm ±0.5 ppm ±0.5 ppm
Sensitivity, 12dB SINAD 0.22 uV 0.22 uV 0.22 uV
Sensitivity, 5% BER 0.22 uV 0.22 uV 0.22 uV
Selectivity (TIA603E), 25*/12.5 kHz 83 / 55 dB 80 / 55 dB 80 / 55 dB
Selectivity (ETSI), 25*/12.5 kHz 83 / 68 dB 80 / 68 dB 80 / 68 dB
Selectivity (ETSI), 25*/12.5 kHz 70 / 63 dB – –
Intermodulation Rejection (TIA603E/ETSI) 82 / 73 dB 82 / 73 dB 82 / 73 dB
Spurious Rejection (TIA603E/ETSI) 95 / 90 dB 95 / 90 dB 95 / 90 dB
Audio Distortion < 2% < 2% < 2%
Hum and Noise, 25*/12.5 kHz -50 / -45 dB -50 / -45 dB -50 / -45 dB



TRANSMITTER

VHF UHF UHF2
Frequency Range 136-174 MHz 400-470 MHz 450-512 MHz
RF Output Power 1-50 W 1-50 W 1-50 W
Max Duty Cycle 100% 100% 100%
Channel Spacing 25*/12.5 kHz 25*/12.5 kHz 25*/12.5 kHz
Frequency Stability 0.5 ppm 0.5 ppm 0.5 ppm
Intermodulation Attenuation 40 dB 40 dB 40 dB
Adjacent Channel Power (TIA603E), 25*/12.5 kHz 78 / 62 dB 78 / 62 dB 78 / 62 dB
Adjacent Channel Power (ETSI), 25*/12.5 kHz 78 / 62 dB 78 / 62 dB 78 / 62 dB
Conducted Spurious Emissions -36 dBm < 1 GHz, -30 dBm > 1 GHz -36 dBm < 1 GHz, -30 dBm > 1 GHz -36 dBm < 1 GHz, -30 dBm > 1 GHz
Modulation Fidelity (4FSK) FSK Error 5%, FSK Magnitude 1% FSK Error 5%, FSK Magnitude 1% FSK Error 5%, FSK Magnitude 1%
Audio Response TIA603E TIA603E TIA603E
Audio Distortion < 1% < 1% < 1%
Hum and Noise, 25*/12.5 kHz -50 / -45 dB -50 / -45 dB -50 / -45 dB
Rated System Deviation, 25*/12.5 kHz ±5.0 / ±2.5 kHz ±5.0 / ±2.5 kHz ±5.0 / ±2.5 kHz
