Agilis 20W KA Band (BUC) COMMANT-UP CONSTION ، ALB220 Series

Feed Mountable Design
Input and Forward Power Detection
Monitoring and Control via Serial and Ethernet Ports
Fault Identification and Alarm Generation
LED Indicators for Status and Alarms
Automatic Gain Control Across Operating Temperatures
Wide DC Input Range: 21 to 60 VDC
Wide Operating Temperature Range: -40°C to +60°C
IP67 Weatherproof Enclosure
RoHS Compliant

التصنيفات: Brand, Ka Band, VSAT الوسوم: Agilis 20W Ka Band (BUC) Block-Up ConverterPrice, Agilis 20W Ka Band (BUC) Block-Up ConverterSupplier, Agilis 20W Ka BandPrice, Agilis 20W Ka BandSupplier, Agilis Ka Band BUC 20W Supplier, Ka Band BUC AgilisSupplier العلامة التجارية: Agilis

الوصف

Engineered for direct integration with the feedhorn, this unit is perfectly suited for mobile and satellite uplink systems. Its advanced thermal design delivers outstanding power efficiency, durability, and dependable performance even in extreme outdoor conditions. Designed for hassle-free installation, it also supports seamless operation in 1+1 redundancy setups when paired with an external redundancy control unit.

Quality Assurance
Every unit undergoes comprehensive and rigorous quality inspections, along with a carefully designed Environmental Stress Screening (ESS) process to guarantee reliable performance in demanding outdoor environments. Each device is also tested for water ingress to ensure complete sealing and weatherproof integrity.

Reliability
Proven performance in real-world extreme conditions—Agilis ODUs are built to endure temperatures from -40°C to +60°C with full operational reliability, even in environments with 100% humidity.

Technical Specifications

RF Specifications

Parameter	Specification
Transmit Frequency Band	Band 1: 27.5 – 28.5 GHz Band 2: 28.25 – 29.25 GHz Band 3: 29.0 – 30.0 GHz
IF Frequency	950 – 1950 MHz (All Bands)
LO Frequency (Switchable)	Band 1: 26.55 GHz Band 2: 27.30 GHz Band 3: 28.05 GHz
Output Power (Psat)	20W 43.0 dBm min (< 55°C) 42.0 dBm min (≥ 55°C)
Output Power (Plinear)	41.0 dBm (12.5W)
Conversion Gain	70 dB min @ Plinear
Small Signal Gain	74 dB min
Gain Flatness	4.0 dB p-p max (within band) 2.5 dB p-p max (over 250 MHz) 1.5 dB p-p max (over 100 MHz) 1.0 dB p-p max (over 40 MHz)
Gain Variation (Temp.)	±1.5 dB at constant frequency over operating temperature
Spectral Regrowth (Plin 1)	-25 dBc max @ 2 dB BO, 8PSK, 1.5x SR (Commercial satellite)
Spectral Regrowth (Plin 2)	-30 dBc max @ 3 dB BO, QPSK @ 1.5x SR and OQPSK @ 1.0x SR (MIL-STD-188-164C, one-carrier)
Intermodulation (Plin 3)	-25 dBc max @ 3 dB BO, 2-carrier combined power (MIL-STD-188-164C, two-carrier)
Spurious	-60 dBc typ
Phase Noise	-95 dBc/Hz max @ 100 kHz offset -90 dBc/Hz max @ 10 kHz offset -80 dBc/Hz max @ 1 kHz offset
VSWR	1.5:1 max @ input 1.25:1 max @ output

DC Power Supply

Parameter	Specification
Prime Power	21 to 60 VDC
Power Consumption	220 VA max @ Psat 170 VA typical @ Plinear

Interface

Port	Specification
IF Input	N-Type Female, 50Ω
RF Output	WR28, Grooved

Reference

Parameter	Specification
Source	External
Frequency	10 MHz
Power Level	-5 dBm to +5 dBm
Phase Noise	-160 dBc/Hz max @ 100 kHz offset -155 dBc/Hz max @ 10 kHz offset -150 dBc/Hz max @ 1 kHz offset

Monitor & Control

Feature	Specification
Temperature Monitoring	BUC Temperature Monitoring
Status Alarm	LED Indicator for Alarm Status
LO Alarm	LO Unlock Alarm
IF Input Power	IF Input Power Detection
RF Output Power	RF Forward Power Detection
Gain Control	Adjustable up to 20 dB in 0.25 dB steps
Mute Function	RF Output Mute Capability
OpenBMIP	OpenBMIP Ready
Protections	Over/Under Voltage Reverse Voltage Over Current In-rush Current
Communication Ports	Serial: RS232 / RS485 / RS422 Ethernet: SNMP & HTTP
Redundancy Support	Redundancy-Ready (with external controller unit)

Environmental Specifications

Parameter	Specification
Operating Temperature	-40°C to +60°C
Relative Humidity	Up to 100%
Weatherproof Rating	IP67
Operating Environment (Land)	ETSI EN 300 019-2-4 Class T4.1
Operating Environment (Sea)	ETSI EN 300 019-2-6 Class T6.1

Mechanical Specifications

Parameter	Specification

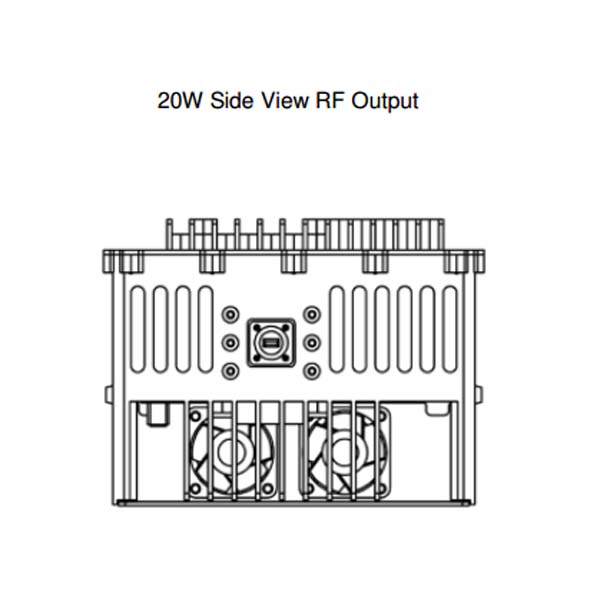

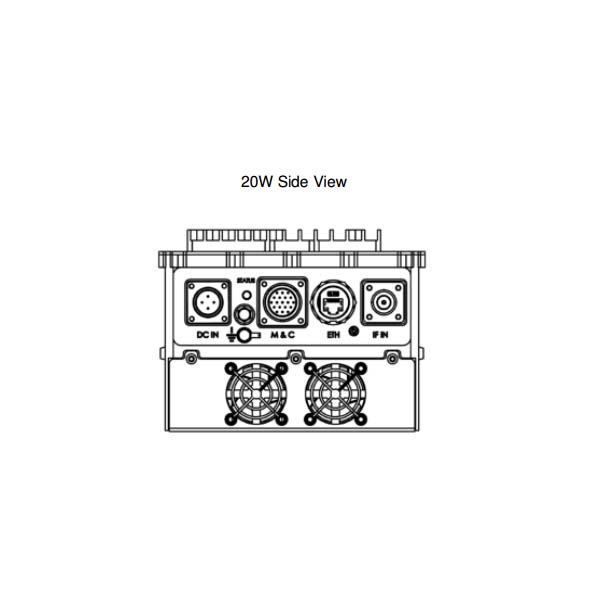

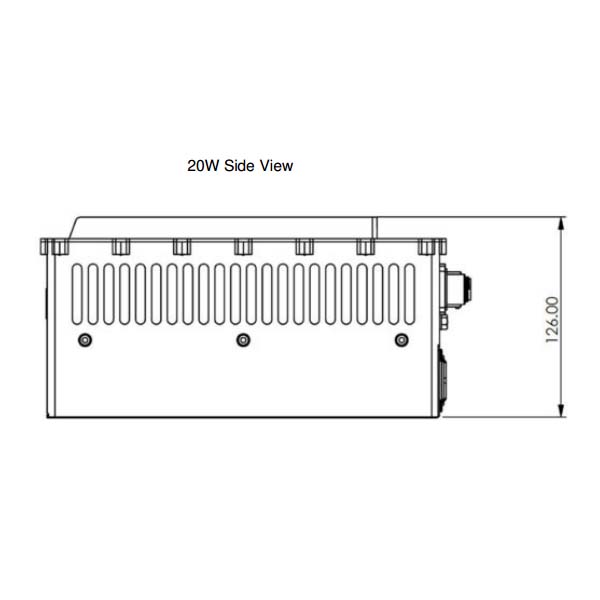

Dimensions	L248 x W160 x H126 mm L9.7” x W6.3” x H5.0”
Weight	4.1 kg / 9 lbs

20W Ka Band Block-Up Converter

Standard Part List – Standalone Configuration

Item	Product Name	Option	Part Number	Qty	Description
1	BUC	ALB220XGN-20M	01	1	BUC (Block-Up Converter)
2	Prime Power Input Cable DC	–	E0004881-0001	1	C/A DC 12-4S to Unterminated, 3 meters
3	Cable M&C RS232 / RS485 / RS422	–	E0004882-0001	1	C/A M&C Serial 14-19P to DB9 (F) x3, 3 meters
4	Connector ETH	–	P0006973-0001	1	Connector Ethernet RJ45, Metal Screw Thread, IP67 Rated
5	Converter RS485 / RS422	–	6103480008	1	USB to RS485/RS422 Converter
6	Mounting Screw	–	6308840310	4	Hex Screw M3x10 with Split & Flat Washer
