Parameter | Specifications |
---|---|

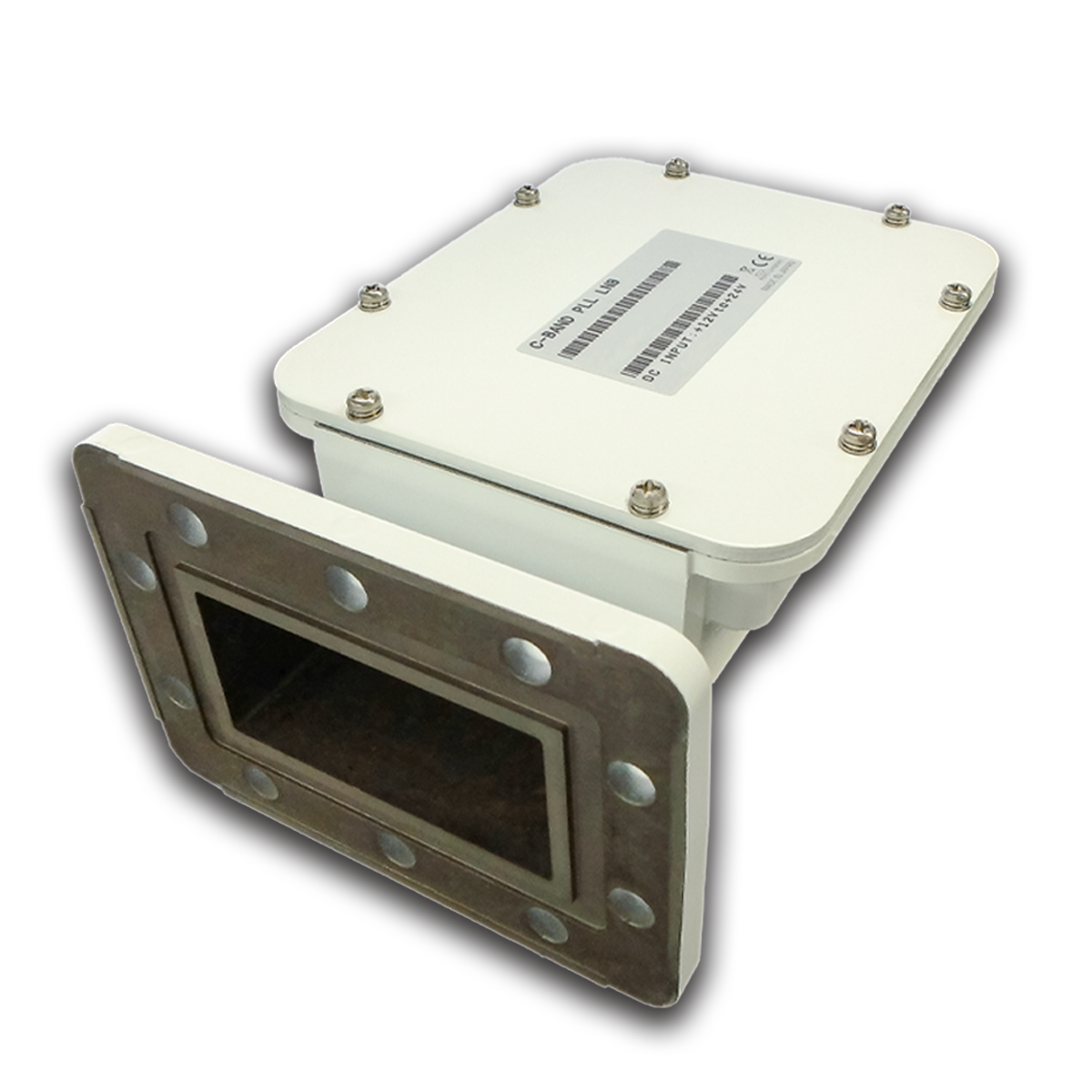

RF Input Interface | – Waveguide, CPR229 (with Groove) |
IF Output Interface | – Coaxial Connector, N-type Female (50 Ω) |
– Coaxial Connector, F-type Female (75 Ω) | |
RF Frequency | – RF Frequency: 3.4 to 4.2 GHz |
IF Frequency | – IF Frequency: 950 to 1,750 MHz |
LO Frequency | – LO Frequency: 5.15 GHz |
Linear Gain | – Linear Gain: 67 dB typ., 59 dB min. @ +25 ℃ |
Noise Temperature(NT) | – Noise Temperature(NT): 15 K typ., 30 K max. @ +25 ℃ |
Input Power Voltage Requirement | – +24 VDC (+12 to +24 VDC) |
Current Consumption | – Current Consumption: 350 mA max. |
Operating Temperature Range | – Operating Temperature Range: -40 to +60 ℃ |
Waterproof / Dustproof (IP-code) | – Waterproof / Dustproof (IP-code): IP67 |
Weight | – Weight: 670 g |
Dimensions | – Dimensions (LxWxH): 144.5 x 98.4 x 69.9 mm |
(w/o Interfaces & Screws) |
Frequency Organization
Parameter | Specifications |
---|---|
RF Frequency | 3.4 to 4.2 GHz |
IF Frequency | 950 to 1,750 MHz |
LO Frequency | 5.15 GHz |
Low Noise Performance
Parameter | Specifications |
---|---|
Noise Temperature | 15 K typ. |
LO Frequency Stability Line-up
Reference-type | LO Frequency Stability |
---|---|
H-type | +/- 10 ppm (+/- 50 kHz typ.) |
S-type | +/- 3 ppm (+/- 15 kHz typ.) |
U-type | +/- 1 ppm (+/- 5 kHz typ.) |
V-type | +/- 0.3 ppm (+/- 1.5 kHz typ.) |
Small Size & Light Weight
Parameter | Specifications |
---|---|
Weight | 670 g |
Others
- RoHS Compliance
Series Line-up
Model No. | RF Frequency | Reference-type | LO Frequency Stability | IF Connector | |
---|---|---|---|---|---|
NJS8496HF | 3.4 to 4.2 GHz | Internal Ref. | +/- 10 ppm | F-type (75Ω) | |
NJS8496HN | 3.4 to 4.2 GHz | Internal Ref. | (+/- 50 kHz typ.) | N-type (50Ω) | |
NJS8496SF | 3.4 to 4.2 GHz | Internal Ref. | +/- 3 ppm | F-type (75Ω) | |
NJS8496SN | 3.4 to 4.2 GHz | Internal Ref. | (+/- 15 kHz typ.) | N-type (50Ω) | |
NJS8496UF | 3.4 to 4.2 GHz | Internal Ref. | +/- 1 ppm | F-type (75Ω) | |
NJS8496UN | 3.4 to 4.2 GHz | Internal Ref. | (+/- 5 kHz typ.) | N-type (50Ω) | |
NJS8496VF | 3.4 to 4.2 GHz | Internal Ref. | +/- 0.3 ppm | F-type (75Ω) | |
NJS8496VN | 3.4 to 4.2 GHz | Internal Ref. | (+/- 1.5 kHz typ.) |
|
|
