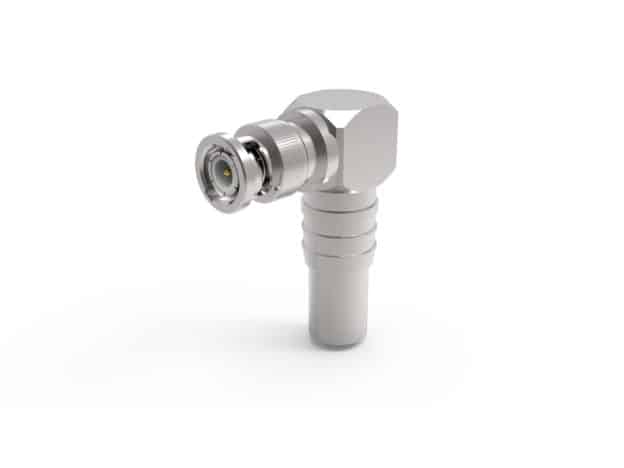

EZ‑400‑BM‑RA‑X، موصل BNC‑ذكر (قابس)، زاوية قائمة، إصبع نابض، كلبس، نوع موصل لكابل LMR 400 متحد المحور
The EZ-400-BM-RA-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination.
متوفر في المخزون (يمكن الحجز بالطلب المسبق)
Surface contact is optimized, and current density is kept to a minimum, thanks to the BeCu pins’ design. The EZ connectors are ideal for use in environments with extreme cold and high-vibration, where the center conductor may contract due to the strong spring force provided by the connectors.
There are many different types of RG and industry-standard coaxial cables, and BNC connectors can accommodate them all. Quickly connect and disconnect with secure locking is possible with its bayonet-style coupling mechanism. Just a quarter turn of the coupling nut is all it takes to get them to mate. For cables of size 400, this is a male (plug) right-angle connector.
| الوزن | 0.044 كيلوجرام |
|---|---|
| الأبعاد | 4.8 × 3.35 × 3.35 سنتيميتر |
| Brand | Times Microwave System |
| Interface | BNC |
| Gender | male (plug) |
| Orientation | right angle |
| PIM Rating | N/A |
| Max Frequency (GHz) | 4 |
| VSWR Freq | <1.35:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Spring Finger |
| Outer Contact Attach | Clamp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
