‏TC‑400‑NFC‑BH‑A، موصل N‑أنثى (مقبس)، مستقيم، لحام، كلبس، نوع موصل لكابل LMR 400 متحد المحور

Name: ‏TC‑400‑NFC‑BH‑A، موصل N‑أنثى (مقبس)، مستقيم، لحام، كلبس، نوع موصل لكابل LMR 400 متحد المحور
SKU: 10413
Availability: InStock

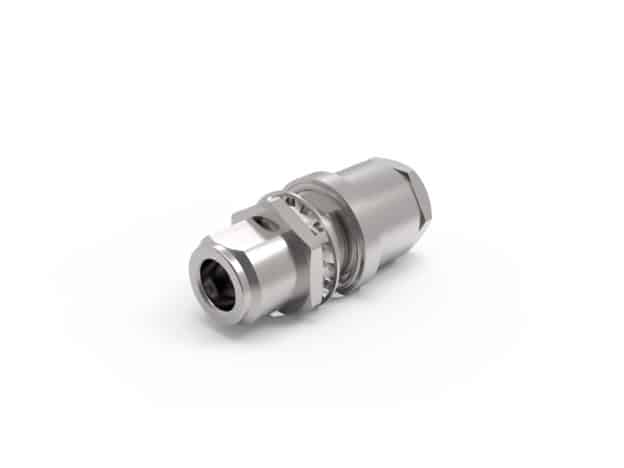

Type N, female (jack), straight, TC style connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables. The TC-400-NFC-BH-A features a solder-pin connector and is a perfect option for stranded center conductors. The Type N is a durable, weatherproof, medium-size RF connector designed for systems where excellent RF and mechanical performance is critical. They feature a threaded coupling mechanism and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification.

متوفر في المخزون (يمكن الحجز بالطلب المسبق)

التصنيفات: Connectors, Male الوسوم: LMR 400 connetor, N Connector, TC-400-NFC-BH-A

الوصف
معلومات إضافية

The Type N is an all-weather RF connector of medium size and is ideal for applications where high standards of RF and mechanical performance are required. They’re threaded to couple securely and are compatible with any N-Type connector meeting the MIL-C-39012 standard.

الوزن	0.0658 كيلوجرام
الأبعاد	4.6 × 2.24 × 2.24 سنتيميتر
Brand	Times Microwave System
Interface	N
Gender	female (jack)
Orientation	straight
Max Frequency (GHz)	2.5
VSWR Freq	<1.25:1
VSWR Frequency (GHz)	2.5
Inner Contact Attach	Solder
Outer Contact Attach	Clamp
Body Finish	Alballoy
Pin Finish	Gold
