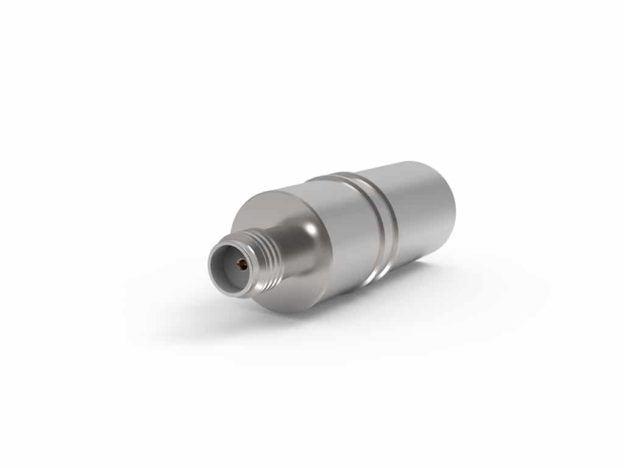

TC‑400‑SF‑X، موصل SMA‑أنثى (مقبس)، مستقيم، لحام، انضغاط، نوع موصل لكابل LMR 400 متحد المحور
Type SMA, female (jack), straight, TC style connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables.
The TC-400-SF-X is an excellent choice for stranded center conductors thanks to its solder-pin connector. The SMA connector is a low-profile, high-performance, threaded coaxial RF connection.
| الوزن | 0.022 كيلوجرام |
|---|---|
| الأبعاد | 2.97 × 1.27 × 1.27 سنتيميتر |
| Brand | Times Microwave System |
| Interface | SMA |
| Gender | female (jack) |
| Orientation | straight |
| PIM Rating | N/A |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.30:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
