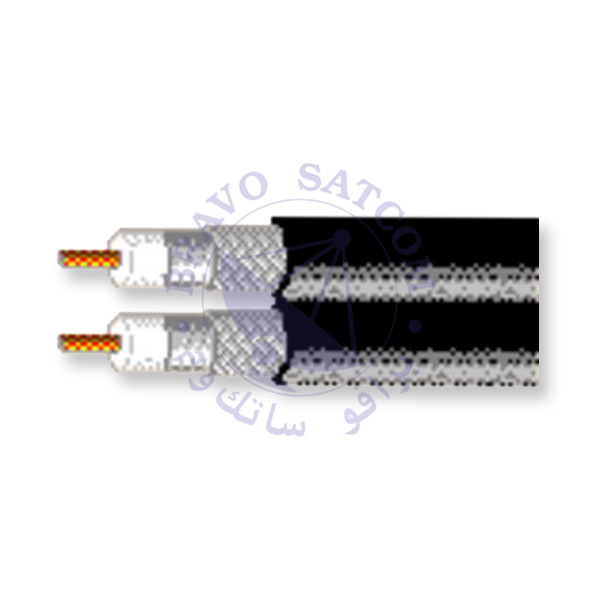

Belden 1841A Dual RG6 Kabel, 18 AWG BCCS, Folqa + Toxuma, CM
Introducing premium Series 6 Dual Coaxial Cable, meticulously designed for superior performance. This high-quality cable boasts an 18 AWG solid .040″ bare copper-covered steel conductor, ensuring robust connectivity. Its gas-injected foam polyethylene insulation guarantees optimal signal integrity, while the innovative Duobond® II technology enhances durability.
Equipped with a reliable aluminum braid shield providing 60% coverage, this cable offers excellent interference protection. The exterior is encased in a durable PVC jacket, ensuring long-lasting use. Elevate your audio and video experience with our Series 6 Dual Coaxial Cable – the perfect choice for reliable and high-performance connections. Upgrade your connectivity today!
Designed to withstand diverse environmental conditions, our Series 6 Dual Coaxial Cable operates flawlessly within a broad temperature range from -40°C to +80°C. With a non-UL temperature rating of 80°C, this cable ensures reliability and performance even in demanding scenarios.
Crafted with precision, the cable weighs 83.339 Kg/Km in bulk, offering a balance of durability and flexibility. It can withstand a maximum recommended pulling tension of 1120.946 N, ensuring ease of installation without compromising its structural integrity.
The cable’s design incorporates a minimal bend radius of 76.200 mm along the minor axis, allowing for efficient and versatile installations in various settings. Trust in the resilience and adaptability of our Series 6 Dual Coaxial Cable to meet your connectivity needs across a wide
Physical Characteristics (Overall):
| Conductor | AWG: | # Coax AWG Stranding Conductor Material Dia. (mm) |
|---|---|---|
| 2 | 18 Solid BCCS – Bare Copper Covered Steel 1.016 | |
| Total Number of Conductors: 2 |
| Insulation | Insulation Material: | Insulation Material Dia. (mm) |
|---|---|---|
| Gas-injected FPE – Foam Polyethylene | 4.572 |
| Outer Shield | Outer Shield Material: | Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%) |
|---|---|---|
| 1 Bonded Duofoil® Tape Bonded Aluminum Foil-Polyester Tape-Aluminum Foil | 100 | |
| 2 Braid | AL – Aluminum |
| Outer Jacket | Outer Jacket Material: | Outer Jacket Material |
|---|---|---|
| PVC – Polyvinyl Chloride |
| Overall Cable | Overall Nominal Diameter: |
|---|---|
| 6.934 x 15.113 mm |
HIGH FREQUENCY CHARACTERISTICS:
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 5 | 0.5 dB/100ft |
| 55 | 1.4 dB/100ft |
| 211 | 2.6 dB/100ft |
| 500 | 4.1 dB/100ft |
| 750 | 5.1 dB/100ft |
| 862 | 5.5 dB/100ft |
| 1000 | 6 dB/100ft |
| 1450 | 7.8 dB/100ft |
| 1800 | 8.6 dB/100ft |
| 2250 | 9.8 dB/100ft |
| 3000 | 11.3 dB/100ft |
MECHANICAL CHARACTERISTICS:
- Bulk Cable Weight: 56 lbs/1000ft
- Max. Pull Tension: 252 lbs
- Min. Bend Radius/Minor Axis: 3 in
STANDARDS:
- NEC/(UL) Compliance: CATV, CM
- CEC/C(UL) Compliance: CM
- RG Type: 6
- Series Type: 6
APPLICABLE ENVIRONMENTAL AND OTHER PROGRAMS:
- Temperature Range:
- Non-UL Temp Rating: 80°C
- Operating Temperature Range: -40°C to +80°C
