Name: Belden CAT6 Kabel PN# 10GXE01 Təkmilləşdirilmiş Kabel, 4 Cüt, F/FTP, LSZH Daxili CPR Eca
SKU: 8108
Availability: InStock

Belden CAT6 Kabel PN# 10GXE01 Təkmilləşdirilmiş Kabel, 4 Cüt, F/FTP, LSZH Daxili CPR Eca

Supports 10GBase-T, Gigabit Ethernet, and a variety of legacy and modern networking protocols
Robust construction with 100% shielding, LSZH jacket, and halogen-free materials
Exceptional high-frequency performance with low insertion loss and superior crosstalk characteristics
Compliant with IEEE 802.3bt PoE standards, supporting Types 1, 2, 3, and 4
Suitable for indoor, horizontal, and building backbone applications
Backed by Belden’s industry-leading quality and reliability

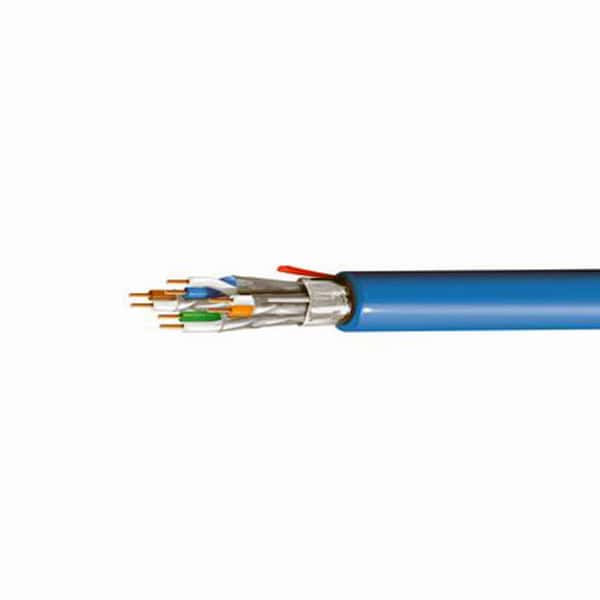

The Belden 10GXE01 is a Category 6A Enhanced Premise Horizontal Cable that supports a wide range of applications, including 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, and 10 Base-T, as well as FDDI and ATM. This versatile cable is the perfect choice for both horizontal and building backbone applications, making it an ideal solution for a variety of industries, including:

Commercial AV Solutions: Stadiums, venues, and broadcast studios
Data Centers: Colocation, edge, and enterprise
Industrial Automation: Process manufacturing, machine building, and material handling
Smart Buildings: Enterprise LAN, inter- and intra-campus connectivity, and security/alarm systems

Key Features and Specifications

The Belden 10GXE01 is packed with features that make it a standout choice for high-performance networking. Let’s dive into the details:

Conductors and Insulation

Conductor Material: 23 AWG solid bare copper (BC)
Number of Pairs: 4
Insulation Material: Foam Polyethylene (PE)
Insulation Diameter: 1.32 mm (0.0520 in)
Color Code: White & Blue, White & Orange, White & Green, White & Brown

Shielding and Jacket

Inner Shield: 100% coverage, bi-laminate (aluminum and polyester) tape
Outer Shield: 100% coverage, bi-laminate (aluminum and polyester) tape
Drainwire: 26 AWG solid tinned copper (TC)
Outer Jacket Material: Low Smoke Zero Halogen (LSZH), flame-retardant
Outer Jacket Diameter: 7.0 mm (0.28 in)
Ripcord: Yes

Electrical Characteristics

Specification	Value
Max. Conductor DC Resistance	95 Ω/km
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nominal Characteristic Impedance	100 Ω
Max. Delay Skew	45 ns/100m
Nominal Velocity of Propagation	77%

High-Frequency Performance

The 10GXE01 cable delivers exceptional high-frequency performance, as shown in the table below:

Frequency (MHz)	Max. Insertion Loss (dB/100m)	Min. NEXT (dB)	Min. PSNEXT (dB)	Min. ACR (dB)	Min. PSACR (dB)	Min. ACRF (ELFEXT) (dB)	Min. PSACRF (PSELFEXT) (dB)	Min. RL (dB)	Min. PSANEXT (dB)	Min. PSAACRF (dB)	Min. TCL (dB)	Min. ELTCTL (dB)
1	2.1	75.3	72.3	73.2	70.2	68	65	20	67	67	40	35
4	3.8	66.3	63.3	62.5	59.5	56	53	23	67	66.2	34	23
10	5.9	60.3	57.3	54.4	51.4	48	45	25	67	58.2	30	15
16	7.5	57.2	54.2	49.8	46.8	43.9	40.9	25	67	54.1	28	10.9
31.2	10.5	52.9	49.9	42.4	39.4	38.1	35.1	23.6	67	48.3	25.1	5.1
62.5	15	48.4	45.4	33.4	30.4	32.1	29.1	21.5	65.6	42.3	22	–
100	19.1	45.3	42.3	26.2	23.2	28	25	20.1	62.5	38.2	20	–
125	21.5	43.8	40.8	22.3	19.3	26.1	23.1	19.4	61	36.3	19	–
200	27.6	40.8	37.8	13.2	10.2	22	19	18	58	32.2	17	–
250	31.1	39.3	36.3	8.3	5.3	20	17	17.3	56.5	30.2	16	–
300	34.3	38.1	35.1	3.9	0.9	18.5	15.5	17.3	55.3	28.7	–	–
500	45.3	34.8	31.8	-10.4	-13.4	14	11	17.3	52	24.2	–	–
625	51.2	33.4	30.4	-17.8	-20.8	12.1	9.1	17.3	50.6	22.3	–	–

Transfer Impedance and Screening Class

Transfer Impedance Class: Grade 2
Screening Class: Type Ib

Mechanical Characteristics

Operating Temperature: -30°C to +60°C
Installation Temperature: 0°C to +50°C
Minimum Bend Radius (Stationary): 29 mm (1.1 in)
Minimum Bend Radius (Installation): 57 mm
Maximum Pull Tension: 110 N (25 lbf)
Bulk Cable Weight: 48 kg/km

Standards and Compliance

Environmental Suitability: Indoor – Euroclass Eca
Flammability/Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category: Category 6A
TIA/EIA Compliance: ANSI/TIA 568.2-D
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61034-2 – Smoke Density Min Transmittance = 60%
CENELEC Compliance: EN 50173-1, Segregation class according EN50174-2 = d
Halogen-Free Standards: IEC 62821-1, IEC 60754-1, IEC 60754-2

The Belden 10GXE01 is a versatile and high-performance PoE cable that delivers exceptional electrical and mechanical characteristics. Its robust construction, combined with its compliance with industry-leading standards, makes it an ideal choice for a wide range of applications that demand reliable, high-speed networking with the added benefit of power delivery.
