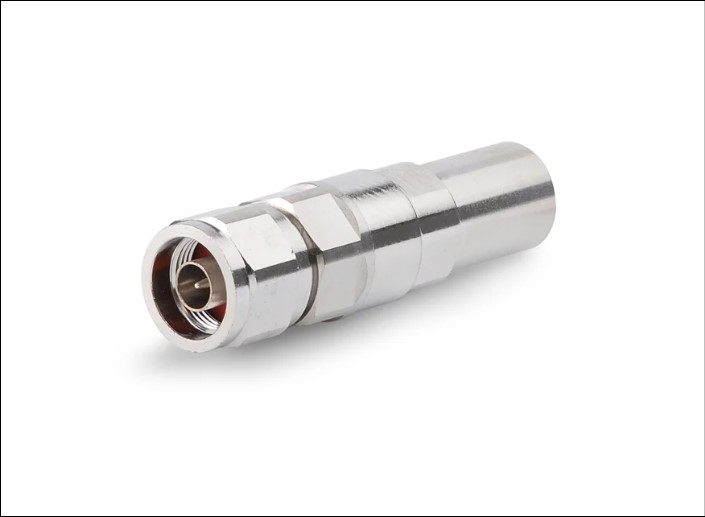

Commscope L4TNM‑PSA N Male Positive Stop™ ½ inç AL4RPV‑50, LDF4‑50A, HL4RPV50 kabel üçün

Product Classification:

• Product Type: Wireless and radiating connector
• Product Brand: HELIAX® | Positive Stop™
• Product Series: LDF4-50A
• Ordering Note: CommScope® standard product (Global)

General Specifications:

• Body Style: Straight
• Cable Family: AL4-50
• Harmonized System (HS) Code: 85366910 (Coaxial cable and other coaxial electric conductors)
• Inner Contact Attachment Method: Captivated
• Inner Contact Plating: Silver
• Interface: N Male
• Mounting Angle: Straight
• Outer Contact Attachment Method: Ring-flare
• Outer Contact Plating: Trimetal

Dimensions:

• Length: 76.71 mm | 3.02 in
• Diameter: 22.35 mm | 0.88 in
• Nominal Size: 1/2 in

3rd Order IMD (Intermodulation Distortion) at Frequency:

• -116 dBm @ 910 MHz
• Test Method: Two +43 dBm carriers

Insertion Loss Coefficient, typical:

• 0.05

Average Power at Frequency:

• 0.6 kW @ 900 MHz

Cable Impedance:

• 50 ohms

Connector Impedance:

• 50 ohms

DC Test Voltage:

• 2000 V

Inner Contact Resistance, maximum:

• 2 mOhm

Insulation Resistance, minimum:

• 5000 MOhm

Operating Frequency Band:

• 0 – 8800 MHz

Outer Contact Resistance, maximum:

• 0.3 mOhm

Peak Power, maximum:

• 10 kW

RF Operating Voltage, maximum (vrms):

• 707 V

Shielding Effectiveness:

• -130 dB

VSWR/Return Loss:

• Frequency Band: 45–1000 MHz
  • VSWR: 1.023
  • Return Loss (dB): 38.89

Mechanical Specifications:

• Attachment Durability: 25 cycles
• Connector Retention Tensile Force: 889.64 N | 200 lbf
• Connector Retention Torque: 5.42 N-m | 47.998 in lb
• Coupling Nut Proof Torque: 4.52 N-m | 39.997 in lb
• Coupling Nut Retention Force: 444.82 N | 100 lbf
• Coupling Nut Retention Force Method: MIL-C-39012C-3.25, 4.6.22
• Insertion Force: 66.72 N | 15 lbf
• Insertion Force Method: MIL-C-39012C-3.12, 4.6.9
• Interface Durability: 500 cycles
• Interface Durability Method: IEC 61169-16:9.5
• Mechanical Shock Test Method: MIL-STD-202, Method 213, Test Condition I

Environmental Specifications:

• Operating Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
• Storage Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
• Corrosion Test Method: MIL-STD-1344A, Method 1001.1, Test Condition A
• Immersion Depth: 1 m
• Immersion Test Mating: Unmated
• Immersion Test Method: IEC 60529:2001, IP68
• Moisture Resistance Test Method: MIL-STD-202F, Method 106F
• Thermal Shock Test Method: MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C
• Vibration Test Method: IEC 60068-2-6
• Water Jetting Test Mating: Unmated
• Water Jetting Test Method: IEC 60529:2001, IP66
