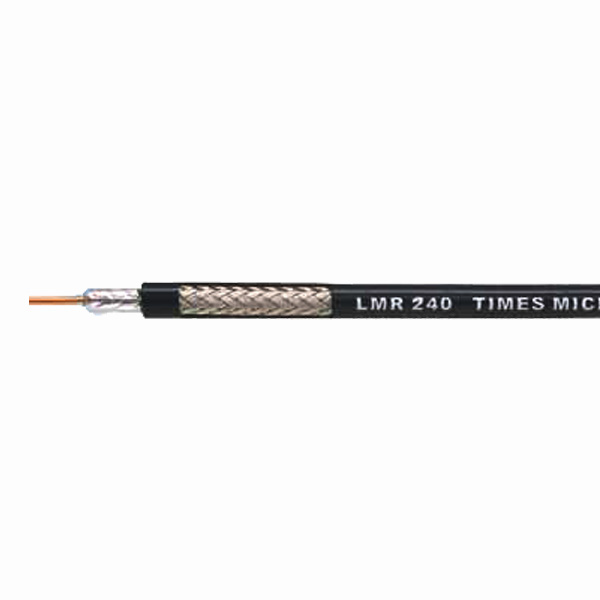

LMR 240 Aşağı İtkili Əyilə Bilən Koaksial Kabel
- The LMR-240 is a flexible, low-loss communications coax cable ideal for a wide range of wireless applications.
- It offers exceptional performance specifications, including low attenuation, high shielding effectiveness, and a wide temperature range.
- The cable is available with a diverse selection of connector options to suit various application requirements.
- Times Microwave Systems provides a comprehensive range of accessories and tools to support the installation and maintenance of the LMR-240 cable.
In the dynamic world of wireless communications, the selection of the right cable can make all the difference in the performance and reliability of your system. Enter the LMR-240, a flexible low-loss communications coax from Times Microwave Systems, the industry leaders in high-performance cable solutions.
The LMR-240 is a versatile cable that excels in a wide range of applications, from jumper assemblies in wireless communications systems to short antenna feeder runs for WLL, GPS, LMR, and mobile antennas. Its exceptional design and construction make it an ideal choice for any application requiring an easily routed, low-loss RF cable, such as WLAN, WISP, WiMax, SCADA, and more.
Key Features and Specifications
| Property | Value |
|---|---|
| Ideal For |
|
| Installation Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature Range | -70°C to +85°C (-94°F to +185°F) |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Bend Radius (Installation) | 0.75 in (19.1 mm) |
| Bend Radius (Repeated) | 2.5 in (63.5 mm) |
| Bending Moment | 0.25 ft-lb (0.34 N-m) |
| Weight | 0.034 lb/ft (0.05 kg/m) |
| Tensile Strength | 80 lb (36.3 kg) |
| Flat Plate Crush | 20 lb/in (0.36 kg/mm) |
| Velocity of Propagation | 83% |
| Dielectric Constant | 1.42 |
| Time Delay | 1.21 ns/ft (3.97 ns/m) |
| Impedance | 50 Ω |
| Capacitance | 24.2 pF/ft (79.4 pF/m) |
| Inductance | 0.060 μH/ft (0.20 μH/m) |
| Shielding Effectiveness | >90 dB |
| DC Resistance (Inner Conductor) | 3.2 Ω/1000 ft (10.5 Ω/km) |
| DC Resistance (Outer Conductor) | 3.89 Ω/1000 ft (12.8 Ω/km) |
| Voltage Withstand | 1500 V DC |
| Jacket Spark Voltage | 5000 V RMS |
| Peak Power | 5.6 kW |
Attenuation Performance
The LMR-240 boasts excellent attenuation performance, making it a top choice for low-loss RF applications. The chart below illustrates the typical attenuation values across a wide range of frequencies:
| Frequency (MHz) | Attenuation (dB/100 ft) | Attenuation (dB/100 m) | Average Power (kW) |
|---|---|---|---|
| 30 | 1.3 | 4.4 | 1.49 |
| 50 | 1.7 | 5.7 | 1.15 |
| 150 | 3.0 | 9.9 | 0.66 |
| 220 | 3.7 | 12.0 | 0.54 |
| 450 | 5.3 | 17.3 | 0.38 |
| 900 | 7.6 | 24.8 | 0.26 |
| 1500 | 9.9 | 32.4 | 0.20 |
| 1800 | 10.9 | 35.6 | 0.18 |
| 2000 | 11.5 | 37.7 | 0.17 |
| 2500 | 12.9 | 42.4 | 0.15 |
| 5800 | 20.4 | 66.8 | 0.10 |
| 8000 | 24.3 | 79.7 | 0.08 |
Connector Options
To cater to diverse application needs, the LMR-240 is available with a wide range of connector options, including:
- F Male Straight Plug
- N Male Straight Plug
- N Male Right Angle
- N Male Right Angle (Detachable)
- N Female Bulkhead Jack
- N Female Panel Mount
- N Female Straight Jack
- BNC Male Straight Plug
- BNC Male Straight Plug (EZ and TC series)
- BNC Male Right Angle
- TNC Male Straight Plug (EZ and TC series)
- TNC Male Reverse Polarity
- TNC Male Right Angle
- TNC Female Straight Jack
- TNC Female Reverse Polarity
- QMA Male Straight Plug
- QMA Male Right Angle
- SMA Male Straight Plug (EZ and TC series)
- SMA Male Right Angle (EZ and TC series)
- SMA Male Reverse Polarity
- SMA Female Bulkhead Jack
- Mini-UHF Straight Plug
- 7/16 Din Male Straight Plug
- 7/16 Din Male Right Angle
Accessories and Tools
To ensure a seamless installation and long-term performance, Times Microwave Systems offers a range of accessories and tools for the LMR-240 cable:
- Ground Kit (GK-S240TT)
- Weatherproof/Strain Relief Kit (WSB-240)
- Crimp Tool (CT-240/200/195/100)
- Strip Tool (CST-240A)
- Deburr Tool (DBT-U)
- Cutting Tool (CCT-02) with Replacement Blade (RB-02)
- Replacement Blade Kit (RB-CST) for all CST strip tools
