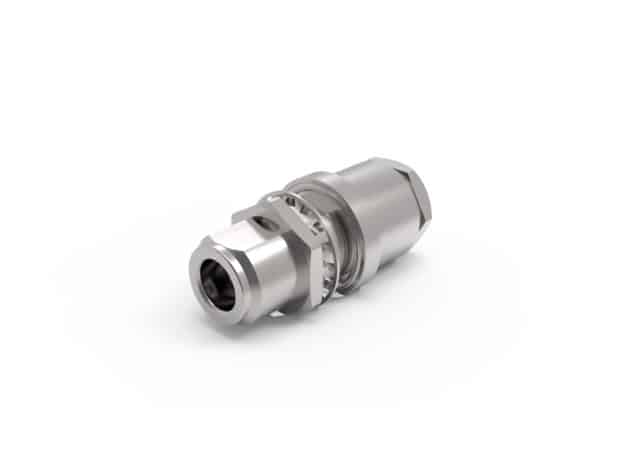

TC-400-NFC-BH-A, N-veida sieviešu (ligzda), taisna, lodējama, skrūvspīļu savienojums, tips priekš LMR 400 koaksiālā kabeļa
Type N, female (jack), straight, TC style connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables. The TC-400-NFC-BH-A features a solder-pin connector and is a perfect option for stranded center conductors. The Type N is a durable, weatherproof, medium-size RF connector designed for systems where excellent RF and mechanical performance is critical. They feature a threaded coupling mechanism and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification.
In stock (can be backordered)
The Type N is an all-weather RF connector of medium size and is ideal for applications where high standards of RF and mechanical performance are required. They’re threaded to couple securely and are compatible with any N-Type connector meeting the MIL-C-39012 standard.
| Weight | 0.0658 kg |
|---|---|
| Dimensions | 4.6 × 2.24 × 2.24 cm |
| Brand | Times Microwave System |
| Interface | N |
| Gender | female (jack) |
| Orientation | straight |
| Max Frequency (GHz) | 2.5 |
| VSWR Freq | <1.25:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Clamp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
