Name: Antena VHF CX4-9 para uso marítimo y terrestre, Tx/Rx, 150W
SKU: 7481
Availability: InStock

Antena VHF CX4-9 para uso marítimo y terrestre, Tx/Rx, 150W

Pattern: Omnidirectional
Frequency range: [MHz] 118.0-137.0
Nominal Impedance [Ohm] 50
Max. Input Power [Watt] 150
Gain [dBd/dBi/Marine dB] 0 / 2.15

The CX4-9 is an omnidirectional dipole antenna manufactured with premium quality materials to prevent galvanic corrosion. The radiating elements are made of brass. This antenna has been sold worldwide for over four decades and is subject to ongoing improvement. The rugged design of the CX4-9 allows it to withstand harsh environmental conditions, both on land and sea, like other AC Antennas products.

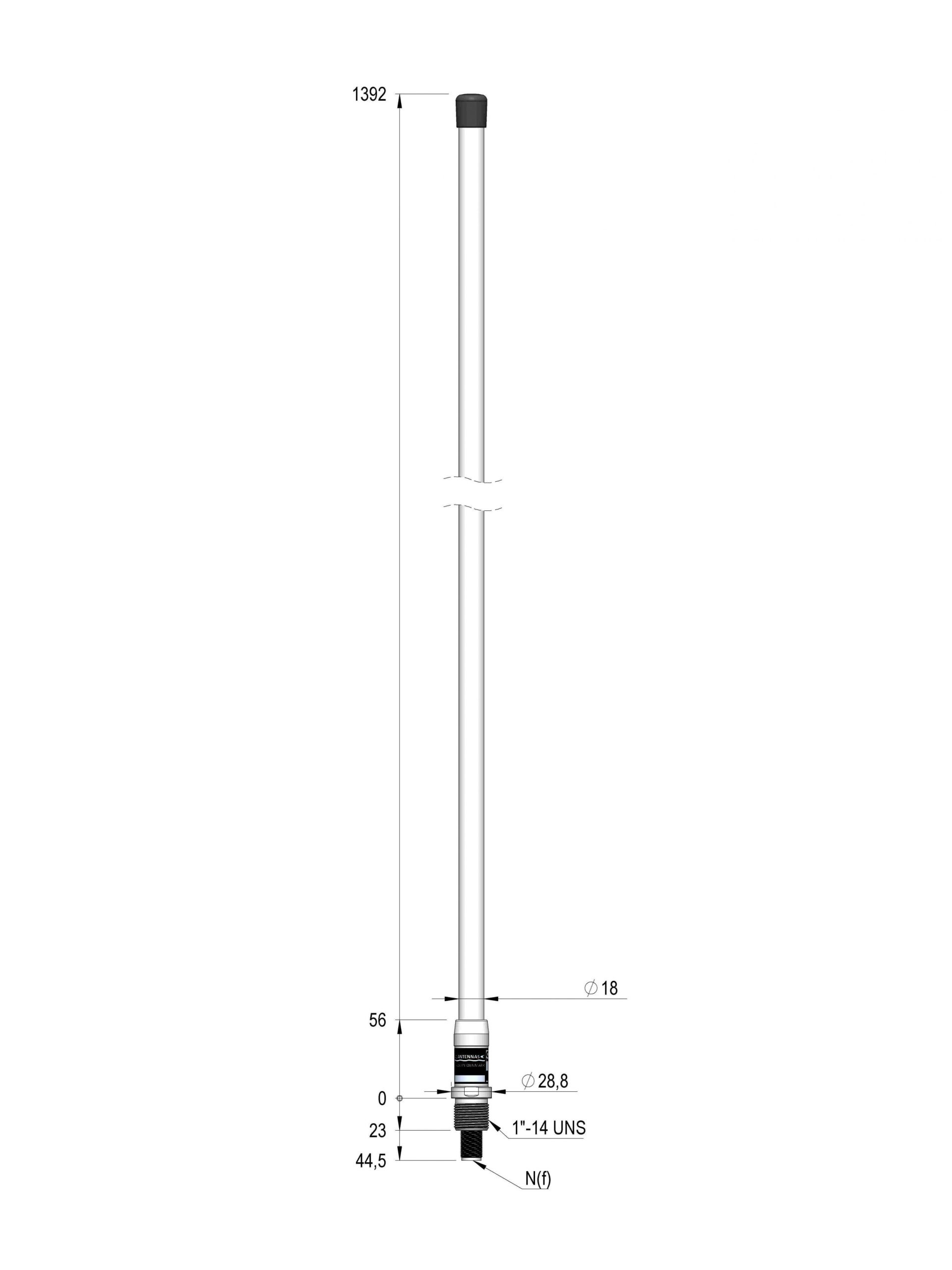

Mechanical specifications
Length [m/ft]	1.45 / 4.76
Sections	1
Weight [kg/lbs]	0.60 / 1.30
Survival Wind Speed [km/h / m/s / mph]	200 / 55 / 124
Wind Area [m2/ft2]	0.0186 / 0.2002
Wind Load @ 160km/h [N]	27
Material	Fibreglass
Colour	White
Operating Temperature Range [°C/°F]	-55 to +70 / -67 to +158
Ingress Protection	IP66
Thread	1″ 14TPI male / –
Mounting	Mounting nut excluded
