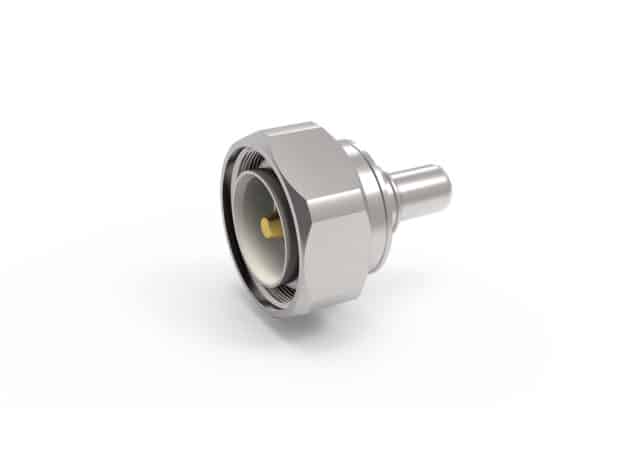

TC-400-716M-X, conector tipo 7/16 DIN macho (enchufe), recto, soldadura, crimpado, para cable coaxial LMR 400
7/16 DIN male (plug) straight TC connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables. The TC-400-716M-X features a solder-pin connector and is a perfect option for stranded center conductors.
Hay existencias (puede reservarse)
The 7/16 DIN connectors are a threaded radio frequency (RF) connector frequently used in water-prone environments like broadcast and base stations. The 400 size cables can be connected directly to this male (plug) connector.
| Peso | 0.145 kg |
|---|---|
| Dimensiones | 3.95 × 3.6 × 3.6 cm |
| Brand | Times Microwave System |
| Interface | 7/16 DIN |
| Gender | male (plug) |
| Orientation | straight |
| PIM Rating | N/A |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.30:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Silver |
