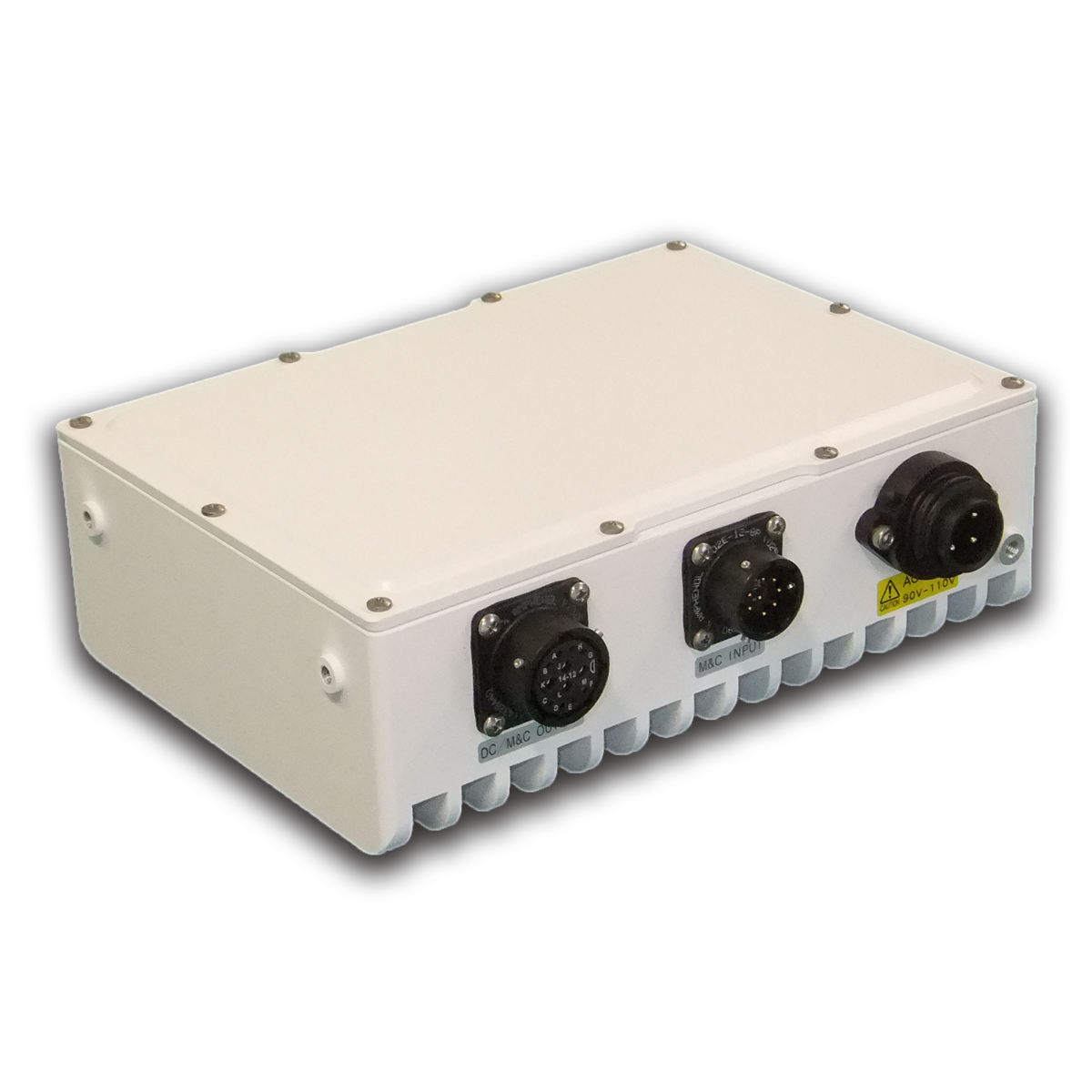

Alimentation 250W, type extérieur NJZ1289, courant max : 3,6 A, fréquence : 50 / 60 Hz

En stock

Catégorie : VSAT Étiquettes : 250W PSU, NJZ1289, Power Supply Unit

Parameter	Specifications
Input AC Power Interface	– C016 20C003 200 12 / Amphenol
Output DC Power Interface	– PT02E-14-12S(025) / Amphenol
Input AC Power Voltage Range	– Specified Value: 100 to 240 VAC
	– Maximum Rated Value: 90 to 264 VAC
Input AC Power Frequency	– 50 / 60 Hz
Input AC Power Current	– 3.6 A max.
Output DC Power Voltage	– +48 V nominal
Output DC Power Capacity	– 250 W max.
Operating Temperature Range	– -40 to +55 ℃
Waterproof / Dustproof (IP-code)	– IP67
Weight	– 1.6 kg
Dimensions	– Dimensions (LxWxH): 186 x 133 x 60 mm
	(w/o Interfaces & Screws)
