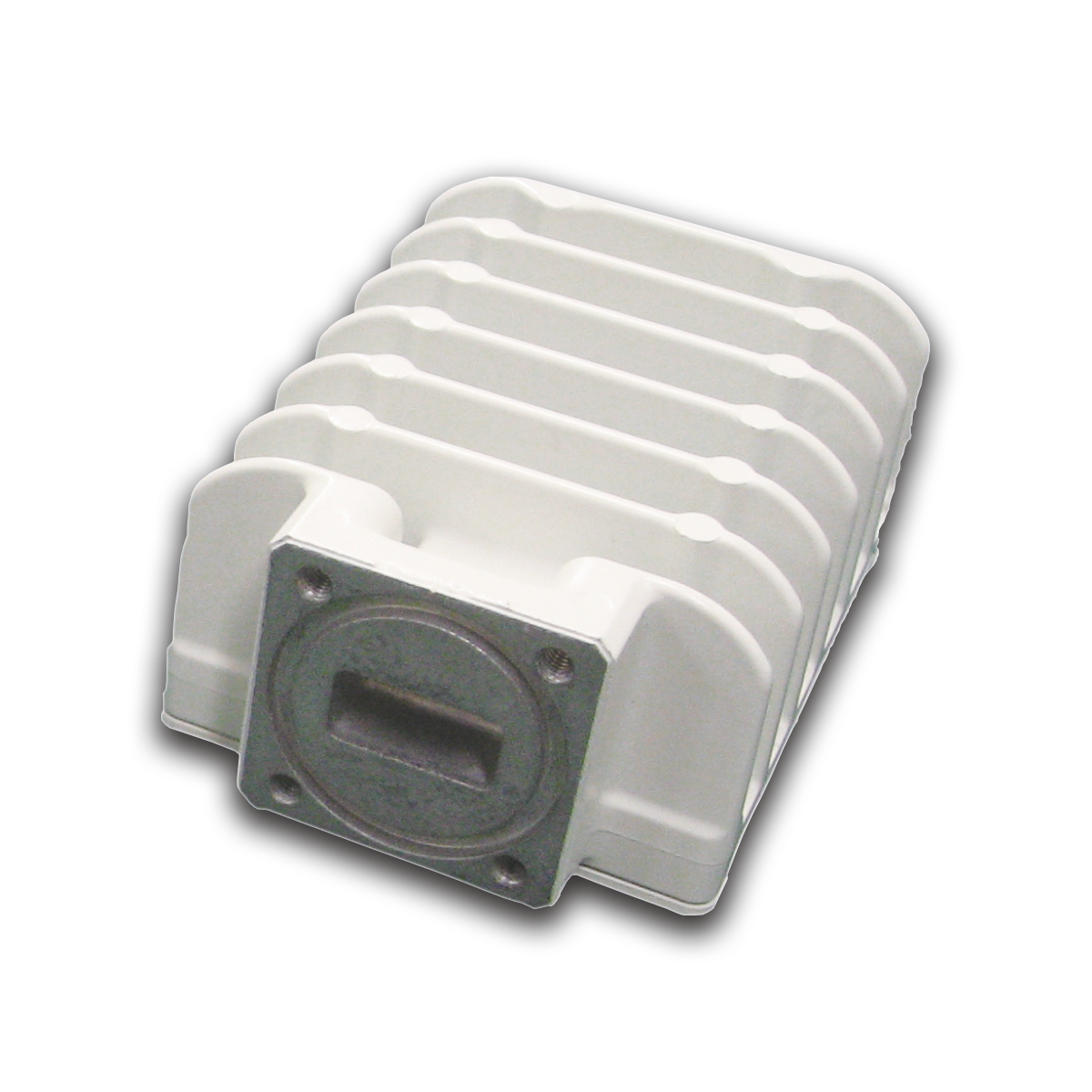

BUC Ku-Band standard 3W NJT8302, fréquence LO : 13,05 GHz, fréquence FI : 950 à 1450 MHz
In stock
| Parameter | Specifications |
|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) |
| IF Input Interface | – Coaxial Connector, N-type Female (50 Ω) |
| – Coaxial Connector, F-type Female (75 Ω) | |
| Frequency Ranges | – RF Frequency: 14.0 to 14.5 GHz |
| – IF Frequency: 950 to 1,450 MHz | |
| – LO Frequency: 13.05 GHz | |
| Power and Performance | – P1dB Output Power: +34 dBm min. over temperature |
| (@ 1dB G.C.P.) | |
| – ACPR: -26 dBc typ. @ Pout = +34 dBm | |
| – Linear Gain: 58 dB typ., 51 dB min. | |
| Power Supply | – Input Power Voltage Requirement: +24 VDC (+12 |
| to +30 VDC) | |
| – Power Consumption @ P1dB: 18 W typ., 23 W max. | |
| Environmental Conditions | – Operating Temperature Range: -40 to +55 ℃ |
| – Waterproof / Dustproof (IP-code): IP67 | |
| Physical Characteristics | – Weight: 350 g |
| – Dimensions (LxWxH): 91.55 x 68 x 42.5 mm | |
| (w/o Interfaces & Screws) |
| NJT8302N | N Type – 50Ω |
|---|---|
| NJT8302UF | F Type – 75Ω |
