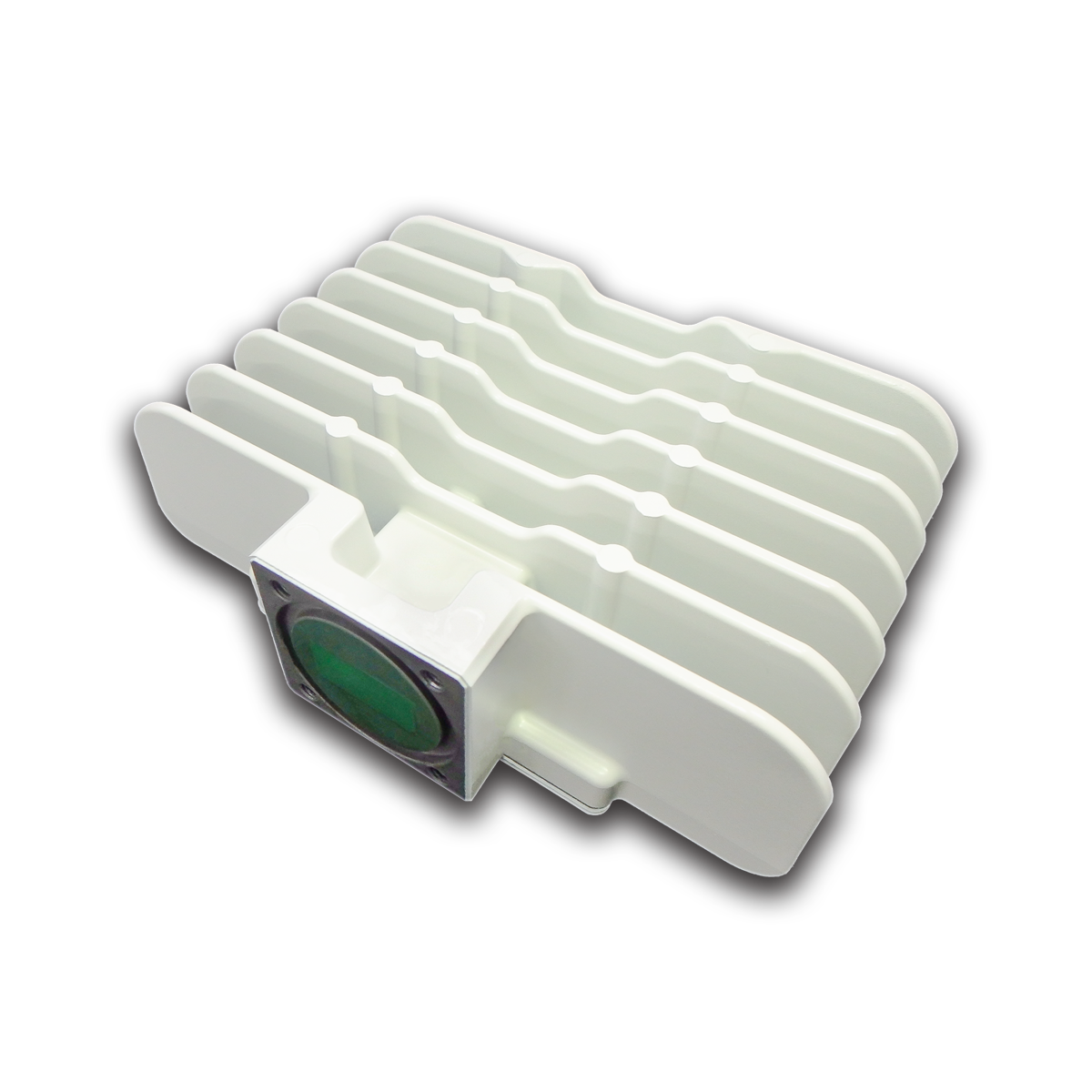

BUC Ku-Band standard 6W, modèle compact NJT8376, fréquence LO : 13,05 GHz, fréquence FI : 950 à 1450 MHz
En stock
| Parameter | Specifications |
|---|---|
| Frequency Organization | – RF Frequency: 13.75 to 14.5 GHz |
| – IF Frequency: 950 to 1,700 MHz | |
| – LO Frequency: 12.8 GHz | |
| High Efficiency & Low Distortion Output Power | – P1dB: +37.8 dBm min. over temperature |
| – ACPR: -26 dBc @ Pout = +37.0 dBm | |
| – Power Consumption: 34 W | |
| Ultra-compact & Ultra Light Weight | – Weight: 540 g |
| Others | – RoHS Compliance |
Series Line-up
| Model No. | RF Frequency | Output Power | IF Connector |
|---|---|---|---|
| NJT8376UN | 13.75 to 14.5 GHz | +37.8 dBm min. @ P1dB (6W) | N-type (50Ω) |
| NJT8376UF | 13.75 to 14.5 GHz | +37.8 dBm min. @ P1dB (6W) | F-type (75Ω) |
