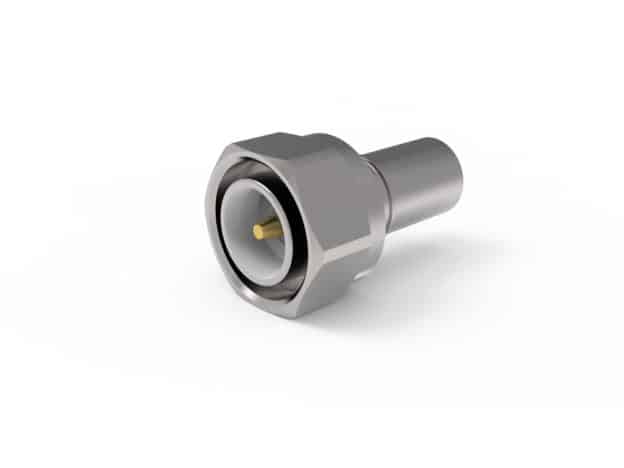

TC-400-4310M-X, 4.3/10 mini DIN-Mâle (fiche), droit, à souder, sertissage, pour câble coaxial LMR 400
Type 4.3/10 mini DIN, male (plug), straight, TC style connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables.
En stock (peut être commandé)
The TC-400-4310M-X is ideal for use with stranded center conductors due to its solder-pin connector. Connectors with a 4.3/10 DIN offer the same rugged design as 7/16 connectors while taking up much less space and weighing less, enabling more compact and lightweight designs.
These layouts facilitate an easier installation and a very stable PIM performance. High conductivity, corrosion resistance, and durability are provided by the combination of silver-plated contacts and White Bronze-plated bodies.
| Dimensions | 5.33 × 2.45 × 2.45 cm |
|---|---|
| Brand | Times Microwave System |
| Interface | 4.3/10 mini DIN |
| Gender | male (plug) |
| Orientation | straight |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.30:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Alballoy |
