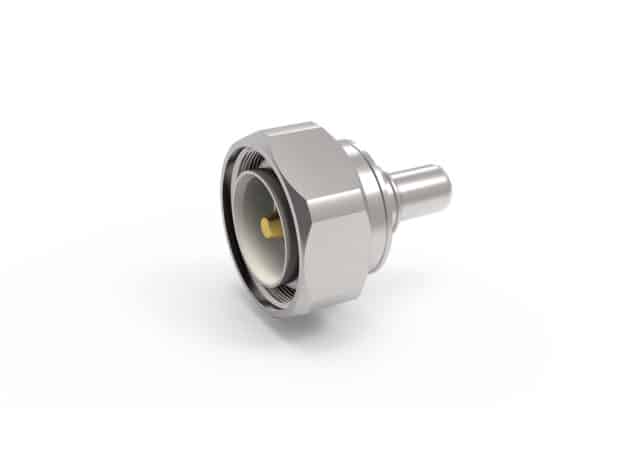

TC-400-716M-X, 7/16 DIN-Mâle (fiche), droit, à souder, sertissage, pour câble coaxial LMR 400

Name: TC-400-716M-X, 7/16 DIN-Mâle (fiche), droit, à souder, sertissage, pour câble coaxial LMR 400
SKU: 10567
Availability: InStock

7/16 DIN male (plug) straight TC connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables. The TC-400-716M-X features a solder-pin connector and is a perfect option for stranded center conductors.

En stock (peut être commandé)

Catégories : 7/16 DIN, Connectors Étiquettes : 7/16 DIN Connector, LMR 400 connetor, TC-400-716M-X

Description
Informations complémentaires

The 7/16 DIN connectors are a threaded radio frequency (RF) connector frequently used in water-prone environments like broadcast and base stations. The 400 size cables can be connected directly to this male (plug) connector.

Poids	0.145 kg
Dimensions	3.95 × 3.6 × 3.6 cm
Brand	Times Microwave System
Interface	7/16 DIN
Gender	male (plug)
Orientation	straight
PIM Rating	N/A
Max Frequency (GHz)	6
VSWR Freq	<1.30:1
VSWR Frequency (GHz)	2.5
Inner Contact Attach	Solder
Outer Contact Attach	Crimp
Body Finish	Alballoy
Pin Finish	Silver
