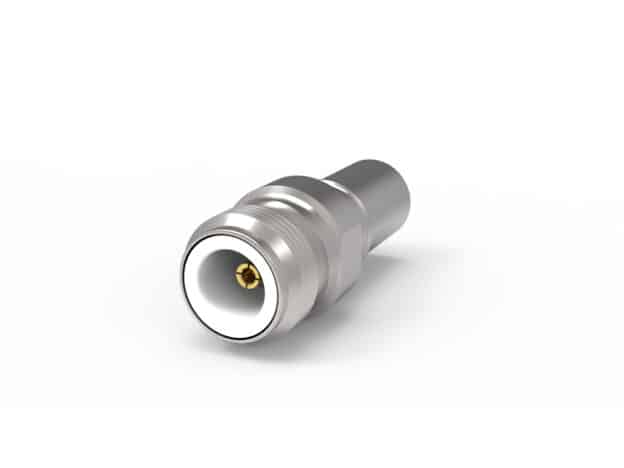

TC-400-NF-X, N-Femelle (prise), droit, à souder, sertissage, pour câble coaxial LMR 400
N female (jack) straight TC connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables. The TC-400-NF-X features a solder-pin connector and is a perfect option for stranded center conductors
En stock (peut être commandé)
The Type N is an all-weather RF connector of medium size and is ideal for applications where high standards of RF and mechanical performance are required. They’re threaded to couple securely and are compatible with any N-Type connector meeting the MIL-C-39012 standard.
| Poids | 0.0324 kg |
|---|---|
| Dimensions | 4.5 × 1.68 × 1.68 cm |
| Brand | Times Microwave System |
| Interface | N |
| Gender | female (jack) |
| Orientation | straight |
| PIM Rating | N/A |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.30:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Nickel |
| Pin Finish | Gold |
