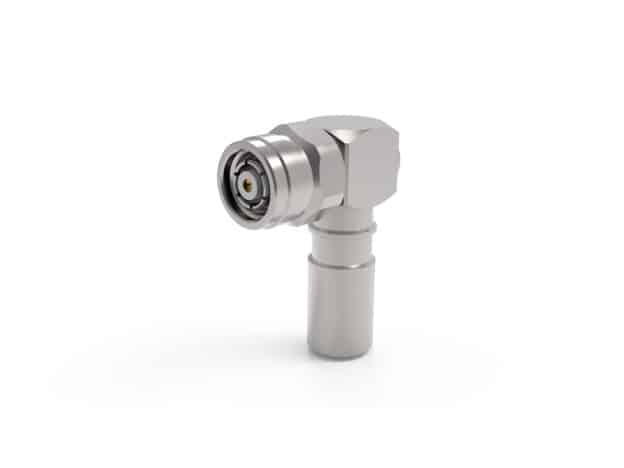

TC-400-TM-RP-RA-D, TNC-Mâle (fiche), angle droit, à souder, sertissage, pour câble coaxial LMR 400

Name: TC-400-TM-RP-RA-D, TNC-Mâle (fiche), angle droit, à souder, sertissage, pour câble coaxial LMR 400
SKU: 10591
Availability: InStock

Type TNC, male (plug), right angle, TC style connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables. The TC-400-TM-RP-RA-D features a solder-pin connector and is a perfect option for stranded center conductors.

En stock (peut être commandé)

Catégories : Connectors, TNC Étiquettes : LMR 400 connetor, TC-400-TM-RP-RA-D, TNC Connector

Description
Informations complémentaires

Featuring a contact design analogous to that of the BNC series but with improved frequency performance, the TNC is a miniature, threaded, weatherproof connector.

Poids	0.059 kg
Dimensions	3.6 × 3.03 × 3.03 cm
Brand	Times Microwave System
Interface	TNC
Gender	male (plug)
Orientation	right angle
PIM Rating	N/A
Max Frequency (GHz)	6
VSWR Freq	<1.35:1
VSWR Frequency (GHz)	2.5
Inner Contact Attach	Solder
Outer Contact Attach	Crimp
Body Finish	Alballoy
Pin Finish	Gold
