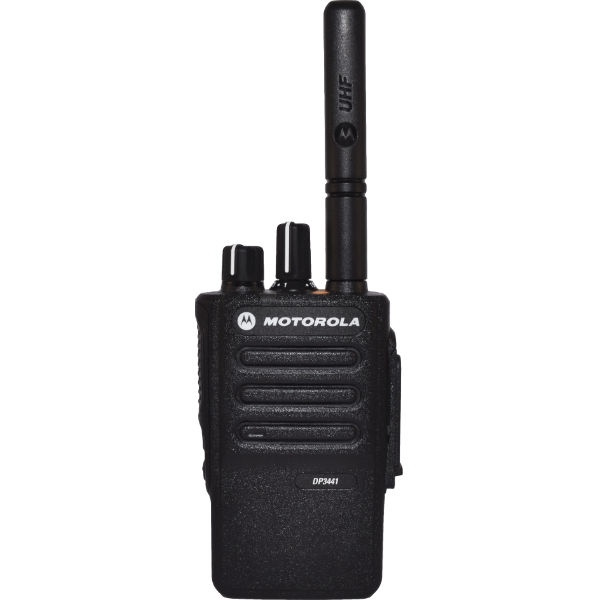

Name: Motorola DP3441e pārvietojamais digitālais divvirzienu radio
SKU: 9890
Availability: InStock

Elevate Your Communication with MOTOTRBO DP3441e

Unleash the power of dynamic evolution in MOTOTRBO digital two-way radios, offering enhanced agility, connectivity, and safety. The DP3441e is meticulously designed for mobile professionals, ensuring effective communication in various scenarios. Discover its compact design and high-performance integrated voice and data capabilities that bring comprehensive connectivity to your organization.

AGILE

Experience the toughness and compactness of the MOTOTRBO DP3441e—a digital radio compliant with ETSI DMR Standards. Its small form factor ensures portability, complemented by an efficient short antenna. Tested to military standards for extreme ruggedness and boasting an IP68 rating for dust and water resistance, this radio excels even in harsh environments.

CONNECTED

The DP3441e goes beyond by delivering operations-critical voice and data communications. Enjoy wire-free communication with Bluetooth® audio, enable remote software updates through integrated Wi-Fi®, and gain total visibility of resources with indoor and outdoor location-tracking capabilities. With support for trunking and legacy analog technology, stay seamlessly connected as your organization grows.

SAFE

Prioritize safety with the DP3441e’s responsive push-to-talk technology. The prominent orange emergency button facilitates one-touch help summoning, while Transmit Interrupt clears a channel when necessary. An integrated accelerometer adds an extra layer of safety, sensing falls and initiating a call for assistance.

Elevate your communication experience with the MOTOTRBO DP3441e—an embodiment of durability, connectivity, and safety in the realm of digital two-way radios.

Model Number: DP3441e
Band: VHF UHF

GENERAL SPECIFICATIONS:

Frequency:
- VHF: 136-174 MHz
- UHF: 403-527 MHz
High Power Output:
- VHF: 5 W
- UHF: 4 W
Low Power Output:
- VHF: 1 W
- UHF: 1 W
Channel Spacing: 12.5, 20, 25 kHz
Channel Capacity: 32
Dimensions (H x W x D), Radio + 1600mAh Li-ion Battery: 100 x 56 x 30 mm
Weight, Radio + 1600mAh Li-ion Battery: 254 g
Digital / Analogue Battery Life:
- Digital: 16.0 hours
- Analogue: 12.0 hours
Power Supply (Nominal): 7.5 V

TRANSMITTER SPECIFICATIONS

Channel Spacing: 12.5, 20, 25 kHz
4FSK Digital Modulation:
- 12.5 kHz Data: 7K60F1D and 7K60FXD
- 12.5 kHz Voice: 7K60F1E and 7K60FXE
- Combination of 12.5 kHz Voice and Data: 7K60F1W
Digital Protocol: ETSI TS 102 361-1, -2, -3
Conducted/Radiated Emissions (TIA603D):
- -36 dBm < 1GHz, -30 dBm > 1GHz
Adjacent Channel Power:
- 60dB (12.5 kHz)
- 70dB (20 / 25 kHz)
Frequency Stability: ± 0.5 ppm

RECEIVER SPECIFICATIONS

Analogue Sensitivity (12dB SINAD): 0.16 uV
Digital Sensitivity (5% BER): 0.14 uV
Intermodulation (TIA603D): 70 dB
Adjacent Channel Selectivity (TIA603A)-1T:
- 60 dB (12.5 kHz)
- 70 dB (20 / 25 kHz)
Adjacent Channel Selectivity (TIA603D)-2T:
- 45 dB (12.5 kHz)
- 70 dB (20 / 25 kHz)
Spurious Rejection (TIA603D): 70 dB

AUDIO SPECIFICATIONS

Digital Vocoder Type: AMBE+2™
Audio Response: TIA603D
Rated Audio: 0.5 W
Audio Distortion at Rated Audio: 3%
Hum and Noise:
- -40 dB (12.5 kHz)
- -45 dB (20 / 25 kHz)
Conducted Spurious Emissions (TIA603D): -57 dBm

BLUETOOTH SPECIFICATIONS

Version: 4.0
Range: Class 2, 10 m
Supported Profiles: Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola fast push-to-talk.
Simultaneous Connections: 1 x audio accessory and 1 x data device
Permanent Discoverable Mode: Optional

GNSS SPECIFICATIONS
