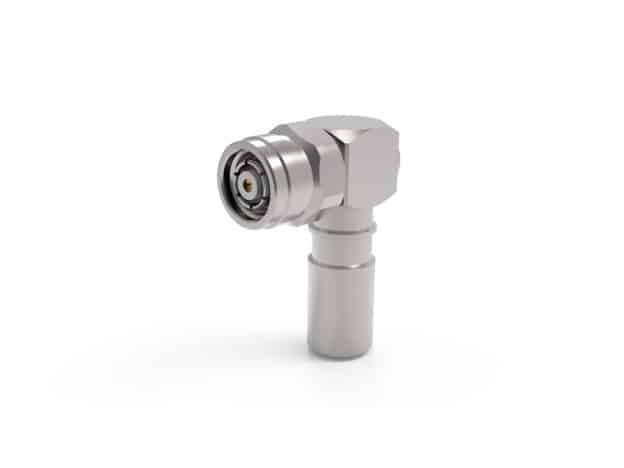

TC-400-TM-RP-RA-D, TNC vīriešu (spraudnis), taisnā leņķī, lodējams, krimpējams, tips priekš LMR 400 koaksiālā kabeļa
Type TNC, male (plug), right angle, TC style connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables. The TC-400-TM-RP-RA-D features a solder-pin connector and is a perfect option for stranded center conductors.
Turime (galime užsakyti)
Featuring a contact design analogous to that of the BNC series but with improved frequency performance, the TNC is a miniature, threaded, weatherproof connector.
| Svoris | 0.059 kg |
|---|---|
| Išmatavimai | 3.6 × 3.03 × 3.03 cm |
| Brand | Times Microwave System |
| Interface | TNC |
| Gender | male (plug) |
| Orientation | right angle |
| PIM Rating | N/A |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.35:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
