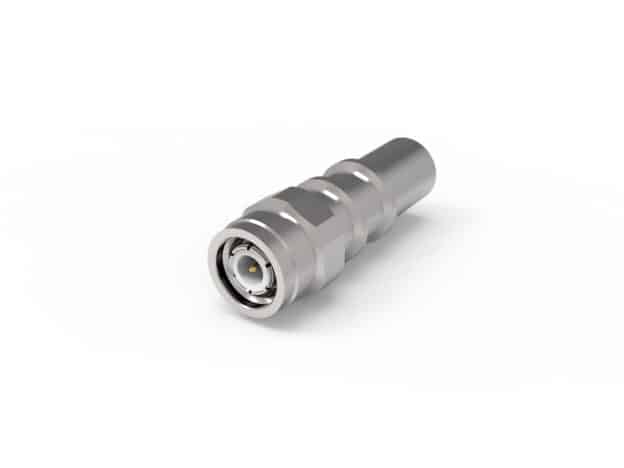

TC-400-TM-X, TNC vīriešu (spraudnis), taisns, lodējams, krimpējams, tips priekš LMR 400 koaksiālā kabeļa
TNC male (plug) straight TC connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400 type cables. The TC-400-TM-X features a solder-pin connector and is a perfect option for stranded center conductors.
Turime (galime užsakyti)
Featuring a contact design analogous to that of the BNC series but with improved frequency performance, the TNC is a miniature, threaded, weatherproof connector. The 400 size cables can be connected directly to this male (plug) connector.
| Svoris | 0.0343 kg |
|---|---|
| Išmatavimai | 4.8 × 1.75 × 1.75 cm |
| Brand | Times Microwave System |
| Interface | TNC |
| Gender | male (plug) |
| Orientation | straight |
| PIM Rating | N/A |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.30:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
