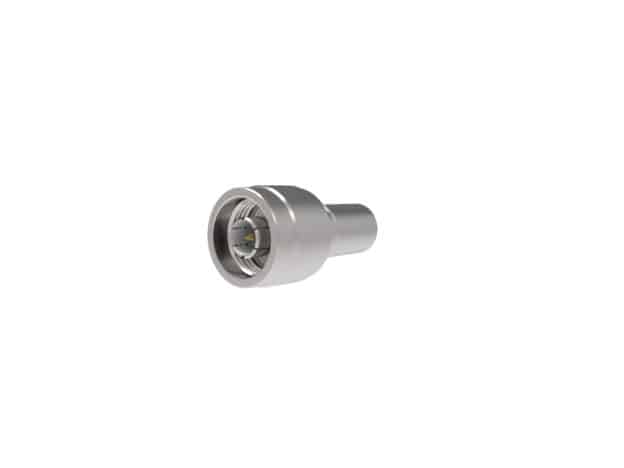

EZ-400-NMK-X, N-Male (Plug), Straight, Spring Finger, Crimp, Type Connector for LMR 400 Coaxial Cable
Type N, male (plug), straight, EZ style connector for LMR-400, TCOM-400, and T-RAD-400-FR type cables. The EZ-400-NMK-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts.
In stock (can be backordered)
Its optimal and consistent termination is guaranteed by its no-braid trim design, which also prevents FOD. Surface contact is optimized, and current density is kept to a minimum, thanks to the BeCu pins’ design.
The EZ connectors are ideal for use in environments with extreme cold and high vibration, where the center conductor could potentially contract due to the strong spring force they provide.
The Type N is an all-weather RF connector of medium size and is ideal for applications where high standards of RF and mechanical performance are required. They’re threaded to couple securely and are compatible with any N-Type connector meeting the MIL-C-39012 standard.
| Weight | 0.05 kg |
|---|---|
| Dimensions | 4.06 × 2.1 × 2.1 cm |
| Brand | Times Microwave System |
| Interface | N |
| Gender | male (plug) |
| Orientation | straight |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.3:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Spring Finger |
| Outer Contact Attach | Crimp |
| Body Finish | Allbaloy |
| Pin Finish | Gold |
