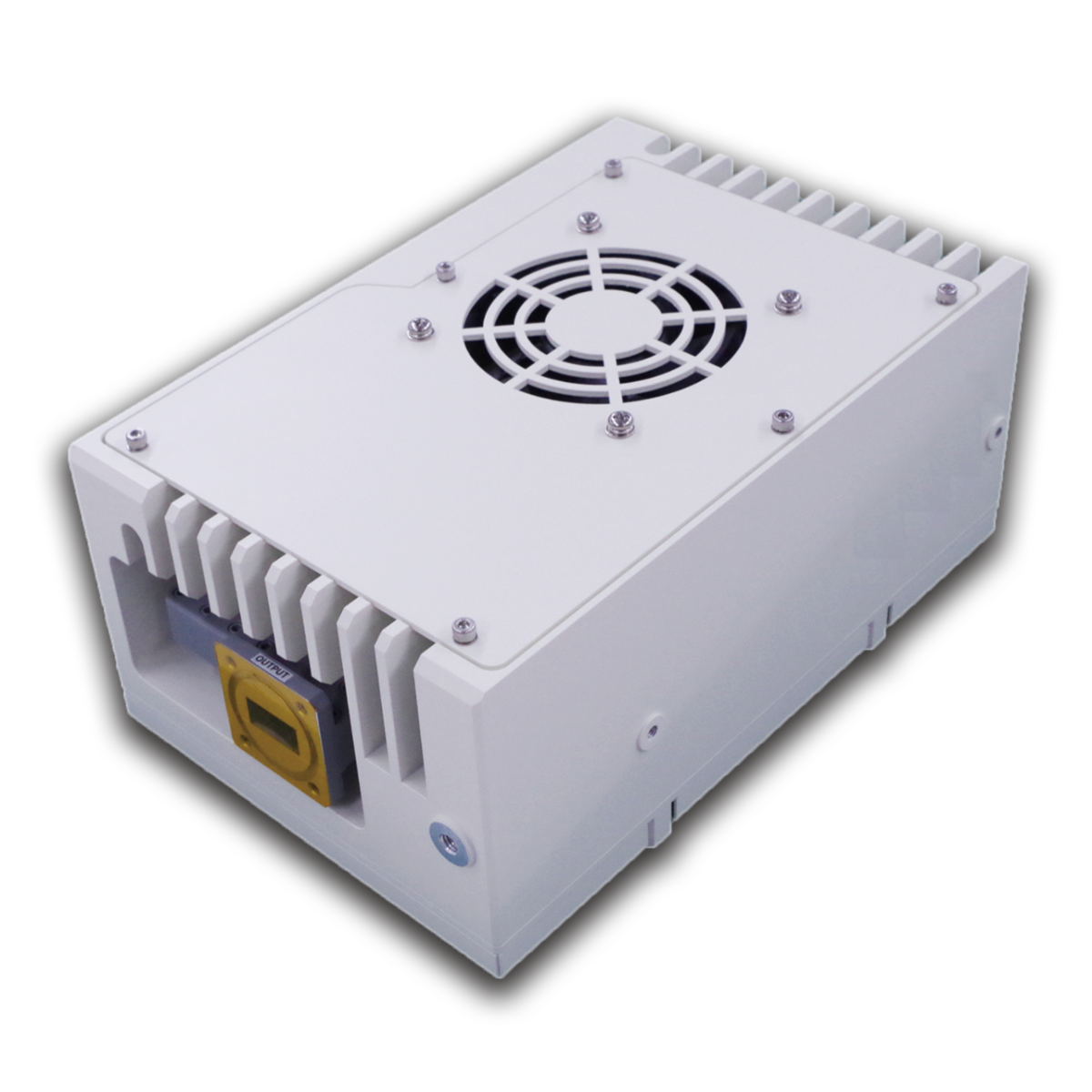

NJT8371 Series – Standard Ku-band 40W GaN BUC
A weatherized 40W GaN block up-converter for the standard 14.0-14.5 GHz Ku-band, with FSK monitor-and-control and MS-connector power feed.
The NJT8371 is a GaN-based Ku-band block up-converter for the standard 14.0 to 14.5 GHz band, delivering up to 40W (+46 dBm saturated output) from a 950-1,450 MHz IF input against a 13.05 GHz LO. It is built into a weatherproof, forced-air-cooled, IP67-rated enclosure and operates over -40 to +60C. Typical ACPR is -30 dBc at +44 dBm output, power draw is around 220W typical at +42 dBm output, and it runs on +36 to +60 VDC (with an AC power option). This NMK variant uses FSK monitor-and-control with MS-connector power supply; an RS-232C M&C option also exists in the series. It weighs 4.2 kg, includes an LED indicator, and is RoHS compliant. Note this is the standard-band counterpart to the universal-band NJT8371U series.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) / Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 14.0 to 14.5 GHz |
| IF Frequency | 950 to 1,450 MHz |
| LO Frequency | 13.05 GHz |
| Saturation Output Power | +44 dBm min. @ +25C (Psat) |
| ACPR | -30 dBc typ., 26 dBc max. @ Pout = +44 dBm |
| Small Signal Gain | 72 dB nom., 66 dB min. |
| Input Power Voltage Requirement | +48 VDC (+36 to +60 VDC) [DC Power Models] / 90 to 264 VAC [AC Power Models] |
| Power Consumption | 220 W typ. @ Pout = +42 dBm / 260 W typ., 290 W max. @ Psat |
| Operating Temperature Range | -40 to +60C |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 4.2 kg |
| Dimensions | (L) 230 x (W) 150 x (H) 100 mm (w/o Interfaces & Screws) |
