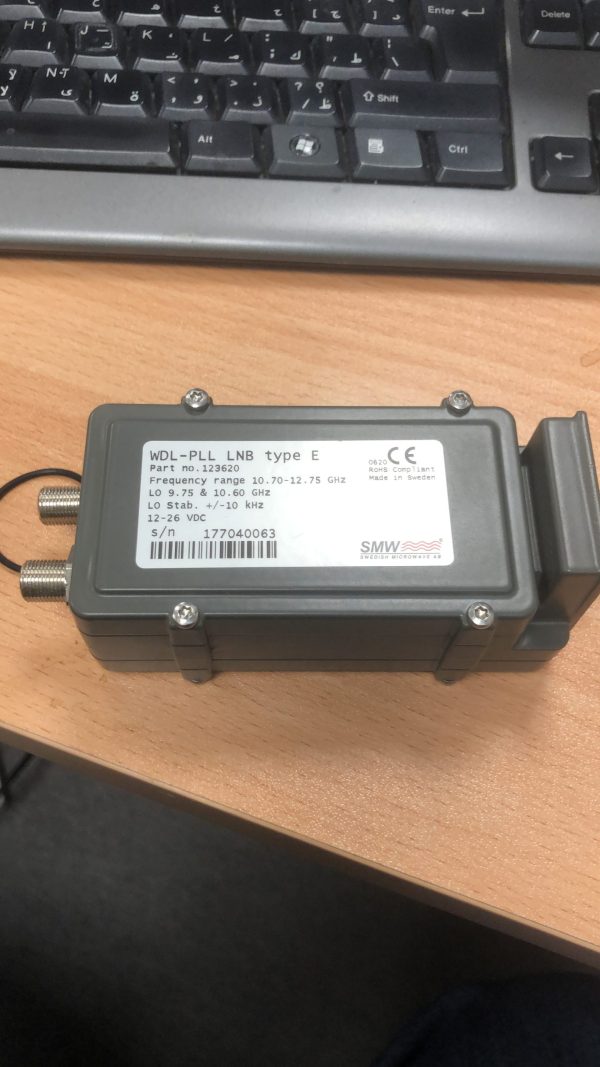

SMW 123620 WDL-PLL type E F ±10 kHz
Explore our cutting-edge satellite communication solutions with comprehensive Ku-Band coverage and simultaneous Low and High band outputs. Our devices boast low phase noise, meeting the demanding Broadcast profile of DVB-S2. Opt for our optional ultra-low phase noise model, designed to fulfill all profiles of DVB-S2X. Benefit from high P1dB and IP3, and customize your experience with the choice between Internal Ref. or External Ref. input models. Elevate your satellite communication capabilities with our advanced features.
The Ultra Low Phase Noise “ULPN” option is recommended* for:
DVB-S2: – Narrowband 8PSK 8/9 and 9/10 FEC
– 16 APSK or higher modulation type (any bandwidth)
– All applications with “Pilot Off”
DVB-S2X: All “MODCODS” and symbol rates
NS3/NS4: All “MODCODS” and symbol rates
Introducing our advanced WDL-PLL LNB, available in both Type E and Type B models, each offering exceptional performance across various frequency bands. Here are the key specifications:
Model Options:
- WDL-PLL LNB Type E
- WDL-PLL LNB Type B
Frequency Bands:
- Low Band: 10.70 – 11.70 GHz (Type E), 10.95 – 11.70 GHz (Type B)
- High Band: 11.70 – 12.75 GHz
Key Features:
- LO Frequency: 9.75 GHz (Type E), 10.00 GHz (Type B)
- Output Frequency: 950 – 1950 MHz (Type E), 950 – 1700 MHz (Type B)
- Spuriouses: -60 dBm @ 1700 MHz typ. (Type E), -60 dBm @ 1500 MHz typ. (Type B)
- Gain: 60 dB typ. (55 dB min.)
- Flatness: ±0.25 dB max. within 30 MHz, ±2 dB max. each band
Phase Noise:
- Standard Model: -35 dBc @ 10 Hz to -120 dBc @ >1MHz, typ.
- Ultra-Low Phase Noise (Opt ULP): -35 dBc @ 10 Hz to -120 dBc @ >1MHz, typ.
Image Rejection: 40 dB min.
Output Power:
- P1dB: +15 dBm typ.
- IP3: +25 dBm typ.
Connectivity:
- Output Connectors: 2 pcs F-type 75Ω / N-type 50Ω Option SMA-type 50Ω
Power and Dimensions:
- DC Input: +12 to +26 V (Type E), +15 to +26V (Type B)
- Power Consumption: 5 W typ.
- Temperature Range: -40 to +80ºC
- Dimensions: 122 x 57 x 46 mm (F- & SMA-connector), 128 x 57 x 46 mm (N-connector)
Options:
- Customized gain and variation
- Extended low band options
- DC input +15 to +26 V
- Waveguide Isolator
- Fiber optic output (Q-ODC)
- Ultra-Low Phase Noise for all DVB-S2X profiles
- Pressurizable (not applicable with optical output)
Optional RF over Fiber Output:
- Optical output: Direct modulated DFB, 2 mW @ 1310 nm, Dual fiber, Single mode Huber & Suhner, Q-ODC
- RF monitor / DC input: F-type 75Ω / N-type 50Ω / SMA-type 50Ω. RF monitor port 45 dB gain.
- DC Input: Via monitor connector, Voltage as specified, 6 W max.
- Dimensions: 130 x 57 x 70 mm
Standards Compliance:
- Optical interface: EIA/TIA 568, ITU std. G694.2
- EMC: EN 55013:2013, EN 55020, EN 300 386
- Safety: EN 60950-1, EN 60950-22, EN 60065:2002
Options:
- Fixed gain (Beacon)
- 1550 nm fiber transmitter
