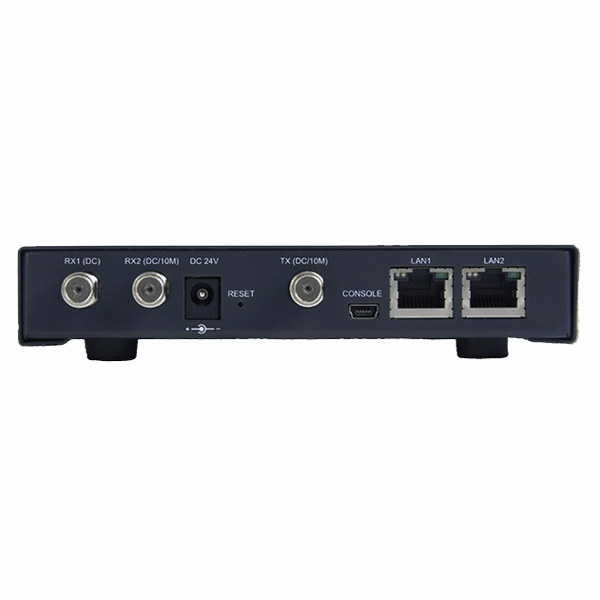

    UHP-200 Back
    UHP-200 Satellite Router
    UHP-200 front view
    UHP-200 Back

    UHP 200 Satellite Router

    • World’s fastest VSAT router with aggregate throughput up to 450 Mbps and powerful UHP-RTOS
    • Versatile network modes: SCPC, TDM/TDMA, Hubless TDMA, and more
    • Supports multiple frequency bands, including C, X, Ku, and Ka-band
    Category: Tags: , , , , ,

    This compact and powerful device, developed by UHP Networks, is the solution for delivering high-speed, reliable, and cost-effective connectivity to remote and hard-to-reach areas.

    The UHP-200 is a true testament to the advancements in satellite technology, boasting an impressive array of features that cater to the diverse needs of modern communication networks. With its software-defined architecture, the UHP-200 can seamlessly adapt to a wide range of network topologies, including point-to-point, star, mesh, and hubless TDMA configurations.

    Unparalleled Performance and Throughput

    At the heart of the UHP-200 lies its industry-leading processing capability, capable of handling up to 450 Mbps of aggregate traffic. This impressive performance is made possible by the device’s dual DVB demodulators, four TDMA burst demodulators, and a powerful IP router that can process over 190,000 IP packets per second (PPS).



    Specification Details
    NETWORK
    Topology Point-to-Point, Star, Dual-Gateway, Mesh
    Modes of Operation Software-defined router: SCPC, SCPC DAMA, TDM/SCPC, TDM/TDMA Star/Mesh, Hubless MF TDMA
    Network Role SCPC Modem, TDM/TDMA Terminal or Hub, Universal Controller of HTS Hub, Hubless Slave or Master
    Frequency Bands C, X, Ku, Ka, including multi-beam HTS satellites
    TDM (SCPC) CHANNEL MODULATOR
    Standard DVB-S2 / DVB-S2X with Adaptive Coding and Modulation
    Channels One universal SCPC/TDMA modulator
    Modulation QPSK, 8PSK, 16APSK, 32APSK, 64APSK; Roll-off: 5% or 20%
    FEC 1/4, 14/45, 1/3, 2/5, 9/20, 7/15, 1/2, 8/15, 11/20, 26/45, 3/5, 23/36, 2/3, 25/36, 32/45, 13/18, 3/4, 7/9, 4/5, 5/6, 77/90, 8/9, 13/45
    Symbol Rate 300 ksps – 65 Msps; step 1 ksps (51 Msps @32APSK, 43 Msps @64APSK)
    Data Rate 150 kbps – 225 Mbps
    QoS 8-level prioritization, traffic policies, CIR, MIR, group QoS, hierarchic traffic shaper, FAP
    TDMA CHANNEL MODULATOR
    Standard LDPC TDMA with Adaptive Coding and Modulation
    Channels One universal SCPC/TDMA modulator
    Modulation QPSK, 8PSK, 16APSK; Roll-off: 5%, 20%
    FEC 1/2, 2/3, 3/4, 5/6
    Symbol Rate 100 ksps – 8 Msps; step 1 ksps
    Data Rate 100 kbps – 26.7 Mbps
    TDMA Protocol Frame 50-1000 ms, 14 slot sizes, manageable minimal bandwidth; slot-to-slot fast MF-TDMA hopping
    QoS 8-level prioritization, traffic policies, CIR, MIR, group QoS, hierarchic traffic shaper, FAP
    ROUTER
    Performance Up to 190,000 packets per second
    Support DSCP, multiple IP/VLANs, NAT*, proxy ARP, L2 Bridging, TCP Acceleration, Jumbo frames, AES-256
    Protocols IPv4/IPv6*, IGMP, cRTP, SNMP, RIP, SNTP, TFTP, PPP, DHCP, DHCP Relay
    Management HTTP interface, SNMP, Telnet, NMS with VNO support
    INTERFACES
    User LAN 2 x Gigabit 10/100/1000 Base-T
    Maintenance Console miniUSB, B female
    IF Rx (two inputs) 950-2150 MHz; Ref. 10 MHz/+5 dBm [RX2]; 13.5/18 VDC 0.75A; F type
    IF Tx 950-2150 MHz; -46…-1 dBm; Ref. 10 MHz/+5 dBm; 24V/2A; F type
    MECHANICAL / ENVIRONMENTAL (IDU)
    Power 24 VDC or 100-240 VAC (external adaptor); 12 W
    Operating Temperature 00 … +500 C, humidity up to 90%
    Size / Weight 145 x 29 x 144 mm / 485 g





    The UHP-200’s advanced modulation and coding capabilities, including support for DVB-S2/S2X ACM with 5% or 20% roll-off, ensure highly efficient utilization of satellite bandwidth. This makes the router an ideal choice for High Throughput Satellite (HTS) networks, where maximizing bandwidth usage is crucial.

    Versatile Network Connectivity

    One of the standout features of the UHP-200 is its software-defined nature, allowing it to operate in a variety of network modes:

    • SCPC: The UHP-200 can function as an SCPC (Single Channel per Carrier) modem, providing point-to-point connectivity.
    • TDM/TDMA: The router can be deployed as a star or mesh TDM/TDMA terminal, or even as a fully-fledged TDM/TDMA hub with up to 4 inbound TDMA carriers.
    • Hubless TDMA: The UHP-200 can serve as a slave or master node in a hubless TDMA (Full Mesh) network, enabling efficient and decentralized communication.

    This versatility makes the UHP-200 an ideal solution for a wide range of applications, from enterprise connectivity and remote site integration to disaster response and maritime communications.

    Seamless Integration and Redundancy

    The UHP-200 is designed with seamless integration and redundancy in mind. With two Gigabit Ethernet user ports and a built-in switch, the device simplifies the connection of customer premises equipment (CPE) and enables easy scalability of the network.

    Furthermore, the UHP-200 offers industry-leading redundancy options, including 1:1 automatic redundancy without the need for external controllers or complex M:N Smart Redundancy configurations. This ensures uninterrupted service and maximum uptime, crucial for mission-critical applications.

    Advanced Features and Capabilities

    The UHP-200 is packed with a rich set of features and capabilities, making it a comprehensive solution for satellite communications:

    • Adaptive Coding and Modulation (ACM): The router supports ACM in both forward and return channels, including SCPC and TDMA modes, ensuring optimal performance in varying link conditions.
    • Quality of Service (QoS): The UHP-200 offers advanced QoS capabilities, including 8-level prioritization, traffic policies, Committed Information Rate (CIR), Maximum Information Rate (MIR), and hierarchical traffic shaping.
    • Protocols and Interfaces: The router supports a wide range of protocols, such as IPv4/IPv6, IGMP, cRTP, SNMP, RIP, and DHCP, and provides various interface options, including two Gigabit Ethernet ports and software-switchable IF inputs.
    • Network Management: The UHP-200 can be managed through a local web console, SNMP, Telnet, and a powerful Network Management System (NMS) with Virtual Network Operator (VNO) support.
