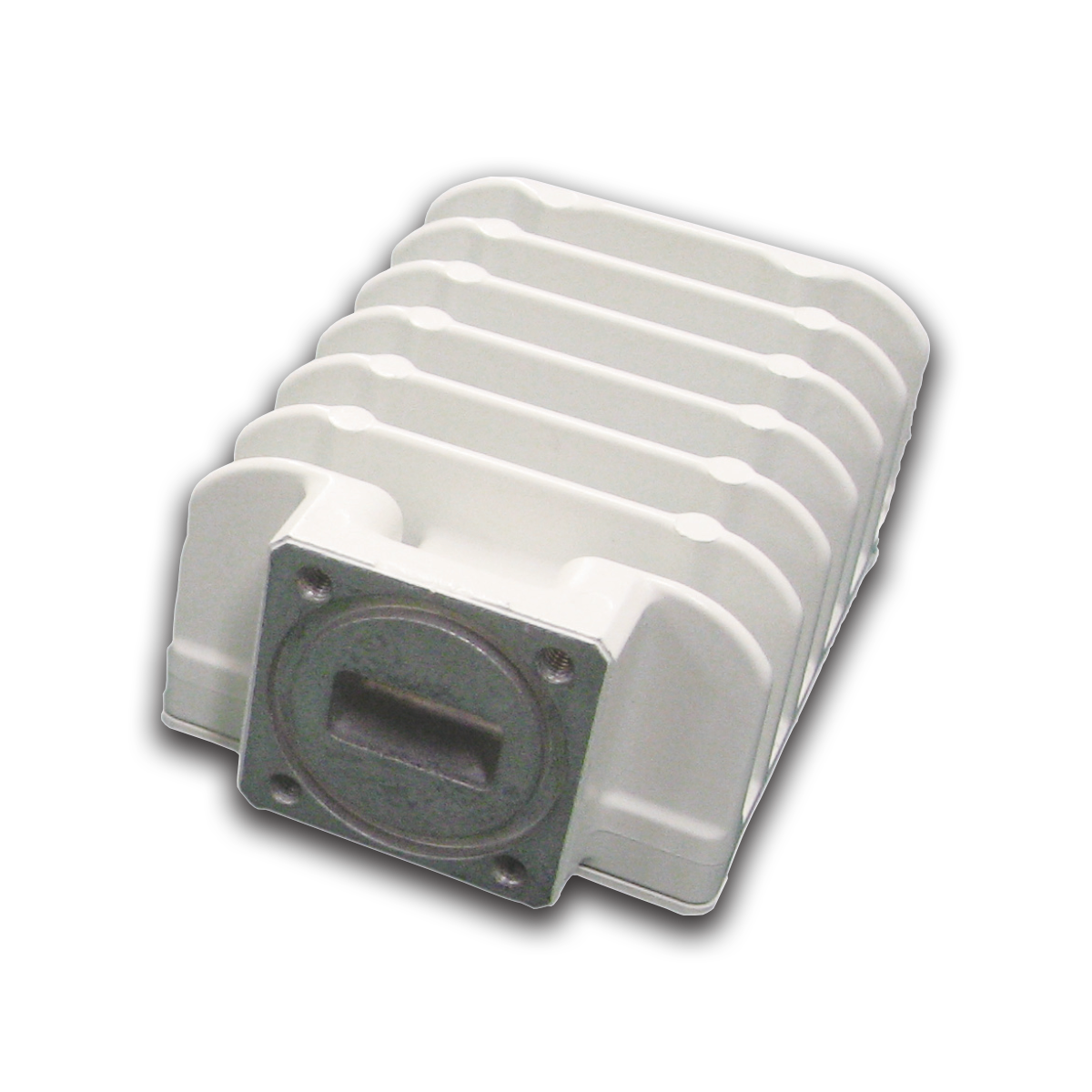

Name: BUC de 1.5W Banda Ku Padrão NJT8301, Frequência LO: 13,05 GHz, Frequência IF: 950 a 1.450 MHz
SKU: 11429
Availability: InStock

Parameter	Specifications
RF Output Interface	Waveguide, WR75 (with Groove)
IF Input Interface	– Coaxial Connector, N-type Female (50 Ω)
	– Coaxial Connector, F-type Female (75 Ω)
RF Frequency	– RF Frequency: 13.75 to 14.5 GHz
IF Frequency	– IF Frequency: 950 to 1,700 MHz
LO Frequency	– LO Frequency: 12.8 GHz
P1dB Output Power	– P1dB Output Power: +31 dBm min. over temperature
	(@ 1dB G.C.P.)
ACPR	– ACPR: -26 dBc typ. @ Pout = +31 dBm
Linear Gain	– Linear Gain: 55 dB typ., 48 dB min.
Input Power Voltage Requirement	– Input Power Voltage Requirement: +24 VDC (+12 to
	+30 VDC)
Power Consumption @ P1dB	– Power Consumption @ P1dB: 12 W typical, 14 W max.
Operating Temperature Range	– Operating Temperature Range: -40 to +55 ℃
Waterproof / Dustproof (IP-code)	– Waterproof / Dustproof (IP-code): IP67
Weight	– Weight: 350 g
Dimensions	– Dimensions (LxWxH): 91.55 x 68 x 42.5 mm
	(w/o Interfaces & Screws)

Description

Features

High Efficiency & Low Distortion Output Power

Small Size & Light Weight

Parameter	Specifications
Weight	350 g

Model No.	RF Frequency	Output Power	IF Connector
NJT8301UN	13.75 to 14.5 GHz	+31 dBm min. @ P1dB (1.5W)	N-type (50Ω)
NJT8301UF	13.75 to 14.5 GHz	+31 dBm min. @ P1dB (1.5W)	F-type (75Ω)
