Cabo OFC Universal Belden GCRHD48 MLT: Fios de Vidro + LSZH com 6 Tubos Ø1,9mm 48f MM OM3. CPR Eca
- Multi-Loose Tube construction for flexible and reliable performance
- Rodent protection with glass yarns
- LSZH outer jacket for low smoke and zero halogen emissions
- Suitable for indoor and outdoor use in a wide range of applications
The GCRHD48 is a universal (indoor/outdoor) dry core optical fiber Multi Loose Tube cable that features glass yarns as the strength member and a Low Smoke Zero Halogen (LSZH) outer jacket. This construction provides excellent rodent protection and makes the cable suitable for a variety of installation environments.
Key Specifications
| Specification | Details |
|---|---|
| Construction Type | Multi Loose Tube |
| Environmental Space | Indoor/Outdoor – Euroclass Eca |
| Suitable Applications | Structured (data) wiring systems, industrial backbone, campus backbone, building backbone (riser), and horizontal cabling; Outdoor and indoor use in networks for industrial, telecom, cable TV, and broadcast; Easy to install in ducts, tunnels, and tubes |
| Fiber Type | OM3 Multimode |
| Fiber Count | 48 |
| Fiber Color Coding | TIA coding (Gxxxxxx.T): Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Central Strength Member | GRP |
| Cable Core Water Tight | Yes |
| Cable Core Waterblocking | Waterblocking Glass Yarns + Tape |
| Bulk Cable Weight | 131 kg/km |
| Number of Active Subunits | 4 |
| Number of Subunit Positions | 6 |
| Fibers Per Subunit | 12 |
| Subunit Diameter | 1.9 mm |
| Subunit Waterblocking | Gel Filled |
| Outer Jacket Material | LSZH – Low Smoke Zero Halogen (Flame Retardant) |
| Outer Jacket Nominal Diameter | 11.0 mm |
| Outer Jacket Ripcord | Yes |
| Max. Attenuation at 1300 nm | 0.9 dB/km |
| Max. Attenuation at 850 nm | 2.9 dB/km |
Mechanical Characteristics
The GCRHD48 cable has been subjected to various mechanical tests to ensure its durability and performance in challenging environments. The key test results are summarized in the table below:
| Test Description | Tested Standard | Requirement/Value According to Family Specification |
|---|---|---|
| Cable Min. Bend Radius Installation (Short Term) | IEC 60794-1-21-E6 | 220 mm |
| Cable Min. Bend Radius Operation (Long Term) | IEC 60794-1-21-E11 | 165 mm |
| Cable Max. Tensile Strength Installation (Short Term) | IEC 60794-1-21-E1 | 6000 N (1349 lbf) |
| Cable Max. Tensile Strength Operation (Long Term) | IEC 60794-1-21-E1 | 2000 N (450 lbf) |
| Cable Max. Crush Resistance Installation (Short Term) | IEC 60794-1-21-E3 | 15 kN/m |
| Cable Max. Crush Resistance Operation (Long Term) | IEC 60794-1-21-E3 | 7.5 kN/m |
| Cable Impact Resistance | IEC 60794-1-21-E4 | 10 J, 300 mm Radius, 3 Cycles |
| Cable Torsion Resistance | IEC 60794-1-21-E7 | 180°, 2 m, 10 cycles |
Temperature Ratings
The GCRHD48 cable is designed to operate in a wide range of temperature conditions, ensuring reliable performance in various installation environments:
- Operating Temperature Range: -30°C to +70°C
- Installation Temperature Range: -5°C to +50°C
- Storage Temperature Range: -30°C to +70°C
Standards and Certifications
The GCRHD48 cable meets or exceeds the following standards and certifications:
- IEC Flammability: IEC 60332-1-2
- Reaction to Fire – Bundle Flame Test: IEC 60332-3-24
- IEC 60754-1 – Halogen Amount: Zero
- IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 10 µS/mm
- IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
- IEC 61034-2 – Smoke Density Min. Transmittance: 60%
- CPR Euroclass: Eca
- REACH: Compliant
- ISO/IEC Compliance: IEC 60794-1-1
- EU Directive 2011/65/EU (RoHS 2): Compliant
- UV/Sunlight Protection: Yes
By meeting these stringent standards and certifications, the GCRHD48 cable ensures safety, reliability, and compliance in a wide range of installation environments.
Belden GCRHD48 Optical Fiber Multi Loose Tube cable in UAE, Belden GCRHD48 in UAE, GCRHD48 in UAE, Belden GCRHD48 MLT Cable in UAE, Buy Belden GCRHD48 Optical Fiber Multi Loose Tube cable in UAE, Belden GCRHD48 Optical Fiber Multi Loose Tube cable Shop in UAE, Belden GCRHD48 Optical Fiber Multi Loose Tube cable in Dubai, Belden GCRHD48 in Dubai, GCRHD48 in Dubai, Belden GCRHD48 MLT Cable in Dubai, Buy Belden GCRHD48 Optical Fiber Multi Loose Tube cable in Dubai, Belden GCRHD48 Optical Fiber Multi Loose Tube cable Shop in Dubai, Belden GCRHD48 Optical Fiber Multi Loose Tube cable in Abu Dhabi, Belden GCRHD48 in Abu Dhabi, GCRHD48 in Abu Dhabi, Belden GCRHD48 MLT Cable in Abu Dhabi, Buy Belden GCRHD48 Optical Fiber Multi Loose Tube cable in Abu Dhabi, Belden GCRHD48 Optical Fiber Multi Loose Tube cable Shop in Abu Dhabi, Belden GCRHD48 Optical Fiber Multi Loose Tube cable in Sharjah, Belden GCRHD48 in Sharjah, GCRHD48 in Sharjah, Belden GCRHD48 MLT Cable in Sharjah, Buy Belden GCRHD48 Optical Fiber Multi Loose Tube cable in Sharjah, Belden GCRHD48 Optical Fiber Multi Loose Tube cable Shop in Sharjah, Belden GCRHD48 Optical Fiber Multi Loose Tube cable in Al Ain, Belden GCRHD48 in Al Ain, GCRHD48 in Al Ain, Belden GCRHD48 MLT Cable in Al Ain, Buy Belden GCRHD48 Optical Fiber Multi Loose Tube cable in Al Ain, Belden GCRHD48 Optical Fiber Multi Loose Tube cable Shop in Al Ain,

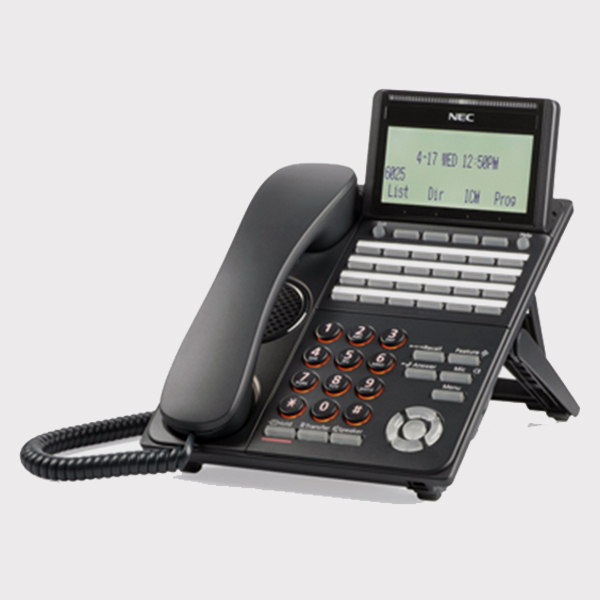

![Modelo NEC nº DTK-24D-1P [BK] Tel](https://bravosatcom.com/wp-content/uploads/2025/07/NEC_DTK-24D-1P-BK-TEL-1-3.jpg)
