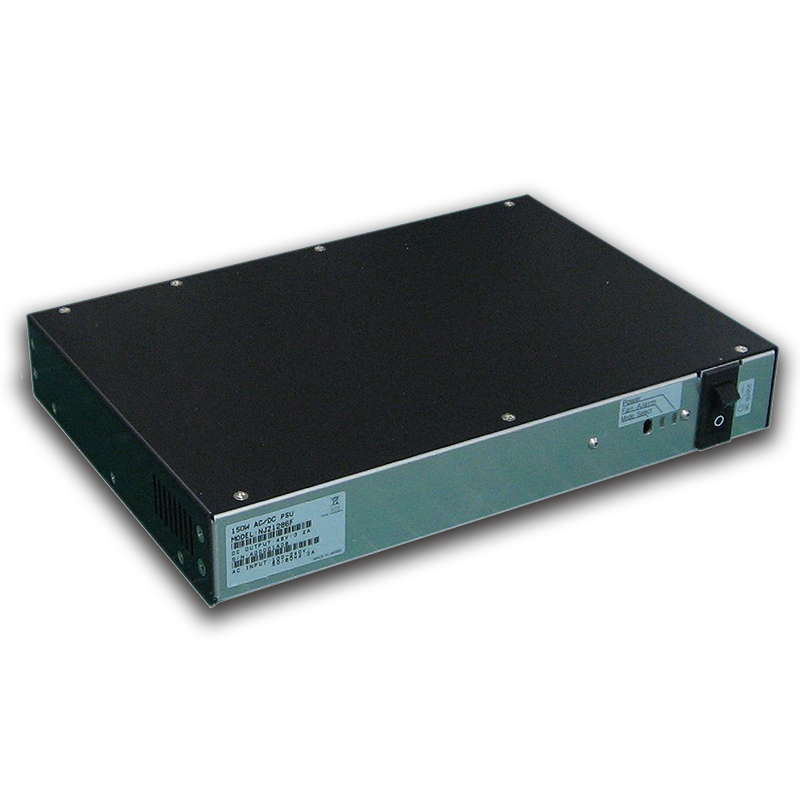

Name: Fonte de Alimentação de 150W, Tipo Interno NJZ1286, Potência LO: 200 VA, Frequência IF: 50 / 60 Hz
SKU: 11441
Availability: InStock

Parameter	Specifications
Input AC Power Interface	IEC320-C14 Inlet
Output DC Power Interface	– Coaxial Connector, N-type Female (50 Ω)
	– Coaxial Connector, F-type Female (75 Ω)
Input AC Power Voltage Range	– Specified Value: 100 to 240 VAC
	– Maximum Rated Value: 90 to 264 VAC
Input AC Power Frequency	50 / 60 Hz
Input AC Power Consumption	200 VA
Output DC Power Voltage	+48 V ± 10%
Output DC Power Capacity	150 W max.
Supported IF Frequency Range	950 to 1,700 Hz
Operating Temperature Range	0 to +50 ℃
Weight	1.6 kg
Dimensions	– (L) 290 x (W) 200 x (H) 44 mm
	(w/o Interfaces & Screws)

Specifications Overview

Others

Series Line-up

Model No.	Power Supply Characteristic	IF Connector	Applicable BUCs
NJZ1286N	+48 VDC / 150 W max.	N-type (50Ω)	NJT5118series →
			NJT5218series →
NJZ1286F	+48 VDC / 150 W max.	F-type (75Ω	NJT5762series →
			NJT5763series →
			NJT5764series →
			NJT8318series →
