LNB e filtro passa‑banda C‑band – 5G
Em stock (pode ser encomendado sem stock)
RF Chain Specifications
| Parameter | Specification |
|---|---|
| Noise Temperature | 37K typ., 60K max. at room temp. @ CF |
| Phase Noise (SSB) | -80 dBc/Hz at 1kHz<br> -85 dBc/Hz at 10kHz<br> -95 dBc/Hz at 100kHz |
| Input VSWR | 2.2 : 1 max. |
| Output VSWR | 2.5 : 1 max. |
| Gain | 60 dB typ., 55 dB min., 70 dB max. |
| Gain Flatness | ≤ 6 dB p-p (over full band) |
| Output P1dB | + 9 dBm min. |
| Interference Rejection | Signal -25 dBm max. with |
Power Specifications
| Parameter | Specification |
|---|---|
| DC Power | +12V to +24V DC |
| Current | 400 mA max. |
| Input (waterproof) | CPR229G waveguide grooved |
| Output (waterproof) | – F-Connector (75 Ohm)<br> – N-Connector (50 Ohm) |

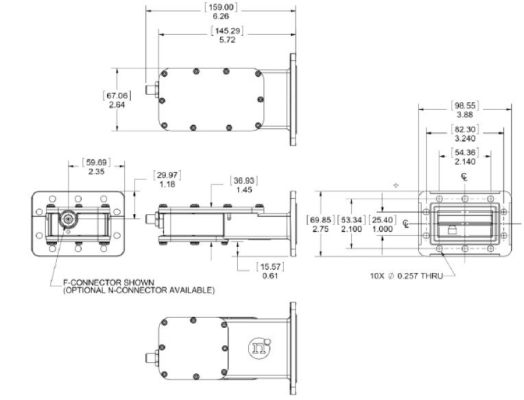

| Dimensions (L x W x H) | 159 mm x 98.5 mm x 70mm (F connector)<br> (6.26 in x 3.88 in x 2.75 in) |
| Weight | 500 g (17.64 oz) |
| Operating Temperature | -40 to +60°C |
| Storage Temperature | -50 to +70°C |
FREQUENCY BANDS
| Option 1 | Option 2 | Option 3 | Option 4 | Option 5 | Option 6 | Option 7 | Option 8 |
|---|---|---|---|---|---|---|---|
| Frequency Band (GHz) | 3.70 – 4.20 | 3.625 – 4.20 | 3.754 – 4.20 | 3.80 – 4.20 | 3.90 – 4.20 | 4.00 – 4.20 | 4.10 – 4.20 |
| L.O. Frequency (GHz) | 5.15 | 5.15 | 5.15 | 5.15 | 5.15 | 5.15 | 5.15 |
| IF Frequency (MHz) | 950 – 1450 | 950 – 1525 | 950 – 1396 | 950 – 1350 | 950 – 1250 | 950 – 1150 | 950 – 1050 |
| Rejection Range | < 3.6 GHz and > 4.8 GHz | < 3.525 GHz and > 4.8 GHz | < 3.654 GHz and > 4.8 GHz | < 3.7 GHz and > 4.8 GHz | < 3.8 GHz and > 4.8 GHz | < 3.9 GHz and > 4.8 GHz | < 4.0 GHz and > 4.8 GHz |
LNB and Band Pass Filter, Norsat 3000F-BPF-1 supplier, Norsat 3000F-BPF-1 Band Pass Filter supplier, Norsat LNB 3000F-BPF-1 supplier, Norsat Band Pass Filter 3000F-BPF-1 supplier, Norsat 3000F-BPF-1 Band Pass Filter supplier, Band Pass Filter 3000F-BPF-1 supplier, LNB and Band Pass Filter, Norsat 3000F-BPF-1 price, Norsat 3000F-BPF-1 Band Pass Filter price, Norsat LNB 3000F-BPF-1 price, Norsat Band Pass Filter 3000F-BPF-1 price, Norsat 3000F-BPF-1 Band Pass Filter price, Band Pass Filter 3000F-BPF-1 price, LNB and Band Pass Filter, Norsat 3000F-BPF-1 for sale, Norsat 3000F-BPF-1 Band Pass Filter for sale, Norsat LNB 3000F-BPF-1 for sale, Norsat Band Pass Filter 3000F-BPF-1 for sale, Norsat 3000F-BPF-1 Band Pass Filter for sale, Band Pass Filter 3000F-BPF-1 for sale.
| Dimensões (C x L x A) | 15.9 × 9.85 × 7 cm |
|---|---|
| Brand | Norsat |
| Stock Code | 3000F-BPF-1 |
| Impedance | 75 Ohm |
| RF Input | CPR 229G waveguide grooved |
| RF Output | F Type |
| Temperature Operational | -40 to +60?C |
| Temperature Storage | -50 to +70?C |
