TC-400-SF-X, SMA-Fêmea (Jack), Reto, Soldado, Crimpado, Tipo Conector para Cabo Coaxial LMR 400

Name: TC-400-SF-X, SMA-Fêmea (Jack), Reto, Soldado, Crimpado, Tipo Conector para Cabo Coaxial LMR 400
SKU: 11381
Availability: InStock

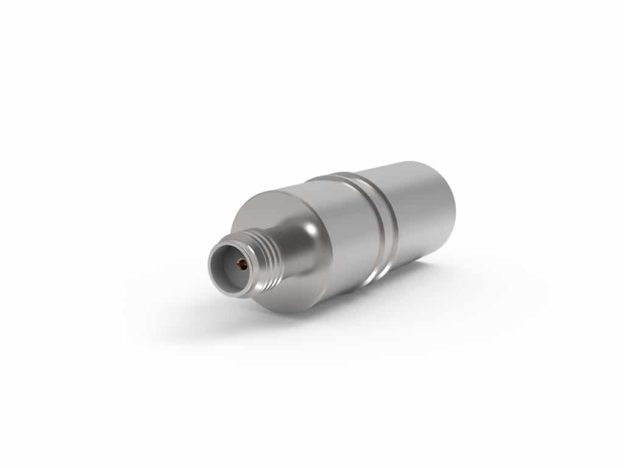

Type SMA, female (jack), straight, TC style connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables.

Em stock (pode ser encomendado sem stock)

Categorias: Connectors, SMA Etiquetas: LMR 400 connetor, SMA Connector, TC-400-SF-X

Descrição
Informação adicional

The TC-400-SF-X is an excellent choice for stranded center conductors thanks to its solder-pin connector. The SMA connector is a low-profile, high-performance, threaded coaxial RF connection.

Peso	0.022 kg
Dimensões (C x L x A)	2.97 × 1.27 × 1.27 cm
Brand	Times Microwave System
Interface	SMA
Gender	female (jack)
Orientation	straight
PIM Rating	N/A
Max Frequency (GHz)	6
VSWR Freq	<1.30:1
VSWR Frequency (GHz)	2.5
Inner Contact Attach	Solder
Outer Contact Attach	Crimp
Body Finish	Alballoy
Pin Finish	Gold
