Ubiquiti NanoBeam M5

Compact all-in-one form factor with ball-joint mounting for easy installation.
airMAX TDMA protocol, dual-polarization, high-gain antenna for reliable long-range links.
Seamless integration with Ubiquiti’s airOS, airView, and airControl for complete network management.E-M5-16 For Sale,

Descrição
Informação adicional

The Ubiquiti NanoBeam M5 is a high-performance airMAX bridge designed to provide reliable and efficient wireless connectivity for a variety of applications. With its innovative mechanical design, advanced RF technology, and seamless integration with Ubiquiti’s software ecosystem, the NanoBeam M5 is a versatile solution for delivering high-speed, carrier-class links.

Innovative Mechanical Design

The NanoBeam M5 features an all-in-one design that combines the radio and antenna in a compact footprint, maximizing efficiency and minimizing the required installation space. Key design elements include:

Feature	Benefit
Quick and Easy Installation	The NanoBeam M5 can be pole-mounted without any fasteners, and wall-mounted with a single wall fastener (not included), making installation a breeze.

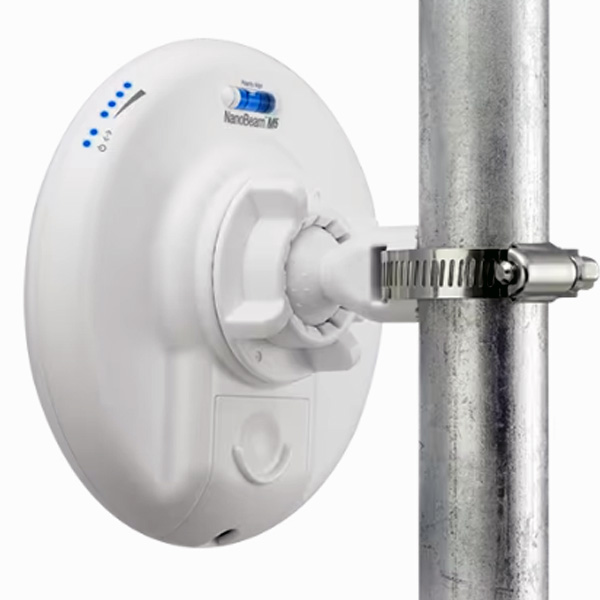

Convenient Alignment	The NanoBeam M5 pivots on a ball joint, allowing for easy aiming and precise adjustment of the wireless connection.
Compact Form Factor	The integrated radio and antenna occupy a small, discreet form factor that can blend seamlessly into the background at customer locations.

Advanced RF Technology

The NanoBeam M5 leverages Ubiquiti’s cutting-edge RF technology to deliver superior performance and noise immunity. Key features include:

Uniform Beamwidth: The NanoBeam M5 directs RF energy in a tighter beamwidth, which helps to block or spatially filter out noise, improving the signal-to-noise ratio and overall noise immunity.
Dual Linear Polarization: The NanoBeam M5 employs dual linear polarization, enabling greater flexibility in aligning the wireless connection and optimizing signal quality.
Maximized Gain: The integrated design of the radio and antenna allows the NanoBeam M5 to achieve maximum gain within a compact footprint.

Wireless Specifications

The NanoBeam M5 is available in two models, the NBE-M5-16 and the NBE-M5-19, each with distinct wireless specifications:

NBE-M5-16

Specification	Value
Dimensions	140 x 140 x 54 mm (5.51 x 5.51 x 2.13″)
Weight	0.320 kg (0.71 lb)
Power Supply	24V, 0.5A PoE
Max. Power Consumption	6W
Operating Frequency	Worldwide: 5150 – 5875 MHz <br> USA: U-NII-1, U-NII-2A, U-NII-2C, U-NII-3
Gain	16 dBi
Networking Interface	(1) 10/100 Ethernet Port
Processor Specs	Atheros MIPS 74Kc, 560 MHz
Memory	64 MB DDR2, 8 MB Flash
Max. VSWR	1.5:1
Channel Sizes	5/8/10/20/30/40 MHz
Polarization	Dual Linear

NBE-M5-19

Specification	Value
Dimensions	189 x 189 x 125 mm (7.44 x 7.44 x 4.92″)
Weight	0.530 kg (1.17 lb)
Power Supply	24V, 0.5A PoE
Max. Power Consumption	8W
Operating Frequency	Worldwide: 5150 – 5875 MHz <br> USA: U-NII-1, U-NII-2A, U-NII-2C, U-NII-3
Gain	19 dBi
Networking Interface	(1) 10/100 Ethernet Port
Processor Specs	Atheros MIPS 74Kc, 560 MHz
Memory	64 MB DDR2, 8 MB Flash
Max. VSWR	1.5:1
Channel Sizes	5/8/10/20/30/40 MHz
Polarization	Dual Linear

Both the NBE-M5-16 and NBE-M5-19 models support the following wireless standards and data rates:

802.11a: 6 – 54 Mbps
802.11n/airMAX: MCS0 – MCS15

The NanoBeam M5 models also feature software-adjustable signal strength LEDs that can be customized to correspond to specific RSSI levels, providing a visual indication of the wireless link quality.

airMAX Technology

The NanoBeam M5 is equipped with Ubiquiti’s proprietary airMAX technology, which utilizes Time Division Multiple Access (TDMA) to provide significant performance improvements in latency, throughput, and scalability compared to standard Wi-Fi protocols.

The airMAX TDMA protocol allows each client to send and receive data using pre-designated time slots, scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency, ensuring optimal performance for a wide range of applications, including VoIP and video streaming.

Software Integration

The NanoBeam M5 is seamlessly integrated with Ubiquiti’s comprehensive software ecosystem, providing advanced management and monitoring capabilities:

airOS: The intuitive airOS firmware enables high-performance, outdoor multi-point networking with features like Ubiquiti Channelization, Spectral Width Adjustment, and Multi-Language Support.
airView: Integrated into all Ubiquiti M-series products, airView provides advanced spectrum analyzer functionality, including waterfall, waveform, and real-time spectral views, allowing operators to identify and mitigate noise interference.
airControl: A powerful, web-based network management application that enables centralized control and monitoring of Ubiquiti device networks, including features like network mapping, device status monitoring, mass firmware upgrades, and task scheduling.

Applications and Use Cases

The Ubiquiti NanoBeam M5 is a versatile solution that can be deployed in a variety of wireless networking applications, including:

Point-to-Point (PtP) Links: The NanoBeam M5 can be used on both sides of a PtP link to establish high-speed, carrier-class wireless connections.
Point-to-Multipoint (PtMP) Client Links: The NanoBeam M5 can serve as a customer premises equipment (CPE) device for clients in an airMAX PtMP network.
Wireless Backhaul: The NanoBeam M5’s long-distance capabilities and high-speed performance make it an ideal choice for wireless backhaul applications.

The Ubiquiti NanoBeam M5 is a powerful and innovative airMAX bridge that delivers exceptional wireless performance, reliability, and ease of use. With its advanced RF technology, seamless software integration, and versatile design, the NanoBeam M5 is a compelling choice for a wide range of wireless networking applications, from point-to-point links to multi-point client connections. By leveraging the NanoBeam M5’s capabilities, network operators can establish reliable, high-speed wireless links that meet the demands of today’s data-intensive applications and future-proof their infrastructure.
