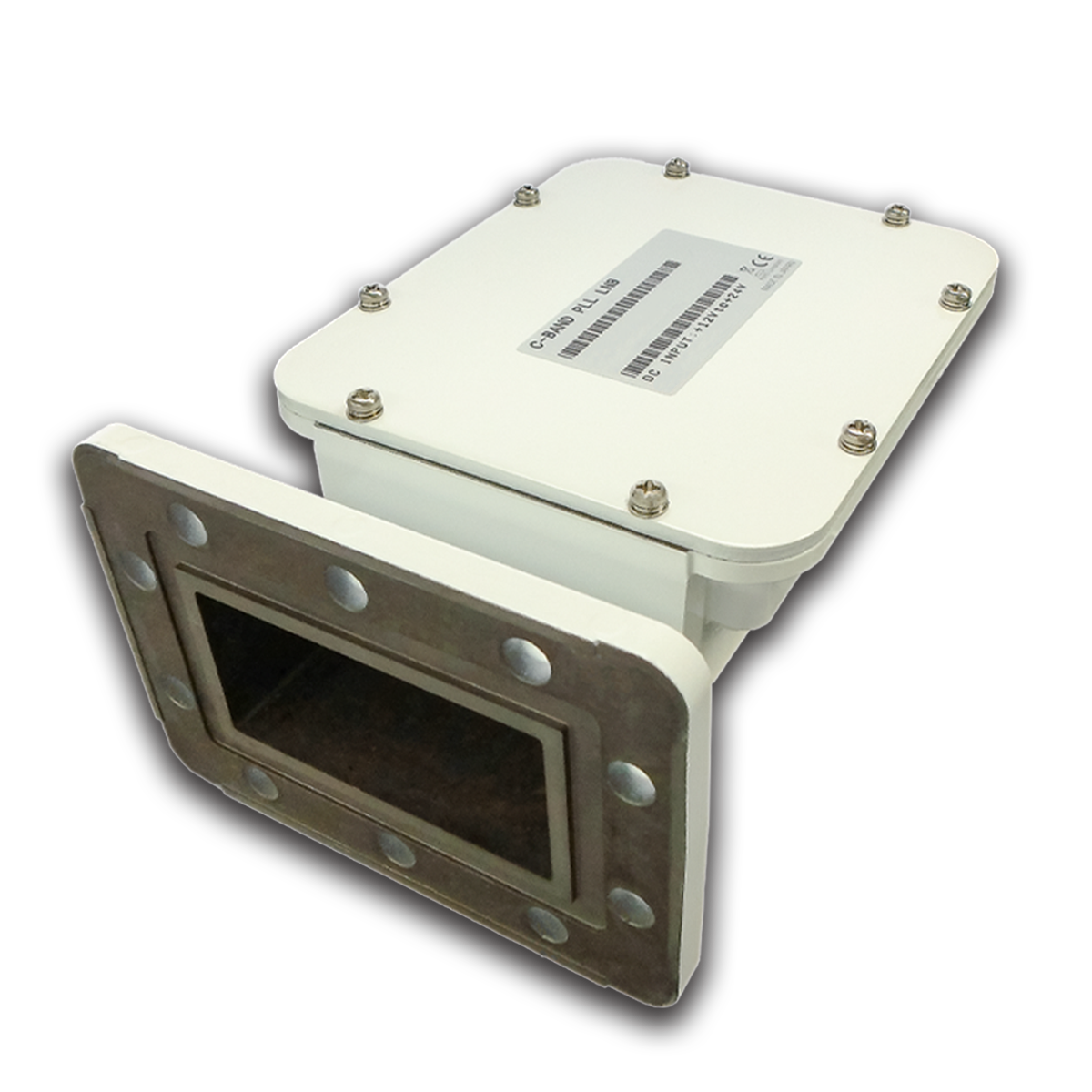

Name: Стандартный C-бэнд PLL LNB - внутренняя опорная, фланцевого типа NJS8497, частота LO: 5.15 ГГц, частота IF: 950–1525 МГц
SKU: 11025
Availability: InStock

Стандартный C-бэнд PLL LNB – внутренняя опорная, фланцевого типа NJS8497, частота LO: 5.15 ГГц, частота IF: 950–1525 МГц

В наличии

Parameter	Specifications
RF Input Interface	Waveguide, CPR229 (with Groove)
IF Output Interface	– Coaxial Connector, N-type Female (50 Ω)
	– Coaxial Connector, F-type Female (75 Ω)
RF Frequency	– RF Frequency: 3.625 to 4.2 GHz
IF Frequency	– IF Frequency: 950 to 1,525 MHz
LO Frequency	– LO Frequency: 5.15 GHz
Linear Gain	– Linear Gain: 67 dB typ., 59 dB min.
Noise Temperature(NT)	– Noise Temperature (NT): 15 K typ., 30 K max.
Input Power Voltage Requirement	– +24 VDC (+12 to +24 VDC)
Current Consumption	– 350 mA max.
Operating Temperature Range	– Operating Temperature Range: -40 to +60 ℃
Waterproof / Dustproof (IP-code)	– Waterproof / Dustproof (IP-code): IP67
Weight	– Weight: 670 g
Dimensions	– Dimensions (LxWxH): 144.5 x 98.4 x 69.9 mm
	(w/o Interfaces & Screws)

Frequency Organization

Parameter	Specifications
RF Frequency	3.625 to 4.2 GHz
IF Frequency	950 to 1,525 MHz
LO Frequency	5.15 GHz

Low Noise Performance

Parameter	Specifications
Noise Temperature	15 K typ.

LO Frequency Stability Line-up

Parameter	Specifications
H-type	+/- 10 ppm (+/- 50 kHz typ.)
S-type	+/- 3 ppm (+/- 15 kHz typ.)
U-type	+/- 1 ppm (+/- 5 kHz typ.)
V-type	+/- 0.3 ppm (+/- 1.5 kHz typ.)

Small Size & Light Weight

Parameter	Specifications
Weight	670 g

Others

RoHS Compliance

Series Line-up

Model No.	RF Frequency	ReferencE-type	LO Frequency Stability	IF Connector
NJS8497HF	3.625 to 4.2 GHz	Internal Ref.	+/- 10 ppm (+/- 50 kHz typ.)	F-type (75Ω)
NJS8497HN	3.625 to 4.2 GHz	Internal Ref.	+/- 10 ppm (+/- 50 kHz typ.)	N-type (50Ω)
NJS8497SF	3.625 to 4.2 GHz	Internal Ref.	+/- 3 ppm (+/- 15 kHz typ.)	F-type (75Ω)
NJS8497SN	3.625 to 4.2 GHz	Internal Ref.	+/- 3 ppm (+/- 15 kHz typ.)	N-type (50Ω)
NJS8497UF	3.625 to 4.2 GHz	Internal Ref.	+/- 1 ppm (+/- 5 kHz typ.)	F-type (75Ω)
NJS8497UN	3.625 to 4.2 GHz	Internal Ref.	+/- 1 ppm (+/- 5 kHz typ.)	N-type (50Ω)
NJS8497VF	3.625 to 4.2 GHz	Internal Ref.	+/- 0.3 ppm (+/- 1.5 kHz typ.)	F-type (75Ω)
NJS8497VN	3.625 to 4.2 GHz	Internal Ref.	+/- 0.3 ppm (+/- 1.5 kHz typ.)	N-type (50Ω)
