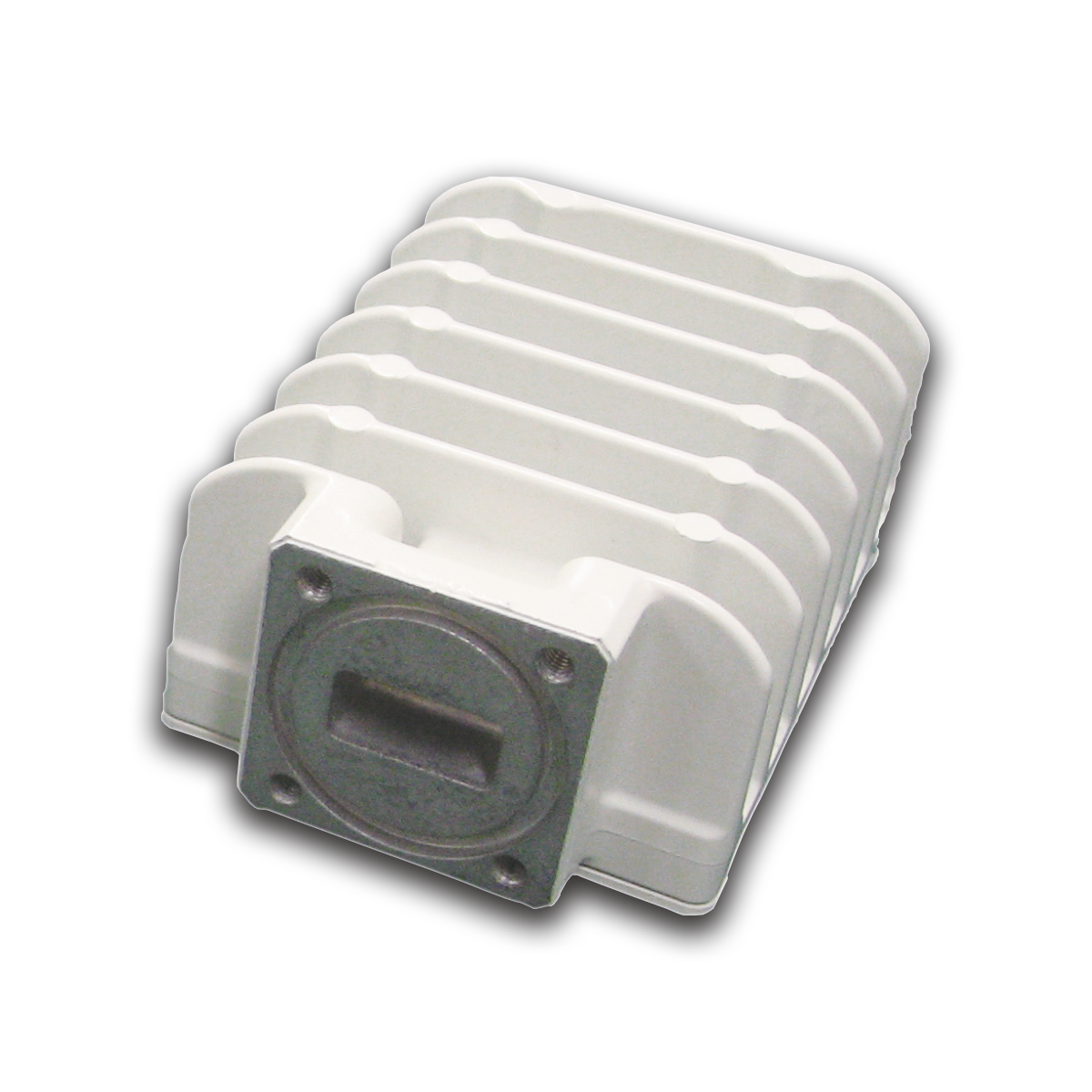

Name: Стандартный Ku-бэнд 3 Вт BUC NJT8302, частота LO: 13.05 ГГц, частота IF: 950–1450 МГц
SKU: 11035
Availability: InStock

Стандартный Ku-бэнд 3 Вт BUC NJT8302, частота LO: 13.05 ГГц, частота IF: 950–1450 МГц

В наличии

Parameter	Specifications
RF Output Interface	Waveguide, WR75 (with Groove)
IF Input Interface	– Coaxial Connector, N-type Female (50 Ω)
	– Coaxial Connector, F-type Female (75 Ω)
Frequency Ranges	– RF Frequency: 14.0 to 14.5 GHz
	– IF Frequency: 950 to 1,450 MHz
	– LO Frequency: 13.05 GHz
Power and Performance	– P1dB Output Power: +34 dBm min. over temperature
	(@ 1dB G.C.P.)
	– ACPR: -26 dBc typ. @ Pout = +34 dBm
	– Linear Gain: 58 dB typ., 51 dB min.
Power Supply	– Input Power Voltage Requirement: +24 VDC (+12
	to +30 VDC)
	– Power Consumption @ P1dB: 18 W typ., 23 W max.
Environmental Conditions	– Operating Temperature Range: -40 to +55 ℃
	– Waterproof / Dustproof (IP-code): IP67
Physical Characteristics	– Weight: 350 g
	– Dimensions (LxWxH): 91.55 x 68 x 42.5 mm
	(w/o Interfaces & Screws)
