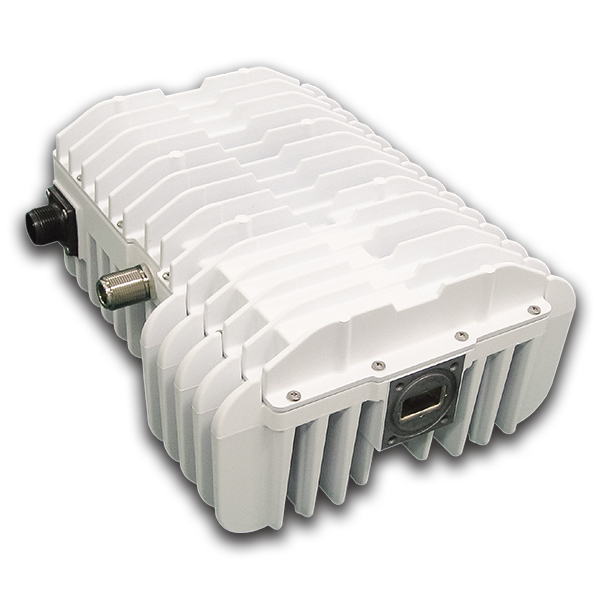

Name: Стандартный Ku-бэнд 8 Вт BUC NJT5118, частота LO: 13.05 ГГц, частота IF: 950–1450 МГц
SKU: 11027
Availability: InStock

Стандартный Ku-бэнд 8 Вт BUC NJT5118, частота LO: 13.05 ГГц, частота IF: 950–1450 МГц

В наличии

Parameter	Specifications
RF Output Interface	– Waveguide, WR75 (with Groove)
IF Input Interface	– Coaxial Connector, N-type Female (50 Ω)
	– Coaxial Connector, F-type Female (75 Ω)
RF Frequency	– RF Frequency: 14.0 to 14.5 GHz
IF Frequency	– IF Frequency: 950 to 1,450 MHz
LO Frequency	– LO Frequency: 13.05 GHz
P1dB Output Power	– P1dB Output Power: +39 dBm min. over temperature
ACPR	– ACPR: -28 dBc typ. @ Pout = +38 dBm
Linear Gain	– Linear Gain: 65 dB nom., 59 dB min.
Input Power Voltage Requirement	– +24 / +48 VDC (+18 to +60 VDC) [DC Power Models]
	– 90 to 264 VAC [AC Power Models]
Power Consumption	– Power Consumption: 79 W typ., 93 W max. (@ P1dB)
Operating Temperature Range	– Operating Temperature Range: -40 to +55 ℃
Waterproof / Dustproof (IP-code)	– Waterproof / Dustproof (IP-code): IP67
Weight	– Weight: 3.2 kg
Dimensions	– Dimensions (LxWxH): 219.5 x 175 x 99 mm
	(w/o Interfaces & Screws)

Frequency Organization

High Efficiency & Low Distortion Output Power

Power Requirement Line-up

Others

Series Line-up

Model No.	RF Frequency	Output Power	IF Connector	Power Requirement
NJT5118N	14.0 to 14.5 GHz	+39 dBm min.	N-type (50Ω)	Power Supplied from IF Connector
NJT5118F	14.0 to 14.5 GHz	+39 dBm min.	F-type (75Ω)
NJT5118NM	14.0 to 14.5 GHz	+39 dBm min.	N-type (50Ω)	Power Supplied from MS Connector
NJT5118FM	14.0 to 14.5 GHz	+39 dBm min.	F-type (75Ω)
NJT5118NA	14.0 to 14.5 GHz	+39 dBm min.	N-type (50Ω)	Power Supplied by AC/DC PSU
NJT5118FA	14.0 to 14.5 GHz	+39 dBm min.	F-type (75Ω)
