Skyware Global 1.2 м система антенн класса I для приема/передачи
- Elevation over Azimuth Mount
- Mast Pipe Compatibility
- High Wind Resistance
- Temperature Tolerance
- Cross-Pol Performance
- Quality Assurance
- Environmentally Friendly
- Precision Reflector
- Feed Options
- Durable Construction
- Class I Design
- Marinised Version

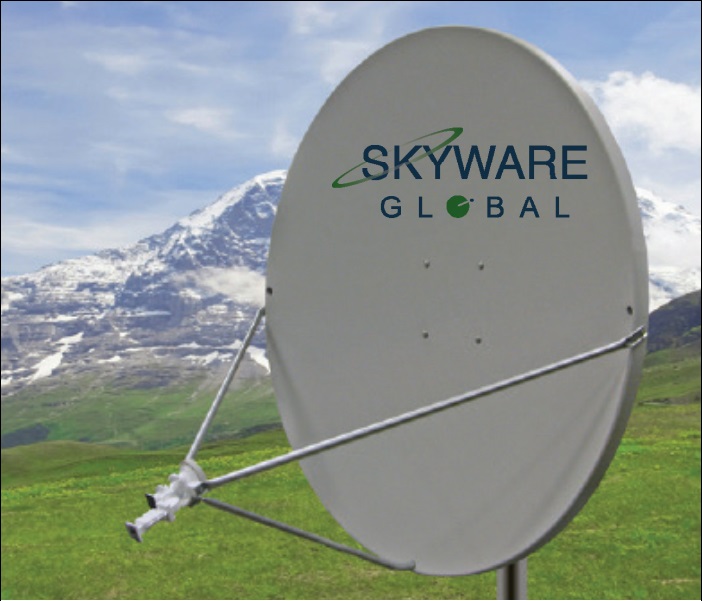

The Skyware Global 1.2m Rx/Tx Class I Antenna System is a top-tier solution for various communication needs. It offers a range of features and benefits that make it a versatile choice for both terrestrial and marine applications.
Benefits
The Skyware Global 1.2m Rx/Tx Class I Antenna System comes with a host of benefits that make it a standout choice:
- Precise Aiming
- Mast Compatibility
- Extreme Weather Resistance
- Cross-Pol Performance
- Quality Assurance
- Environmentally Friendly
- Durable Build
- Feed Options
- Easy Installation
- Corrosion Resistance
- Wide Application Range
- Marine-Ready
| Type Approval Information | Specification |
|---|---|
| Antenna Model | 62-1225401/02(See Our Website for a Complete List of Type Approvals) |
| RF Performance | Specification |
|---|---|
| Effective Aperture | 1.2m (48 in) |
| Operating Frequency | TX: 13.75-14.50GHz |
| RX: 10.70-12.75GHz | |
| Polarization | Linear, Orthogonal (Co-Pol Optional) |
| Gain (±0.3 dB) | TX: 43.3 dBi @ 14.3GHz |
| RX: 41.8 dBi @ 12.0GHz | |
| 3 dB Beamwidth | TX: 1.2° @ 14.3GHz |
| RX: 1.5° @ 12.0GHz | |
| Sidelobe Envelope (Tx, Co-Pol) | Mainbeam < q < 20°: 29-25 log q dBi |
| 20° < q < 26.3°: -3.5 dBi | |
| 26.3° < q < 48°: 32-25 log q dBi | |
| 48° < q < 180°: -10 dB | |
| Antenna Cross-Polarization | 30 dB in 1 dB |
| Antenna Noise Temperature | Specification |
|---|---|
| 10° EL | 48°K |
| 20° EL | 35°K |
| 30° EL | 29°K |
| VSWRTX | 1.3:1 |
| RX | 1.5:1 |
| Isolation (Port to Port) | Specification |
|---|---|
| TX | 90 dB |
| RX | 40 dB |
| Feed Interface | Specification |
|---|---|
| TX | WR75 Flat Flange |
| RX | WR75 Flat Flange |
| Mechanical Performance | Specification |
|---|---|
| Reflector Material | Glass Fiber Reinforced Polyester |
| Antenna Optics | One-Piece Offset Feed Prime Focus |
| Mount Type | Elevation over Azimuth |
| Elevation Adjustment Range | 8°-90° Continuous Fine Adjustment |
| Azimuth Adjustment Range | 360° Continuous ± 5° Fine Adjustment |
| Mast Pipe Interface | 73-76mm (2.88in-3.00in) Diameter |
| Environmental Performance | Specification |
|---|---|
| Wind Loading | Operational: 45mph (72km/h) |
| Functional Survival: 80mph (128km/h) | |
| Ultimate Survival: 125mph (200km/h) | |
| Operational Temperature | -40°C to +60°C |
| Survival Temperature | -50°C to +80°C |
| Humidity | 0 to 100% (Condensing) |
| Atmosphere | Standard Hardware 500 Hrs |
| SST Requirements (ASTM B-117) | Marinised Option has AISI 316 Stainless Steel Hardware |
| Solar Radiation | 360 BTU/h/ft2 |
| Shock and Vibration | As Encountered during Shipping and handling |
