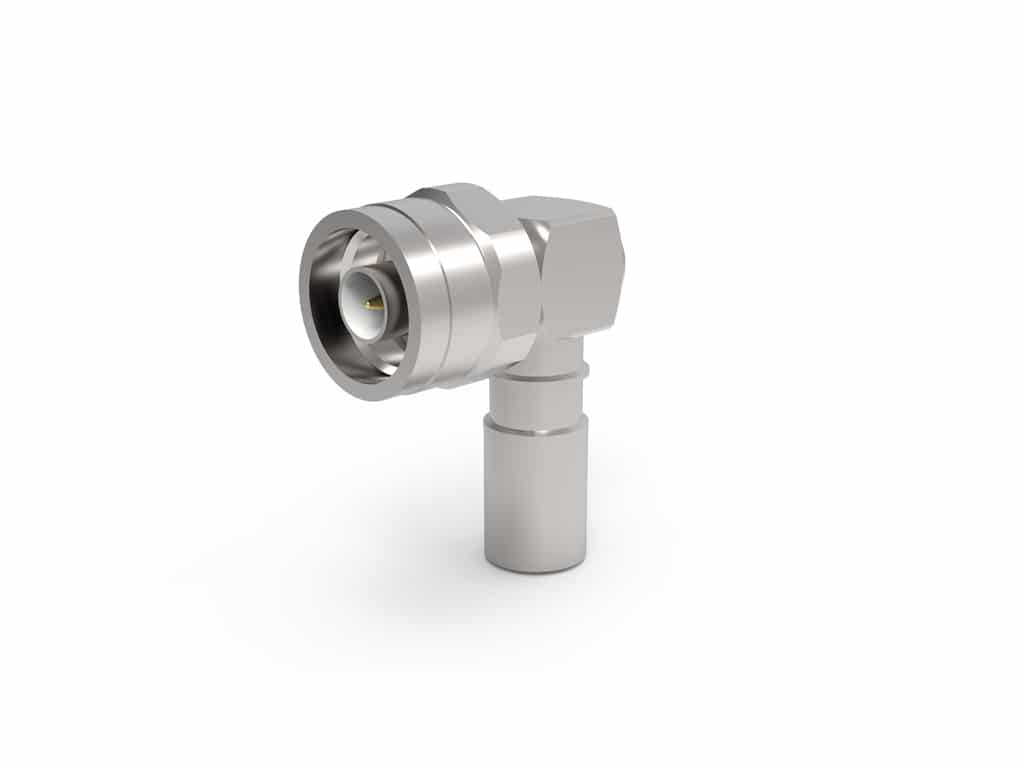

TC-400-NMH-RA-D, разъем N-Male (вилка), под углом 90°, пайка, обжимной, для коаксиального кабеля LMR 400
N male (plug) right angle TC connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400 type cables. The TC-400-NMH-RA-D features a solder-pin connector and is a perfect option for stranded center conductors.
В наличии (может быть предзаказано)
The Type N is an all-weather RF connector of medium size and is ideal for applications where high standards of RF and mechanical performance are required.
They’re threaded to couple securely and are compatible with any N-Type connector meeting the MIL-C-39012 standard. Right-angle male (plug) connector for 400-series cables.
| Вес | 0.059 кг |
|---|---|
| Габариты | 4.6 × 3.18 × 3.18 см |
| Brand | Times Microwave System |
| Interface | N |
| Gender | male (plug) |
| Orientation | right angle |
| PIM Rating | N/A |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.35:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
