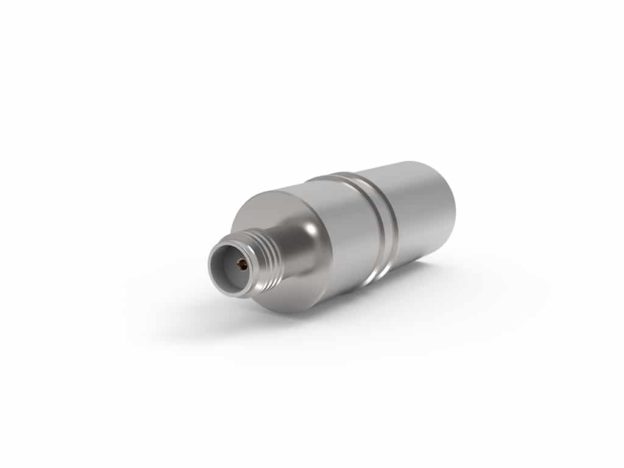

TC-400-SF-X, разъем SMA-Female (гнездо), прямой, пайка, обжимной, для коаксиального кабеля LMR 400
Type SMA, female (jack), straight, TC style connector for FBT-400, LMR-400, TCOM-400, and T-RAD-400-FR type cables.
В наличии (может быть предзаказано)
The TC-400-SF-X is an excellent choice for stranded center conductors thanks to its solder-pin connector. The SMA connector is a low-profile, high-performance, threaded coaxial RF connection.
| Вес | 0.022 кг |
|---|---|
| Габариты | 2.97 × 1.27 × 1.27 см |
| Brand | Times Microwave System |
| Interface | SMA |
| Gender | female (jack) |
| Orientation | straight |
| PIM Rating | N/A |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.30:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
