- Feed mountable
- Input and Forward power detection.
- Monitoring and Control through Serial and Ethernet ports.
- Fault identification and alarm generation.
- LED status and alarm indicator.
- Auto gain control throughout operating temperature.
- Wide DC input ranging 21 to 60Vdc.
- Wide operating temperature -40°C to +60°C.
- IP67 Weatherproof.
- RoHS Compliant.

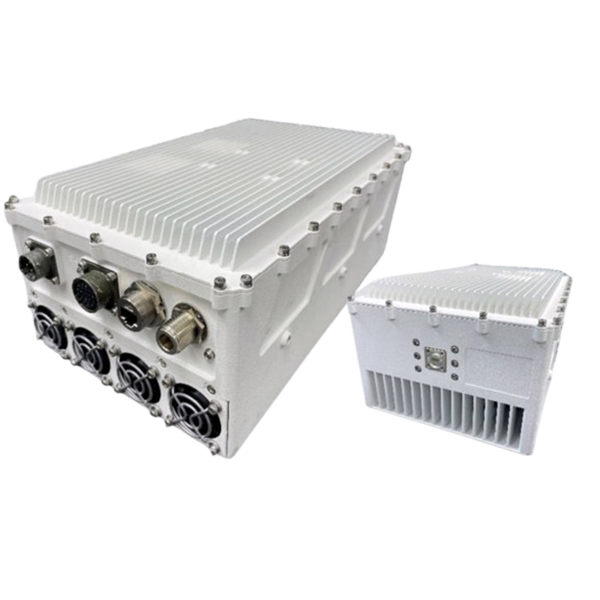

Agilis 40W Ka Band (Buc) Blok-Up Dönüştürücü, ALB220 Serisi
Engineered for direct integration with the feedhorn, this unit is perfectly suited for mobile and satellite uplink systems. Its advanced thermal architecture delivers outstanding power efficiency, ensuring durability and dependable performance even in demanding outdoor conditions. Designed for hassle-free installation, it supports seamless 1+1 redundancy operation via an external control unit.
Quality Assurance
Every unit undergoes comprehensive and rigorous quality inspections, complemented by a structured Environmental Stress Screening (ESS) process to guarantee reliable performance in extreme outdoor conditions. Each device is also tested for water ingress to ensure complete sealing integrity.
Reliability
Proven in real-world, demanding environments, Agilis Outdoor Units (ODUs) are built to operate reliably in temperatures from -40°C to +60°C and in conditions of 100% humidity.
RF Specifications
| Parameter | Specification |
|---|---|
| Transmit Frequency Band | |
| Band 1 | 27.5 – 28.5 GHz |
| Band 2 | 28.25 – 29.25 GHz |
| Band 3 | 29.0 – 30.0 GHz |
| IF Input Frequency | 950 – 1950 MHz |
| LO Frequency (Switchable) | |
| Band 1 | 26.55 GHz |
| Band 2 | 27.30 GHz |
| Band 3 | 28.05 GHz |
| Output Power | |
| Psat | 46.0 dBm min (<55°C) 45.0 dBm min (≥55°C) 44.0 dBm (25W) |
| Conversion Gain | 73 dB min @ Plinear |
| Small Signal Gain | 77 dB min |
| Gain Flatness | |
| Within Band | 4.0 dB p-p max |
| Over 250 MHz | 2.5 dB p-p max |
| Over 100 MHz | 1.5 dB p-p max |
| Over 40 MHz | 1.0 dB p-p max |
| Gain Variation | ±1.5 dB at any constant frequency over operating temperature |
| Spectral Regrowth | |
| Plin 1 (Commercial) | -25 dBc max @ 2 dB BO, 8PSK at 1.5× SR |
| Plin 2 (MIL-STD-188-164C) | -30 dBc max @ 3 dB BO, QPSK at 1.5× SR and OQPSK at 1.0× SR |
| Intermodulation | -25 dBc max @ 3 dB BO with 2-carrier combined power (MIL-STD-188-164C) |
| Spurious | -60 dBc typ |
| Phase Noise | |
| @100 kHz offset | -95 dBc/Hz max |
| @10 kHz offset | -90 dBc/Hz max |
| @1 kHz offset | -80 dBc/Hz max |
| VSWR | |
| Input | 1.5:1 max |
| Output | 1.25:1 max |
DC Power Supply
| Parameter | Specification |
|---|---|
| Prime Power | 21 to 60 VDC |
| Power Consumption | 250 VA max @ Psat 200 VA typ @ Plinear |
Interface
| Port | Type |
|---|---|
| IF Input | N-Type Female, 50Ω |
| RF Output | WR28 Grooved |
Reference
| Parameter | Specification |
|---|---|
| Source | External |
| Frequency | 10 MHz |
| Power Level | -5 dBm to +5 dBm |
| Phase Noise | |
| @100 kHz offset | -160 dBc/Hz max |
| @10 kHz offset | -155 dBc/Hz max |
| @1 kHz offset | -150 dBc/Hz max |
Monitor & Control
| Function | Description |
|---|---|
| Monitoring | – BUC Temperature – IF Input Power – RF Forward Power |
| Alarms | – Status Alarm with LED Indicator – LO Unlock Alarm |
| Control | – Gain adjustable up to 20 dB in 0.25 dB steps – RF Output Mute |
| Interface & Protocols | – Serial: RS232 / RS485 / RS422 – Ethernet: SNMP & HTTP |
| Redundancy | – Redundancy-Ready (requires external controller unit) |
| OpenBMIP Support | – Yes |
| Protection Features | – Over & Under Voltage – Reverse Voltage – Over Current – In-rush Current |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +60°C |
| Relative Humidity | Up to 100% |
| Weatherproof Rating | IP67 |
| Operating Environment | – ETSI EN 300 019-2-4 Class T4.1 (Land) – ETSI EN 300 019-2-6 Class T6.1 (Maritime) |
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Dimensions (L×W×H) | 320 × 180 × 128 mm |
| 12.6” × 7.1” × 5.0” | |
| Weight | 6.3 kg / 13.9 lbs |
