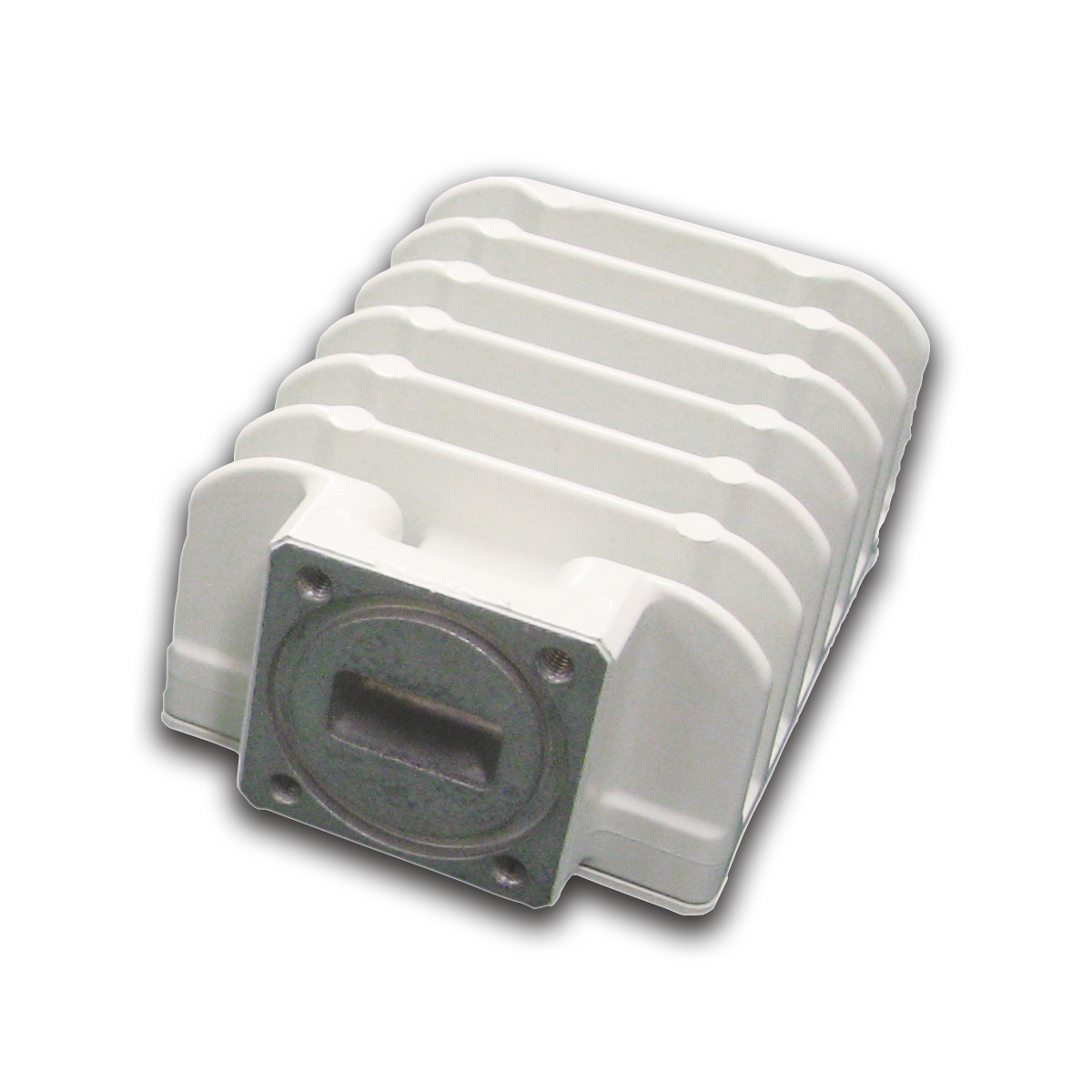

Alt Ku-bant 2W BUC NJT8315, LO Frekansı: 11.8 GHz, IF Frekansı: 950 ila 1,450 MHz
Stokta
| Parameter | Specifications |
|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) |
| IF Input Interface | – Coaxial Connector, N-type Female (50 Ω) |
| – Coaxial Connector, F-type Female (75 Ω) | |
| RF Frequency | – RF Frequency: 12.75 to 13.25 GHz |
| IF Frequency | – IF Frequency: 950 to 1,450 MHz |
| LO Frequency | – LO Frequency: 11.8 GHz |
| P1dB Output Power | – P1dB Output Power: +33 dBm min. over temperature |
| (@ 1dB G.C.P.) | |
| ACPR | – ACPR: -26 dBc max. @ Pout = +32 dBm |
| Linear Gain | – Linear Gain: 59 dB nominal, 53 dB min. |
| Input Power Voltage Requirement | – Input Power Voltage Requirement: +24 VDC (+12 to |
| +30 VDC) | |
| Power Consumption @ P1dB | – Power Consumption @ P1dB: 18 W typical, 22 W max. |
| Operating Temperature Range | – Operating Temperature Range: -40 to +60 ℃ |
| Waterproof / Dustproof (IP-code) | – Waterproof / Dustproof (IP-code): IP67 |
| Weight | – Weight: 350 g |
| Dimensions | – Dimensions (LxWxH): 91.55 x 68 x 42.5 mm |
| (w/o Interfaces & Screws) |
Frequency Organization
| Parameter | Specifications |
|---|---|
| RF Frequency | 12.75 to 13.25 GHz |
| IF Frequency | 950 to 1,450 MHz |
| LO Frequency | 11.8 GHz |
High Efficiency & Low Distortion Output Power
| Parameter | Specifications |
|---|---|
| P1dB | +33 dBm min. over temperature |
| ACPR | -26 dBc @ Pout = +32 dBm |
| Power Consumption | 18 W |
Small Size & Light Weight
| Parameter | Specifications |
|---|---|
| Weight | 350 g |
Others
- RoHS Compliance
Series Line-up
| Model No. | RF Frequency | Output Power | IF Connector |
|---|---|---|---|
| NJT8315LN | 12.75 to 13.25 GHz | +33 dBm min. @ P1dB (2W) | N-type (50Ω) |
| NJT8315LF | 12.75 to 13.25 GHz | +33 dBm min. @ P1dB (2W) | F-type (75Ω) |
