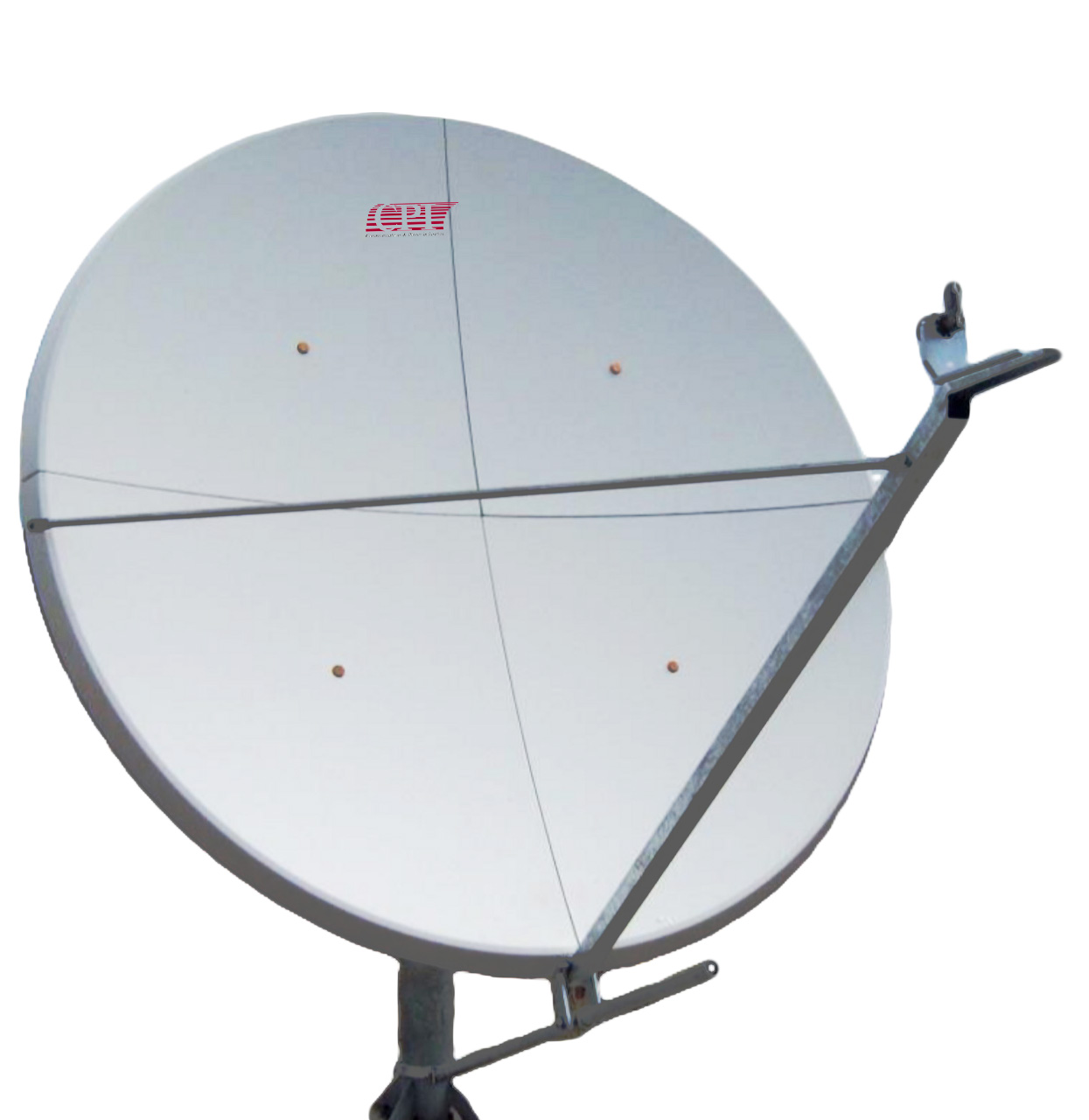

CPI 2.4 Metre C-Band Lineer Alıcı/Gönderici Yüksek Rüzgar Anteni, Seri 2244
This remarkable antenna is designed to withstand the challenges of high-wind environments, making it a robust and reliable solution for various communication applications.
C-Band Linear Antenna Specifications
| Characteristic | C-Band Linear |
|---|---|
| Antenna Size | 2.4 M (96.00 in.) |
| Operating Frequency (GHz) | Receive: 3.625 – 4.20 GHz
Transmit: 5.85 – 6.425 GHz |
| Antenna Gain at Midband (± .2 dB) | Receive: 38.20 dBi
Transmit: 42.20 dBi |
| VSWR | 1.3:1 max |
| Pattern Beamwidth -3dB (in degrees at midband) | Rx: 2.20°
Tx: 1.40° |
| Sidelobe Envelope, Co-Pol (dBi) | 100λ/D ≤ θ ≤ 20°: 29 – 25 Logθ dBi
20° < θ ≤ 26.3°: -3.5 dBi 26.3° < θ≤ 48°: 32 – 25 Log θ dBi θ < 48°: -10 dBi (averaged) |
| Antenna Noise Temperature | 5° Elevation: 55 K
10° Elevation: 47 K 20° Elevation: 43 K 40° Elevation: 43 K |
| Cross Polarization Isolation | On Axis: > 30 dB
Within 1.0 dB Beamwidth: > 27 dB |
| Output Waveguide Interface | Rx: CPR 229
Tx: CPR 137 or Type N |
