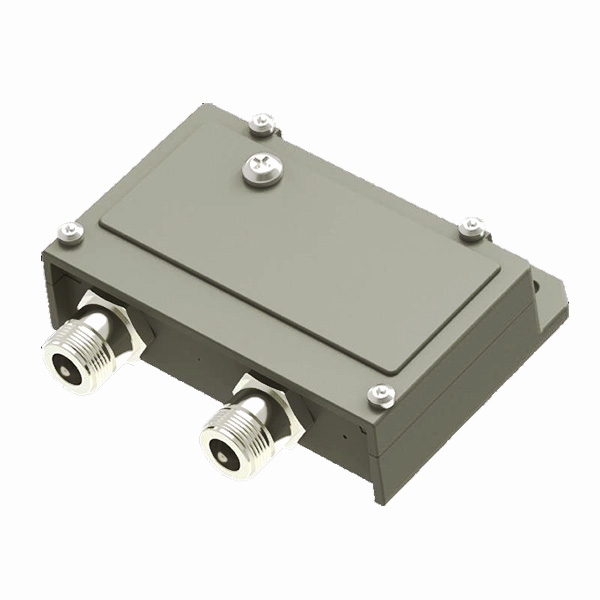

Name: SMW Kazanç Ayarlanabilir Hat Yükselteçleri, Eğim 18-25 dB, Düz 24 dB kazanç
SKU: 5607
Availability: InStock

SMW Kazanç Ayarlanabilir Hat Yükselteçleri, Eğim 18-25 dB, Düz 24 dB kazanç

Gain Adjustable: Provides flexible signal optimization
High IP3 and P1dB: Ensures robust performance near LNB
22 kHz and 10 MHz Bypass: Compatible with signal protocols and power requirements
Compact & Lightweight: Easy to install and space-efficient
IP67 Rated: Fully protected against dust and water ingress
Wide Operating Temperature Range: Reliable performance in extreme environments
Equivalent to ILA 18-24: Maintains compatibility with previous models
Positive Slope Model: Compensates for cable tilt, enhancing signal clarity

Our adjustable low-power line amplifiers offer exceptionally high IP3 and P1dB, enabling seamless installation directly after or near the LNB. They are available with F-type, N-type, or SMA connectors. Standard features include DC, 22 kHz, and 10 MHz bypass, ensuring flexible integration with various systems. Optional configurations are available with separate DC power input via connector (F, N, or SMA) or a pigtail cable.

Technical Specifications	Model: ILA 18-25 dB, Slope	Model: ILA 24 dB, Flat
Gain	18 dB @ 950 MHz, 25 dB @ 2150 MHz, adjustable -10 dB	24 dB @ 950-2150 MHz, adjustable -10 dB
Gain Flatness (30 MHz)	±0.2 dB max.	±0.2 dB max.
Gain Flatness (Full Band)	Slope 7 dB typ., ±1 dB max.	Flat, ±1 dB max.
Gain Adjustment	Use a Philips #2 screwdriver to remove cover screw, then a 2 mm flat screwdriver to adjust gain
Frequency Range	950-2150 MHz	950-2150 MHz
Bypass	Standard 10 MHz and 22 kHz (22 kHz n/a with DC block IN or OUT)
Output P1dB	+16 dBm typ.	+16 dBm typ.
Output IP3	+32 dBm typ.	+32 dBm typ.
Input IP3	Min. +7 dBm @ max. gain, min. +18 dBm @ min. gain
Noise Figure / Noise Temperature	Max. 8 dB / 1540 K @ spec. max. gain, max. 18 dB / 18008 K @ spec. min. gain
Return Loss (L-Band In/Out)	N- and SMA-connector: min. 10 dB, typ. 15 dB; F connector: min. 8 dB, typ. 13 dB
Connectors	F-type 75Ω / N-type 50Ω / SMA-type 50Ω
DC Input	+12 to +26V, 85 mA max., DC bypass max. 1A
Power Consumption	70 mA @ 12 V, 40 mA @ 26 V typ.
Material & Finish	Die-cast aluminium, powder coated
Temperature Range	-40 to +80ºC
Ingress Protection Code	IP 67
Dimensions	96 x 28 x 89 mm (with N connectors); for drawing, see www.smw.se
Weight	208 g (F & SMA), 250 g (N)
Option	Separate DC input (via F/N/SMA-connector, or cable) with integrated DC-block(s)
