1.2m Receive-Only Antenna System, Ku Band/C Band, Global Skyware
- Powder Paint Process
- One-piece thermoset-molded offset reflector.
- Factory pre-assembled Az/El mount for ease of installation.
- Available with a wide variety of C-band or Ku-band feeds for flexibility.
The Skyware Global 1.2 m Type 120 Offset Antenna is a robust commercial-grade product designed for demanding applications. The reflector is thermoset-molded, ensuring strength and surface accuracy. The rear of the reflector features a network of support ribs, enhancing both the antenna’s strength and maintaining its crucial parabolic shape.

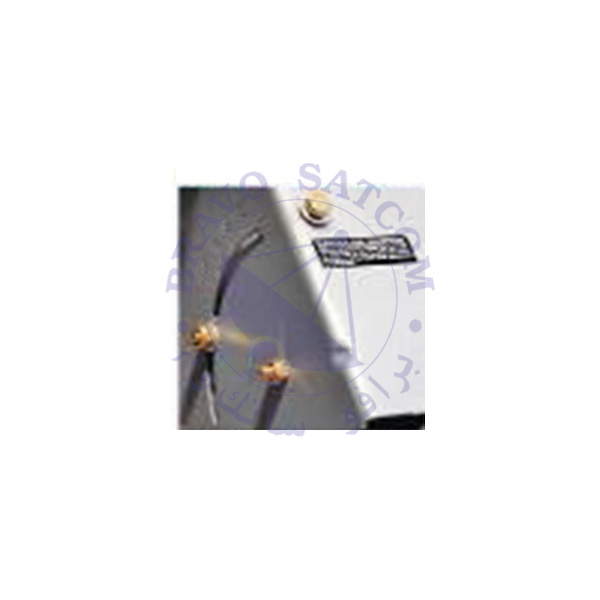

Constructed from heavy-gauge steel, the Az/El mount provides a sturdy support for the reflector. This mount secures the antenna to any 73-76 mm (2.88”-3.00”) O.D. mast, preventing slippage, especially in high winds.
| Parameter | C-Band Specifications | Ku-Band Specifications |
|---|---|---|
| Effective Aperture | 1.2 m (48 in) | 1.2 m (48 in) |
| Operating Frequency | 3.4 – 4.8 GHz | 10.95 – 12.75 GHz |
| Polarization | Linear (Circular Optional) | Linear (Circular Optional) |
| Gain @ 3.95/11.95 GHz | 32.0 dBi | 42.0 dBi |
| 3 dB Beamwidth | 4.4˚ | 1.6˚ |
| Antenna Noise Temperature | @ 30˚ Elevation: 32˚ K | @ 30˚ Elevation: 24˚ K |
| VSWR* | 1.3:1 | 1.4:1 |
| Antenna Cross Polarization | 30 dB on Axis (Linear) | 30 dB on Axis (Linear) |
| Feed Interface | CPR-229 | WR75 Flat Flange |
MECHANICAL PERFORMANCE TABLE
| Parameter | Specifications |
|---|---|
| Reflector Material | Glass Fiber Reinforced Polyester |
| Antenna Optics | One-Piece Offset Feed Prime Focus |
| Mount Type | Elevation over Azimuth |
| Elevation Adjustment Range | 10˚ – 70˚ Continuous Fine Adjustment |
| Azimuth Adjustment Range | 360˚ Continuous |
| Mast Pipe Interface | 73 – 76 mm (2.88 in – 3.00 in) Diameter |
| Wind Loading | Operational: 80 km/h (50 mph) Survival: 200 km/h (125 mph) |
| Temperature | -50˚C to 80˚C |
| Humidity | 0 to 100% (Condensing) |
| Atmosphere | Standard Hardware Meets 500 Hour Salt Spray Test Requirements (ASTM B-117) |
| Solar Radiation | 360 BTU/h/ft2 |
| Shock and Vibration | As Encountered During Shipping and Handling |
