Parameter | Specifications |
---|---|

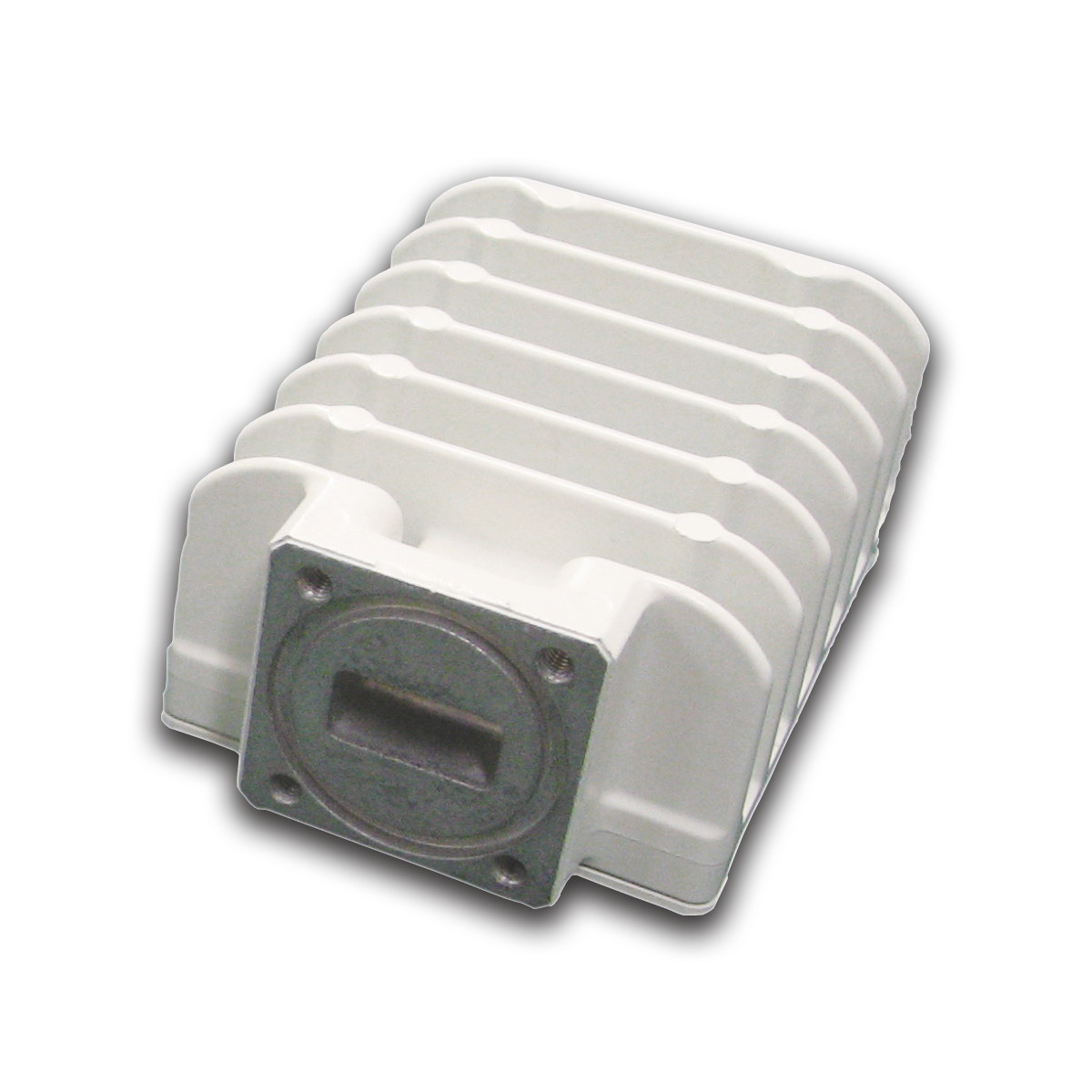

RF Output Interface | Waveguide, WR75 (with Groove) |
IF Input Interface | – Coaxial Connector, N-type Female (50 Ω) |
– Coaxial Connector, F-type Female (75 Ω) | |
RF Frequency | – RF Frequency: 13.75 to 14.5 GHz |
IF Frequency | – IF Frequency: 950 to 1,700 MHz |
LO Frequency | – LO Frequency: 12.8 GHz |
P1dB Output Power | – P1dB Output Power: +31 dBm min. over temperature |
(@ 1dB G.C.P.) | |
ACPR | – ACPR: -26 dBc typ. @ Pout = +31 dBm |
Linear Gain | – Linear Gain: 55 dB typ., 48 dB min. |
Input Power Voltage Requirement | – Input Power Voltage Requirement: +24 VDC (+12 to |
+30 VDC) | |
Power Consumption @ P1dB | – Power Consumption @ P1dB: 12 W typical, 14 W max. |
Operating Temperature Range | – Operating Temperature Range: -40 to +55 ℃ |
Waterproof / Dustproof (IP-code) | – Waterproof / Dustproof (IP-code): IP67 |
Weight | – Weight: 350 g |
Dimensions | – Dimensions (LxWxH): 91.55 x 68 x 42.5 mm |
(w/o Interfaces & Screws) |
Description
- RoHS Compliance
Features
- Frequency Organization
Parameter | Specifications |
---|---|
RF Frequency | 13.75 to 14.5 GHz |
IF Frequency | 950 to 1,700 MHz |
LO Frequency | 12.8 GHz |
High Efficiency & Low Distortion Output Power
Parameter | Specifications |
---|---|
P1dB | +31 dBm min. over temperature |
ACPR | -26 dBc @ Pout = +31 dBm |
Power Consumption | 12 W |
Small Size & Light Weight
Parameter | Specifications |
---|---|
Weight | 350 g |
- Series Line-up
Model No. | RF Frequency | Output Power | IF Connector |
---|---|---|---|
NJT8301UN | 13.75 to 14.5 GHz | +31 dBm min. @ P1dB (1.5W) | N-type (50Ω) |
NJT8301UF | 13.75 to 14.5 GHz | +31 dBm min. @ P1dB (1.5W) | F-type (75Ω) |
